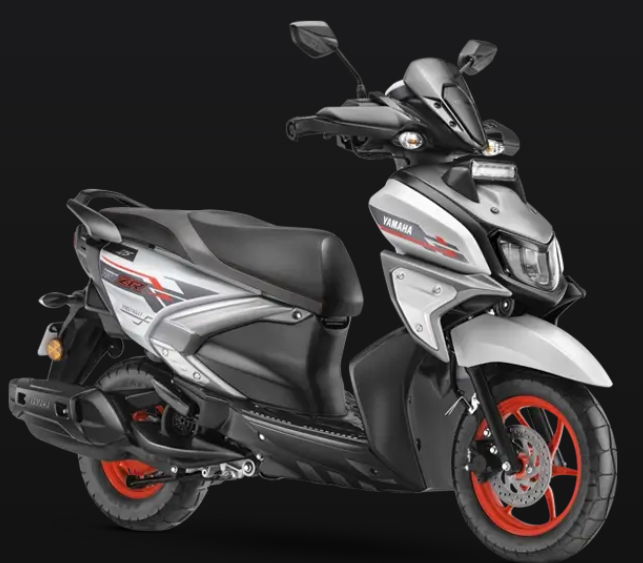

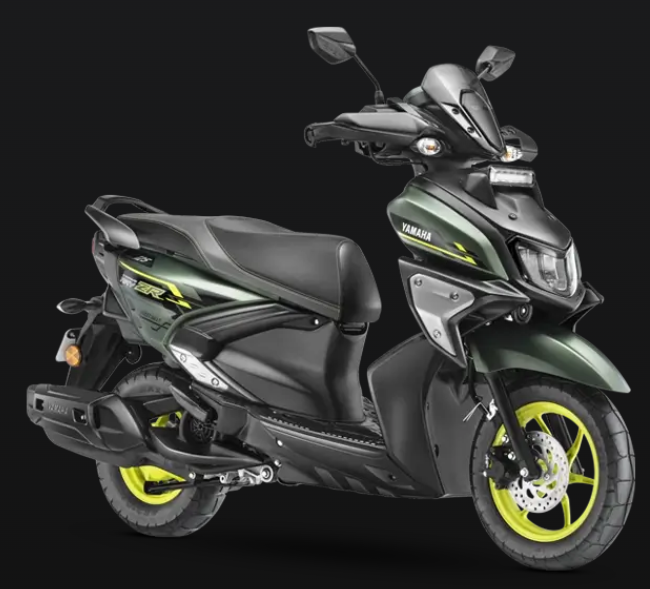

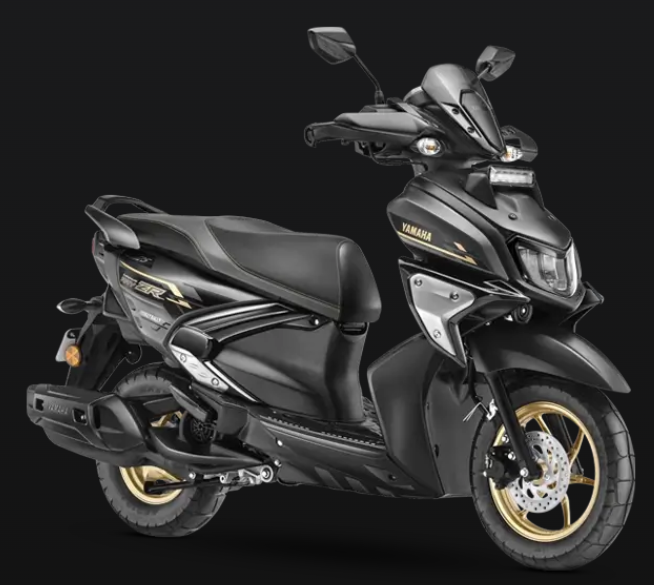

Yamaha Ray ZR Street Rally 125 Fi Hybrid – Sporty 125cc Scooter with Hybrid Power Assist and Bluetooth Connectivity
Engine & Transmission
|
Specification |
Details |
|
Engine Type |
Air-cooled, 4-stroke, SOHC, 2-valve |
|
Displacement |
125 cc |
|
Bore & Stroke |
52.4 mm × 57.9 mm |
|
Compression Ratio |
10.2:1 |
|
Maximum Power |
8.05 bhp @ 6,500 rpm |
|
Maximum Torque |
10.3 Nm @ 5,000 rpm |
|
Fuel System |
Fuel Injection |
|
Transmission |
V-Belt Automatic |
|
Clutch Type |
Dry, Centrifugal |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
1,880 mm |
|
Overall Width |
750 mm |
|
Overall Height |
1,190 mm |
|
Wheelbase |
1,280 mm |
|
Seat Height |
785 mm |
|
Ground Clearance |
145 mm |
|
Kerb Weight |
99 kg |
|
Fuel Tank Capacity |
5.2 liters |
Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
Lightweight Frame |
|
Front Suspension |
Telescopic Fork |
|
Rear Suspension |
Unit Swing |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
190 mm Disc with Unified Braking System (UBS) |
|
Rear Brake |
Drum |
|
Front Tyre |
90/90-12 Tubeless |
|
Rear Tyre |
110/90-10 Tubeless |
Electricals
|
Specification |
Details |
|
Headlight |
LED |
|
Tail Light |
Halogen |
|
Turn Signal Lamp |
Halogen |
|
Battery |
12V, 5.0 Ah |
Features
|
Specification |
Details |
|
Hybrid Power Assist |
Yes |
|
Smart Motor Generator (SMG) System |
Yes |
|
Automatic Stop & Start System |
Yes |
|
Side Stand Engine Cut-Off Switch |
Yes |
|
Yamaha Motorcycle Connect X (Bluetooth) |
Yes |
|
Digital Instrument Cluster |
Yes |
|
21-Liter Under-Seat Storage |
Yes |
|
USB Charging Port |
Optional |
|
Pass Switch |
Yes |
|
Multi-Function Key with Seat Opener |
Yes |
|
Brush Guard |
Yes |
|
Block Pattern Tyres |
Yes |
Available Colors
|
Specification |
Details |
|
Color 1 |
Matte Copper |
|
Color 2 |
Matte Black |
|
Color 3 |
Light Grey Vermillion |
