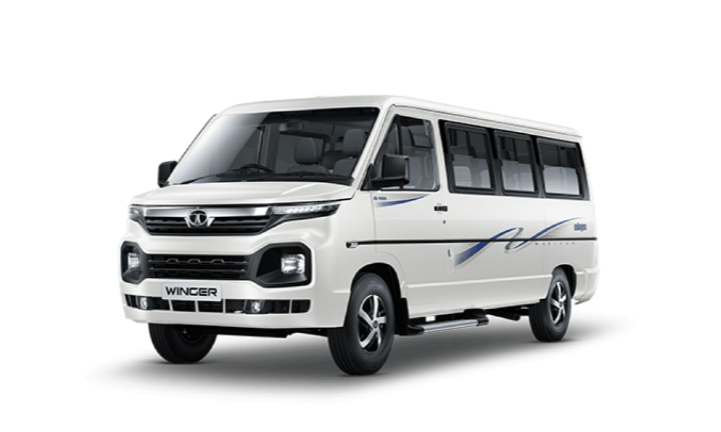

Tata Winger RDE 9S 32WB PAS FR AC – Tata Motors Tourist Van
Specifications
|
Specification |
Details |
|
Engine Make |
TATA Motors Limited |
|
Engine Model |
VARICOR 11 |
|
Engine Type |
Compression Ignition Diesel Engine |
|
No. of Cylinders |
4 |
|
Displacement, cc |
2179 |
|
Max. Engine Output |
74.8 kW @ 3750+/-rpm |
|
Max. Torque |
200 Nm @ 1000 to 3500 rpm |
|
Fuel Type |
Diesel |
|
Clutch Type |
Dry, Single Plate |
|
Gear Box Type |
Synchromesh |
|
No. of Gears |
5 Forward + 1 Reverse |
|
Steering Type |
Rack & Pinion Type / Power Steering |
|
Suspension, Front |
McPherson Strut with coil spring |
|
Suspension, Rear |
Parabolic leaf spring |
|
Spring, Front |
Coil Spring |
|
Spring, Rear |
Leaf Spring |
|
Anti-Roll Bar, Front |
Yes (Optional) |
|
Anti-Roll Bar, Rear |
Yes (Optional) |
|
Shock Absorbers, Front |
McPherson Strut; 2 Nos |
|
Shock Absorbers, Rear |
Double Acting Hydraulic Telescopic Shock Absorbers; 2 Nos |
|
Service Brake |
Vacuum Assisted Hydraulic brakes Dual Circuit with Tandem Master Cylinder acting on all four wheels with Automatic wear adjuster at rear |
|
ABS Fitted |
Yes |
|
Front Brake |
Disc Brake |
|
Rear Brake |
Drum Brake |
|
Tyre Size, Front |
LT 195 R15 8PR |
|
Tyre Size, Rear |
LT 195 R15 8PR |
|
System Voltage |
12 Volts |
|
Battery Rating |
80Ah / 75Ah / 78Ah / 65Ah |
|
Fuel Tank Capacity, L |
60 |
|
Wheelbase, mm |
3200 |
|
Overall Width, mm |
1905 |
|
Overall Length, mm |
4940 |
|
Overall Height, mm |
2110 |
|
Min. Ground Clearance, mm |
180 |
|
Max GVW, kg |
3080 |
|
Seating Capacity |
9+D |
|
Application |
Tourist vans |
Components & Features
|
Specification |
Details |
|
Body Design Feature |

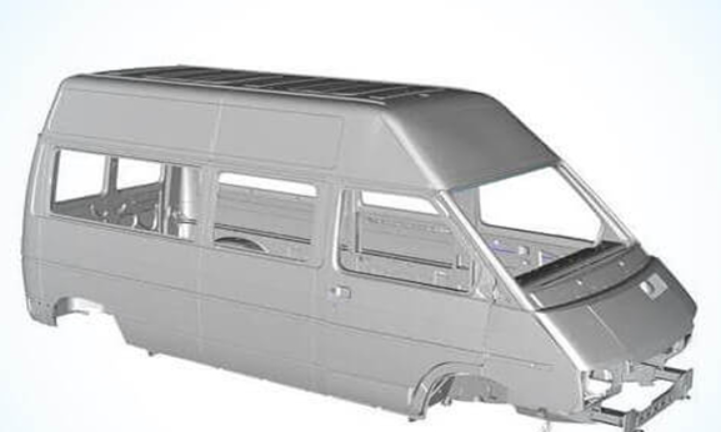

Monocoque construction ensures low Noise, Vibration and Harshness (NVH) levels and reduced transmission losses |
|
Seating Feature |
Improved driver seat |
|
Access Feature |
Side step entry |
|
Warranty Feature |
3 years / 3 lakh kms warranty (whichever is earlier) |
|
Comfort Feature |
Air conditioning (AC) unit |
|
Comfort Feature |
Individual AC vents |
|
Seating Feature |
Push back seats |
|
Interior Feature |
1900 mm internal roof height |
|
Convenience Feature |
Multiple USB charging points |
|
Storage Feature |
Extra luggage space |
|
Safety Feature |
ABS with EBD; Seat belts for all passengers; Reinforced body structure |
|
Exterior Feature |
Split grill with matte black finish for improved airflow and radiator performance |
|
Efficiency Feature |
Eco switch for efficient engine management |
|
Transmission Feature |
Gear shift advisor |
|
Body Design Feature |
Superior body design in collaboration with ACGL, prioritizing structural integrity and aesthetics |
|
Service Interval Feature |
40,000 km |
