Specification

Details

Engine Make

TATA Motors Limited

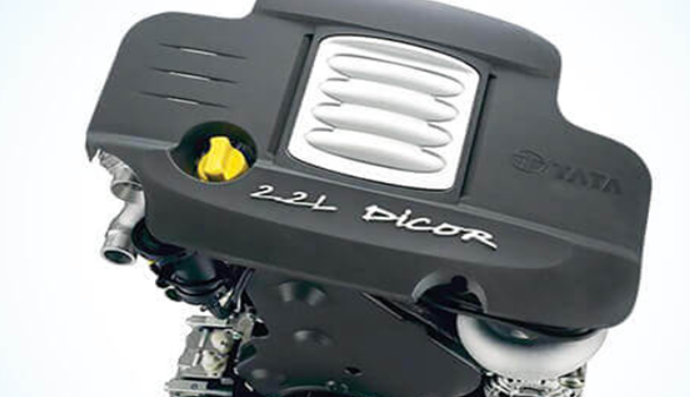

Engine Model

VARICOR 11

Engine Type

Compression Ignition Diesel Engine

No. of Cylinders

4

Displacement, cc

2179

Max. Engine Output

74.8 kW @ 3750+/-rpm

Max. Torque

200 Nm @ 1000 to 3500 rpm

Fuel Type

Diesel

Clutch Type

Dry, Single Plate

Gear Box Type

Synchromesh

No. of Gears

5 Forward + 1 Reverse

Steering Type

Rack & Pinion Type / Power Steering

Suspension, Front

McPherson Strut with coil spring

Suspension, Rear

Parabolic leaf spring

Spring, Front

Coil Spring

Spring, Rear

Leaf Spring

Anti-Roll Bar, Front

Yes (Optional)

Anti-Roll Bar, Rear

Yes (Optional)

Shock Absorbers, Front

McPherson Strut; 2 Nos

Shock Absorbers, Rear

Double Acting Hydraulic Telescopic Shock Absorbers; 2 Nos

Service Brake

Vacuum Assisted Hydraulic brakes Dual Circuit with Tandem Master Cylinder acting on all four wheels with Automatic wear adjuster at rear

ABS Fitted

Yes

Front Brake

Disc Brake

Rear Brake

Drum Brake

Tyre Size, Front

LT 195 R15 8PR

Tyre Size, Rear

LT 195 R15 8PR

System Voltage

12 Volts

Battery Rating

80Ah / 75Ah / 78Ah / 65Ah

Fuel Tank Capacity, L

60

Wheelbase, mm

3488

Overall Width, mm

1905

Overall Length, mm

5478

Overall Height, mm

2670

Min. Ground Clearance, mm

180

Seating Capacity

17+A+D

Application

School vans

Specification

Details

Comfort Feature

Air conditioning (AC) unit

Safety Feature

ABS; Emergency exit; Fire extinguisher; Reinforced body structure

Exterior Feature

Split grill with matte black finish for improved airflow and radiator performance

Efficiency Feature

Eco switch for efficient engine management

Transmission Feature

Gear shift advisor

Safety Feature

First-aid kit

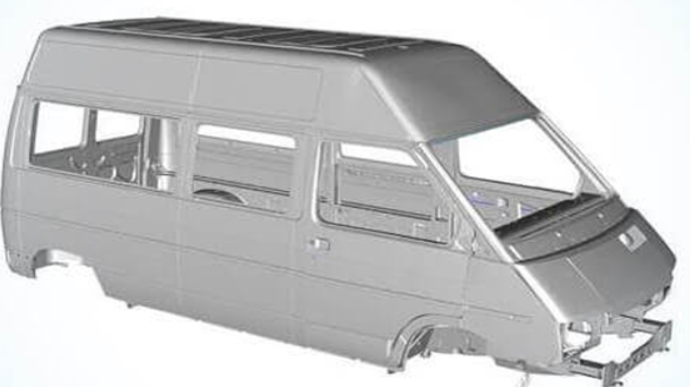

Body Design Feature

Superior body design in collaboration with ACGL, prioritizing structural integrity and aesthetics

Service Interval Feature

40,000 km
