Specification

Details

Chassis Platform

FL AMB-B 3200 7+P BS6 Phase 2

Wheelbase, mm

3200

Engine Make

TATA Motors Limited

Engine Model

VARICOR 11

Engine Type

Compression Ignition Diesel Engine

No. of Cylinders

4

Displacement, CC

2179

Engine Power, kW@RPM

73.5 kW @ 3750 r/min

Engine Torque, Nm@RPM

200 Nm @ 1000-3500 r/min

Fuel Type

Diesel

Clutch Type

Dry, Single Plate

Gearbox Type

Synchromesh

No. of Gears

5 Forward + 1 Reverse

Steering Type

Rack & Pinion, Power Steering

Front Suspension

McPherson Strut with Coil Spring

Rear Suspension

Parabolic Leaf Spring

Front Spring

Coil Spring

Rear Spring

Leaf Spring

Anti-Roll Bar (Front)

Yes

Anti-Roll Bar (Rear)

Yes

Shock Absorbers (Front)

McPherson Strut, 2 Nos

Shock Absorbers (Rear)

Double Acting Hydraulic Telescopic Shock Absorbers, 2 Nos

Service Brake

Vacuum Assisted Hydraulic Brakes Dual Circuit with Tandem Master Cylinder, Automatic Wear Adjuster at Rear

ABS

Yes

Front Brake

Disc Brake

Rear Brake

Drum Brake

Tyre Size (Front)

195 R15 LT

Tyre Size (Rear)

195 R15 LT

System Voltage, V

12

Battery Rating, Ah

80

Additional Battery

NA

Fuel Tank Capacity, L

60

Max GVW, kg

3033

Overall Width, mm

1950

Overall Height, mm

2670

Min. Ground Clearance, mm

185

Seating Capacity

7+P

Application

Ambulance Vans

Feature

Details

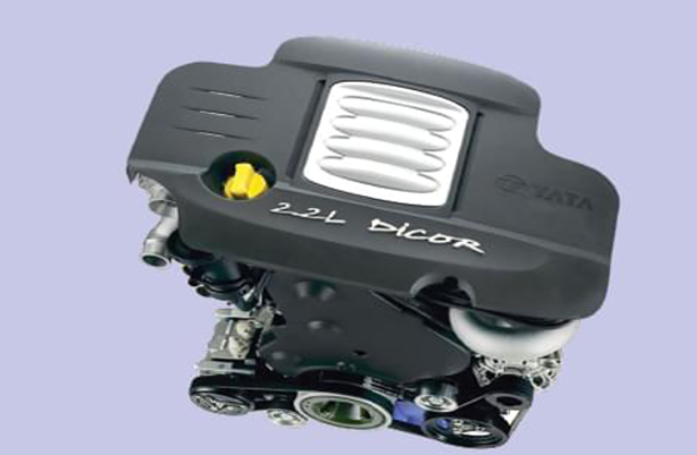

Feature: Engine

2.2 L DICOR Engine

Feature: Transaxle

Transaxle

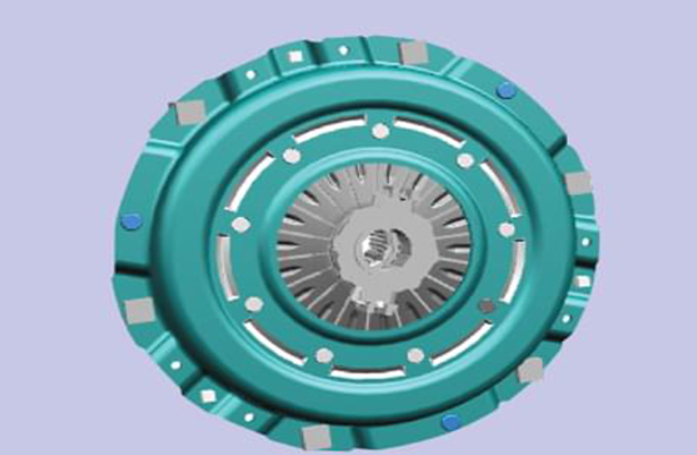

Feature: Clutch

Dry, Single Plate

Feature: Brakes

Vacuum Assisted Hydraulic Brakes Dual Circuit with Tandem Master Cylinder, Automatic Wear Adjuster at Rear; ABS; Disc (Front), Drum (Rear)

Feature: Suspension

Front: McPherson Strut with Coil Spring; Rear: Parabolic Leaf Spring; Anti-Roll Bar (Front and Rear); Shock Absorbers (Front: McPherson Strut, 2 Nos; Rear: Double Acting Hydraulic Telescopic, 2 Nos)
