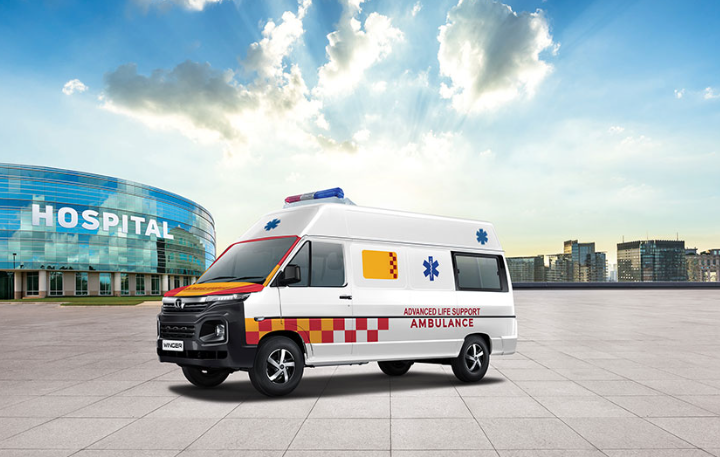

Winger FL AMB 32SH 10 PLUS P BS6 Phase 2 – Tata Motors Ambulance Van
Specifications
|
Specification |
Details |
|
Chassis Platform |
FL AMB 32SH 10+P BS6 Phase 2 |
|
Wheelbase, mm |
3200 |
|
Engine Make |
TATA Motors Limited |
|
Engine Model |
VARICOR 11 |
|
Engine Type |
Compression Ignition Diesel Engine |
|
Emission |
BS6 |
|
Engine Capacity |
2.2 Litre DICOR |
|
Engine Power, kW@RPM |
73.5 kW @ 3750 r/min |
|
Engine Torque, Nm@RPM |
200 Nm @ 1000-3500 r/min |
|
Fuel Type |
Diesel |
|
Gearbox |
5 Forward + 1 Reverse, Manual |
|
Clutch |
215 mm Single-Plate, Dry Friction, Semi-Hydraulic Actuation |
|
No. of Gears |
5 |
|
Steering |
Power Assisted Rack & Pinion |
|
Front Brakes |
Disc Brakes with Twin Pot Calliper |
|
Rear Brakes |
Drum Brakes |
|
Front Suspension |
McPherson Struts with Coil Spring |
|
Rear Suspension |
Parabolic Leaf Springs, Hydraulic Telescopic Shock Absorber |
|
Wheelbase, mm |
3200 |
|
Length, mm |
4940 |
|
Width, mm |
1950 |
|
Height, mm |
2670 |
|
Ground Clearance, mm |
185 |
|
GVW, kg |
3033 |
|
Tyre |
195 R15 LT |
|
Battery |
12 V; 80 Ah |
|
Additional Battery |
NA |
|
Anti-Roll Bar |
In Front and Rear |
|
Seating Capacity |
10+P |
|
Application |
Ambulance Vans |
Components & Features
|
Feature |
Details |
|
Feature: Engine |
2.2 L DICOR Engine |
|
Feature: Transaxle |
Transaxle |
|
Feature: Clutch |
215 mm Single-Plate, Dry Friction, Semi-Hydraulic Actuation |
|
Feature: Brakes |
Front: Disc Brakes with Twin Pot Calliper; Rear: Drum Brakes |
|
Feature: Suspension |
Front: McPherson Struts with Coil Spring; Rear: Parabolic Leaf Springs, Hydraulic Telescopic Shock Absorber; Anti-Roll Bar (Front and Rear) |
