Specification

Details

Chassis Platform

FL 35 HR PAS 15S SHL BS6 Phase 2

Wheelbase, mm

3488

Engine Make

TATA Motors Limited

Engine Model

VARICOR 11

Engine Type

Compression Ignition Diesel Engine

No. of Cylinders

4

Displacement, CC

2179

Engine Power, kW@RPM

74.8 kW @ 3750+/-rpm

Engine Torque, Nm@RPM

200 Nm @ 1000-3500 rpm

Fuel Type

Diesel

Clutch Type

Dry, Single Plate

Gearbox Type

Synchromesh

No. of Gears

5 Forward + 1 Reverse

Steering Type

Rack & Pinion, Power Steering

Front Suspension

McPherson Strut with Coil Spring

Rear Suspension

Parabolic Leaf Spring

Front Spring

Coil Spring

Rear Spring

Leaf Spring

Anti-Roll Bar (Front)

Yes (Optional)

Anti-Roll Bar (Rear)

Yes (Optional)

Shock Absorbers (Front)

McPherson Strut, 2 Nos

Shock Absorbers (Rear)

Double Acting Hydraulic Telescopic Shock Absorbers, 2 Nos

Service Brake

Vacuum Assisted Hydraulic Brakes Dual Circuit with Tandem Master Cylinder, Automatic Wear Adjuster at Rear

ABS

Yes

Front Brake

Disc Brake

Rear Brake

Drum Brake

Tyre Size (Front)

LT 195 R15 8PR

Tyre Size (Rear)

LT 195 R15 8PR

System Voltage, V

12

Battery Rating, Ah

80Ah / 75Ah / 78Ah / 65Ah

Fuel Tank Capacity, L

60

Overall Width, mm

1905

Overall Length, mm

5478

Overall Height, mm

2670

Min. Ground Clearance, mm

180

Seating Capacity

15+D

Application

Tourist Vans

Feature

Details

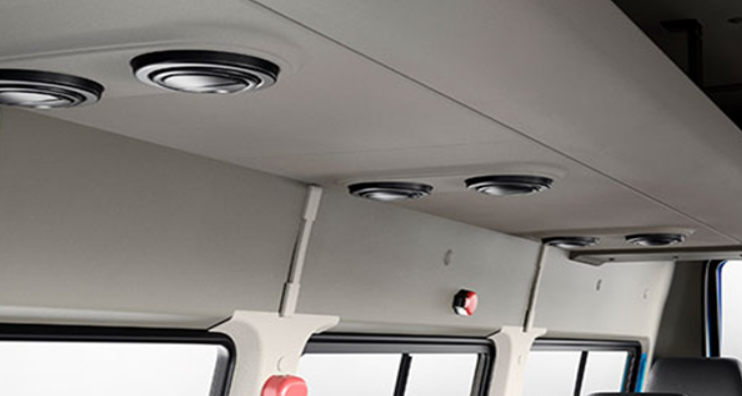

Feature: Climate Control

Individual AC Vents

Feature: Seating Comfort

Push Back Seats

Feature: Tyres

Bigger Tyres (LT 195 R15 8PR)

Feature: Interior Space

1900 mm Internal Roof Height

Feature: Charging

Multiple USB Charging Points

Feature: Storage

Extra Luggage Space
