Specification

Details

Chassis Platform

FL 3200 FR 9S AC

Wheelbase, mm

3200

Engine Make

TATA Motors Limited

Engine Model

VARICOR 11

Engine Type

Compression Ignition Diesel Engine

No. of Cylinders

4

Displacement, CC

2179

Engine Power, kW@RPM

74.8 kW @ 3750+/-rpm

Engine Torque, Nm@RPM

200 Nm @ 1000-3500 rpm

Fuel Type

Diesel

Clutch Type

Dry, Single Plate

Gearbox Type

Synchromesh

No. of Gears

5 Forward + 1 Reverse

Steering Type

Rack & Pinion, Power Steering

Front Suspension

McPherson Strut with Coil Spring

Rear Suspension

Parabolic Leaf Spring

Front Spring

Coil Spring

Rear Spring

Leaf Spring

Anti-Roll Bar (Front)

Yes (Optional)

Anti-Roll Bar (Rear)

Yes (Optional)

Shock Absorbers (Front)

McPherson Strut, 2 Nos

Shock Absorbers (Rear)

Double Acting Hydraulic Telescopic Shock Absorbers, 2 Nos

Service Brake

Vacuum Assisted Hydraulic Brakes Dual Circuit with Tandem Master Cylinder, Automatic Wear Adjuster at Rear

ABS

Yes

Front Brake

Disc Brake

Rear Brake

Drum Brake

Tyre Size (Front)

LT 195 R15 8PR

Tyre Size (Rear)

LT 195 R15 8PR

System Voltage, V

12

Battery Rating, Ah

80Ah / 75Ah / 78Ah / 65Ah

Fuel Tank Capacity, L

60

Overall Width, mm

1905

Overall Length, mm

4940

Overall Height, mm

2110

Min. Ground Clearance, mm

180

Seating Capacity

9+D

Application

Tourist Vans

Feature

Details

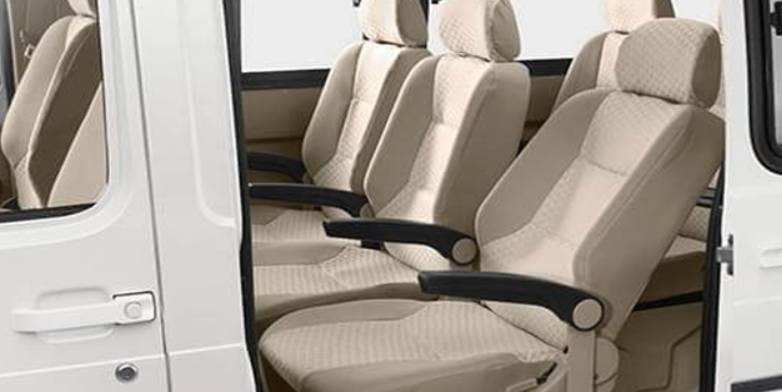

Feature: Seating Comfort

Individual Pushback Seats

Feature: Climate Control

Dual AC (in Driver Area and Passenger Area)

Feature: Exterior

Attractive Decals

Feature: Entry

Side Step for Ease of Entry and Exit
