Winger FL 3200 FR 12S – Tata Motors Van
Specifications
|
Specification |
Details |
|
Chassis Platform |
FL 3200 FR 12S |
|
Wheelbase, mm |
3200 |
|
Engine Make |
TATA Motors Limited |
|
Engine Model |
VARICOR 11 |
|
Engine Type |
Compression Ignition Diesel Engine |
|
No. of Cylinders |
4 |
|
Displacement, CC |
2179 |
|
Engine Power, kW@RPM |
74.8 kW @ 3750+/-rpm |
|
Engine Torque, Nm@RPM |
200 Nm @ 1000-3500 rpm |
|
Fuel Type |
Diesel |
|
Clutch Type |
Dry, Single Plate |
|
Gearbox Type |
Synchromesh |
|
No. of Gears |
5 Forward + 1 Reverse |
|
Steering Type |
Rack & Pinion, Power Steering |
|
Front Suspension |
McPherson Strut with Coil Spring |
|
Rear Suspension |
Parabolic Leaf Spring |
|
Front Spring |
Coil Spring |
|
Rear Spring |
Leaf Spring |
|
Anti-Roll Bar (Front) |
Yes (Optional) |
|
Anti-Roll Bar (Rear) |
Yes (Optional) |
|
Shock Absorbers (Front) |
McPherson Strut, 2 Nos |
|
Shock Absorbers (Rear) |
Double Acting Hydraulic Telescopic Shock Absorbers, 2 Nos |
|
Service Brake |
Vacuum Assisted Hydraulic Brakes Dual Circuit with Tandem Master Cylinder, Automatic Wear Adjuster at Rear |
|
ABS |
Yes |
|
Front Brake |
Disc Brake |
|
Rear Brake |
Drum Brake |
|
Tyre Size (Front) |
LT 195 R15 8PR |
|
Tyre Size (Rear) |
LT 195 R15 8PR |
|
System Voltage, V |
12 |
|
Battery Rating, Ah |
80Ah / 75Ah / 78Ah / 65Ah |
|
Fuel Tank Capacity, L |
60 |
|
Overall Width, mm |
1905 |
|
Overall Length, mm |
4940 |
|
Overall Height, mm |
2110 |
|
Min. Ground Clearance, mm |
180 |
|
Seating Capacity |
12+D |
|
Application |
Tourist Vans |
Components & Features
|
Feature |
Details |
|
Feature: Climate Control |
Individual AC Vents |
|
Feature: Seating Comfort |
12 Pushback Seats |
|
Feature: Tyres |
Bigger Tyres (LT 195 R15 8PR) |
|
Feature: Interior Space |
Internal Roof Height of 1900 mm |
|
Feature: Charging |
Multiple USB Charging Points |
|
Feature: Storage |
Extra Luggage Space |
|

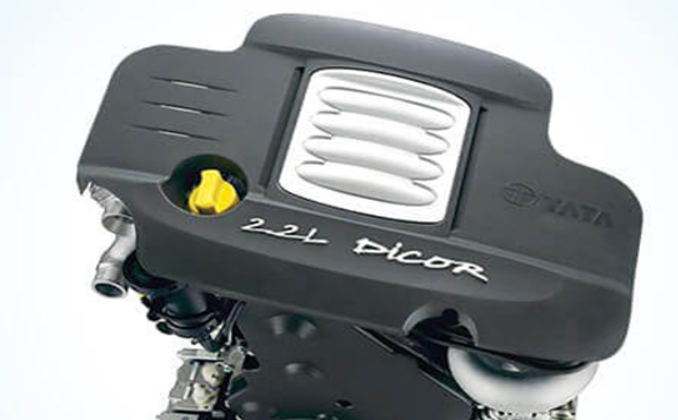

Feature: Engine |
2.2 L DICOR Engine |
|

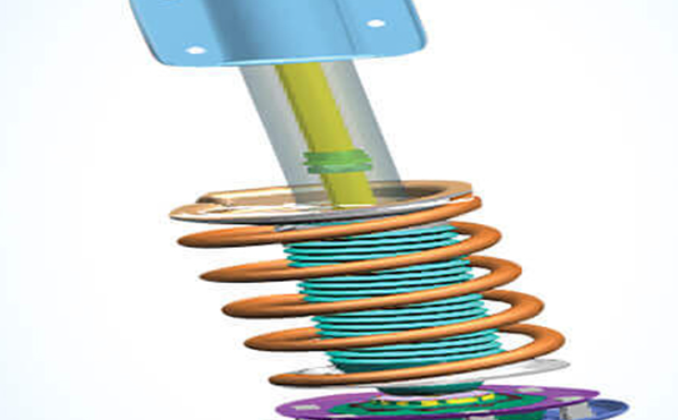

Feature: Suspension |
Front: McPherson Strut with Coil Spring; Rear: Parabolic Leaf Spring; Anti-Roll Bar (Front and Rear, Optional); Shock Absorbers (Front: McPherson Strut, 2 Nos; Rear: Double Acting Hydraulic Telescopic, 2 Nos) |
|
Feature: Clutch |
Dry, Single Plate |
|
Feature: Transaxle |
Transaxle |
|
Feature: Brakes |
Vacuum Assisted Hydraulic Brakes Dual Circuit with Tandem Master Cylinder, Automatic Wear Adjuster at Rear; ABS; Disc (Front), Drum (Rear) |
