Specification

Details

Chassis Platform

AMB TYPE D BS6 7+P AC SI

Wheelbase, mm

3488

Engine Make

TATA Motors Limited

Engine Model

VARICOR 11

Engine Type

Compression Ignition Diesel Engine

No. of Cylinders

4

Displacement, CC

2179

Engine Power, kW@RPM

74.8 kW @ 3750+/-rpm

Engine Torque, Nm@RPM

200 Nm @ 1000-3500 rpm

Fuel Type

Diesel

Clutch Type

Dry, Single Plate

Gearbox Type

TA-70

No. of Gears

5

Steering Type

Rack & Pinion, Power Steering

Front Suspension

McPherson Strut with Coil Spring

Rear Suspension

Parabolic Leaf Spring

Front Spring

Coil Spring

Rear Spring

Leaf Spring

Anti-Roll Bar (Front)

Yes (Optional)

Anti-Roll Bar (Rear)

Yes (Optional)

Shock Absorbers (Front)

McPherson Strut, 2 Nos

Shock Absorbers (Rear)

Double Acting Hydraulic Telescopic Shock Absorbers, 2 Nos

Service Brake

Vacuum Assisted Hydraulic Brakes Dual Circuit with Tandem Master Cylinder, Automatic Wear Adjuster at Rear

ABS

Yes

Front Brake

Disc Brake

Rear Brake

Drum Brake

Tyre Size (Front)

195 R15

Tyre Size (Rear)

LT 195 R15 8PR

System Voltage, V

12

Fuel Tank Capacity, L

60

Max GVW, kg

3385

Overall Width, mm

1905

Overall Length, mm

5478

Overall Height, mm

2490

Min. Ground Clearance, mm

180

Seating Capacity

10+P

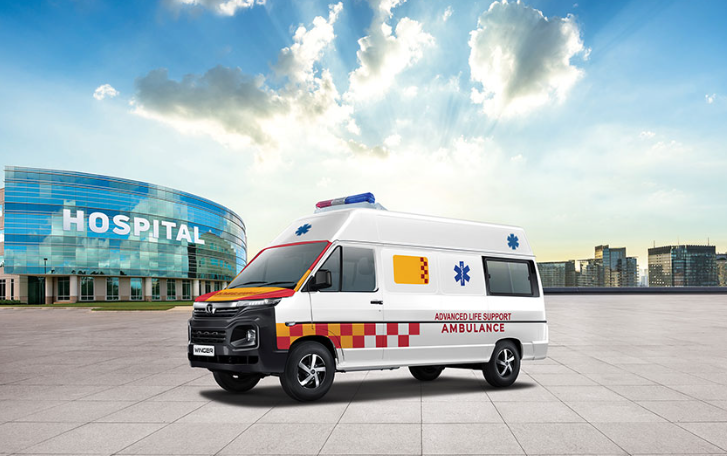

Application

Ambulance Vans

Feature

Details

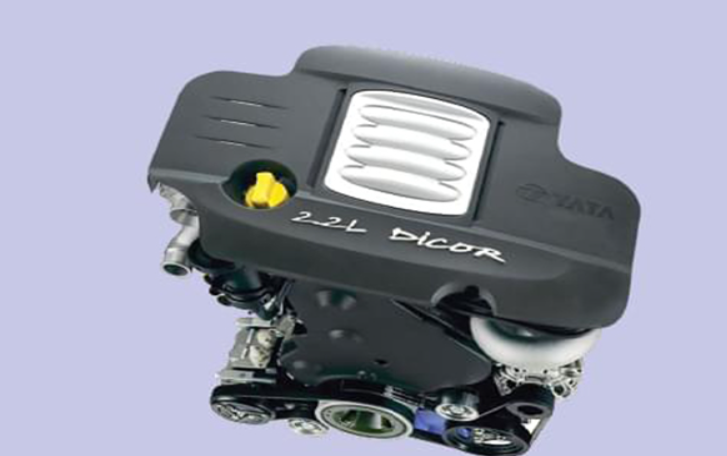

Feature: Engine

2.2 L DICOR Engine

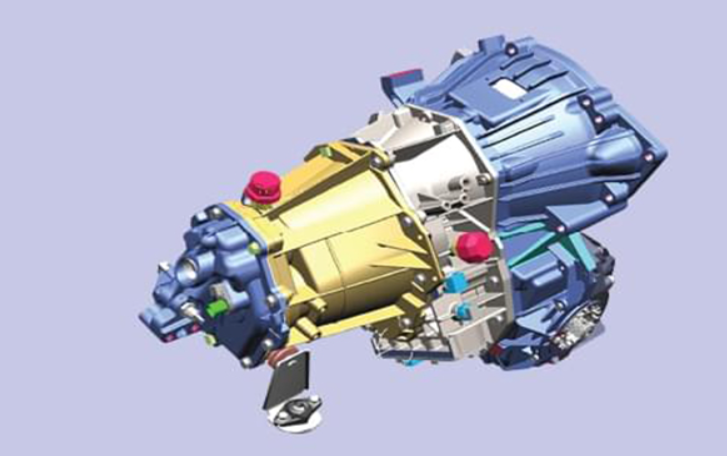

Feature: Transaxle

Transaxle

Feature: Clutch

Dry, Single Plate

Feature: Brakes

Vacuum Assisted Hydraulic Brakes Dual Circuit with Tandem Master Cylinder, Automatic Wear Adjuster at Rear; ABS; Disc (Front), Drum (Rear)

Feature: Suspension

Front: McPherson Strut with Coil Spring; Rear: Parabolic Leaf Spring; Anti-Roll Bar (Front and Rear, Optional); Shock Absorbers (Front: McPherson Strut, 2 Nos; Rear: Double Acting Hydraulic Telescopic, 2 Nos)
