Specification

Details

Emission

BS6

Engine Capacity

2.2 Litre Dicor

Engine Power

73.5 kW @ 3750 r/min

Engine Torque

200 Nm @ 1000-3500 r/min

Fuel Type

Diesel

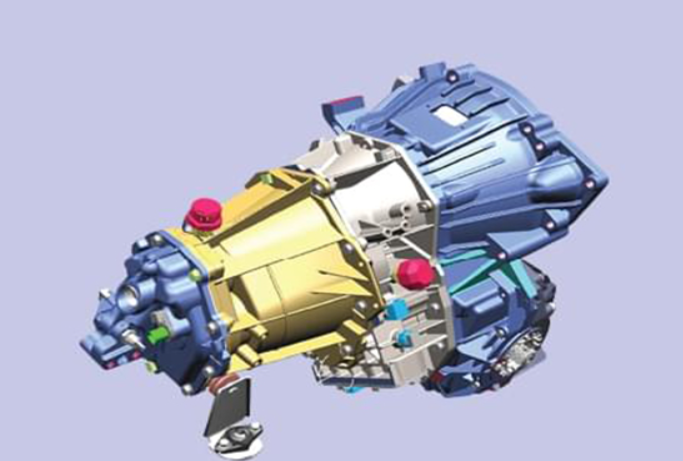

Gearbox

5 fwd + 1 reverse, Manual

Clutch

215 mm single-plate, dry friction, semi-hydraulic actuation

No. of Gears

5

Steering

Power Assisted Rack & Pinion

Front Brakes

Disc Brakes with Twin Pot Calliper

Rear Brakes

Drum Brakes

Front Suspension

McPherson Struts with Coil Spring

Rear Suspension

Parabolic Leaf Springs, Hydraulic Telescopic Shock Absorber

Wheelbase, mm

3200

Length, mm

4940

Width, mm

1950

Height, mm

2670

Ground Clearance, mm

185

GVW, kg

3033

Tyre

195R15 LT

Battery

12 V; 80 Ah

Additional Battery

NA

Anti-Roll Bar

In front and rear

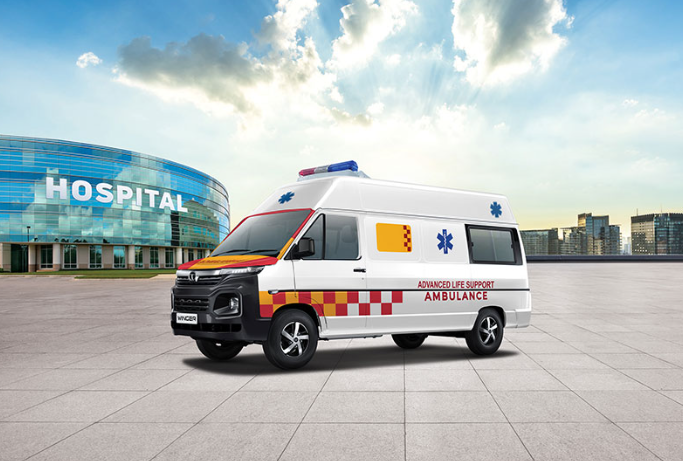

Application

Ambulance vans

Specification

Details

Comfort Feature

Air conditioning (AC) unit

Safety Feature

ABS with EBD

Medical Feature

Stretcher

Medical Feature

Oxygen cylinder mounting

Medical Feature

First-aid kit

Seating Feature

Foldable doctor’s seat

Seating Feature

Medical crew bench (seating for 4)

Medical Feature

IV hooks

Medical Feature

Defibrillator mounting provision

Medical Feature

Ventilator mounting provision

Medical Feature

Medical cabinet for equipment storage

Safety Feature

Reinforced body structure

Exterior Feature

Split grill with matte black finish for improved airflow and radiator performance

Efficiency Feature

Eco switch for efficient engine management

Transmission Feature

Gear shift advisor

Telematics Feature

Telematics and fleet management solutions

Body Design Feature

Superior body design in collaboration with ACGL, prioritizing structural integrity and aesthetics

Service Interval Feature

40,000 km
