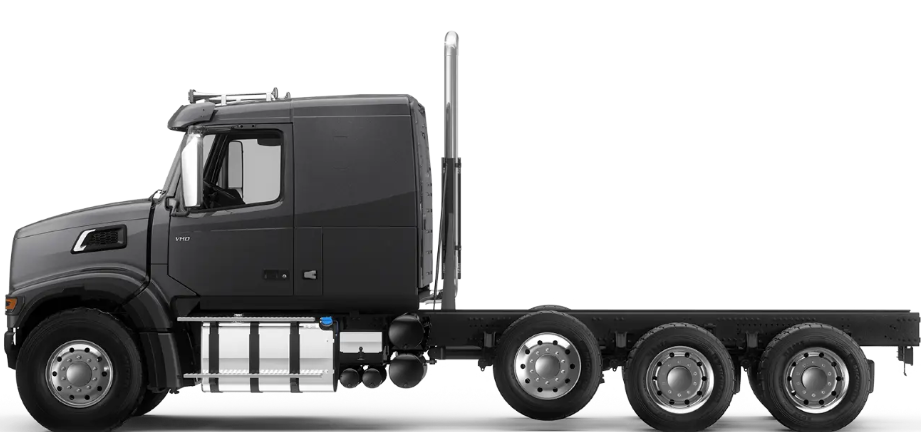

Volvo VHD 400F Axle Forward – Diesel Vocational Truck by Volvo Trucks
Specifications
|
Specification |
Details |
|
Truck Model |
VHD 400F Axle Forward |
|
GVW |
64.864 t (single/tandem), 99.790 t (tri-drive) |
|
Vehicle Configuration |
Straight truck or tractor |
|
Cab Type |
42 in. Sleeper |
|
Interior Height |
1562 mm |
|
Interior Width |
2121 mm door to door with 1905 x 914 mm mattress |
|
BBC |
3698 mm |
|
Drive Axle Configuration |
Single, tandem, tri-drive |
|
Frame Length |
Up to 12192 mm |
|
Fuel Type |
Diesel |
|
Application |
Vocational Truck |
Frame & Drivetrain
|
Specification |
Details |
|
Engines |
Volvo D11, Volvo D13, 4 cycle, Inline Six |
|
Displacement |
10800 cc, 12800 cc |
|
Output |
242.5–317.4 kW (325–425 hp), 302.7–373 kW (405–500 hp) |
|
Torque |
1695–2103 Nm (1250–1550 lb-ft), 1966–2510 Nm (1450–1850 lb-ft) |
|
Emission |
SCR Selective Catalytic Reduction |
|
Aspiration |
Sliding Nozzle Variable Geometry Turbocharger |
|
Cam/Valve Configuration |
SOHC, 4 Valves per Cylinder |
|
Cylinder Head |
One Piece Rigid Deck |
|
Injection System |
Common-Rail |
|
Maximum Fuel Injection Pressure |
35000 psi (2400 bar) |
|
Transmissions |
Volvo I-Shift for Severe Duty (Direct: 12 speed, 14.94 ratio, 1900 lb-ft; Overdrive: 12 speed, 15.04 ratio, 1900 lb-ft), Volvo I-Shift with Crawler Gears (13 speed, 22.35 ratio, 1900 lb-ft; 14 speed, 41.08 ratio, 1900 lb-ft), Allison 3000 RDS (6 speed, 9.5 ratio, 1250 lb-ft), Allison 4000/4500 RDS (6 speed, 10.42/13.33 ratio, 1850 lb-ft) |
|
PTO |
Rear engine mounted, front engine mounted, transmission mounted |
Suspension & Brakes
|
Specification |
Details |
|
Rear Suspension |
Multi-leaf Spring, T-Ride, Primaax, HAS, Haulmaax |
|
Rear Axle Ratings |
10433–31298 kg |
|
Lift Axle |
Tag and pusher, up to 2 factory installed |
Components & Features
|
Specification |
Details |
|
Air Compressor |
Two Cylinder, 31.8 CFM |
|
Engine Brake |
Volvo Engine Brake (VEB), 420 hp or 500 hp @ 2200 rpm, 266 hp or 350 hp @ 1500 rpm |
|
Preheater |
Electrical, Optional |
|
Fuel Filters |
Primary plus Secondary |
|
Oil Capacity |
36 L (10.8 L engine), 40 L (12.8 L engine) |
|
Oil Filtration |
Two Full Flow, One Bypass (10.8 L), Two Full Flow (12.8 L) |
|
Oil Specification |
Volvo VDS-4.5, SAE 10W-30 |
|
FLOCS Oil Drain Kit |
Optional |
|
Transmission Features |
Monitored by Remote Diagnostics (I-Shift), Remote Programming OTA (I-Shift), Hill Start Assist, Ability to Upgrade Engine Torque (I-Shift), Ability to Rock Free, Power Launch, Kick Down (I-Shift), Grade Sensor, Performance Software, Manual Mode, Ability to Lock in a Gear (I-Shift) |
