Volvo BZRT Electric Articulated and Bi-Articulated Bus
Specifications
|
Specification |
Details |
|
Model |
BZRT Electric Articulated / Bi-Articulated |
|
Maximum Chassis Length |
21,600 mm (Articulated) / 27,600 mm (Bi-Articulated) |
|
Width |
2,470 mm (Articulated) / 2,700 mm, 2,785 mm, or 2,880 mm (Bi-Articulated) |
|
Permitted GVW |
32,500 kg or 34,000 kg (Articulated) / 47,000 kg (Bi-Articulated) |
|
Fuel Type |
Electric |
|
Application |
Bus Rapid Transit (BRT) |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
5,500 mm, 5,850 mm, or 6,200 mm (Articulated) / 5,000 mm, 5,500 mm, or 5,850 mm (Bi-Articulated) |
|

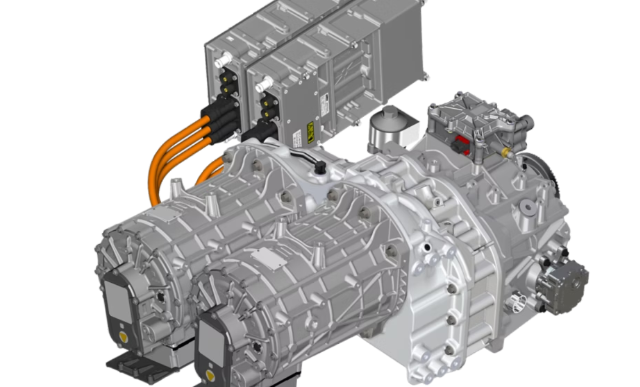

Electric Motors |
Volvo EPT802 dual electric motors, 2x200 kW (R85) |
|
Transmission |
Volvo I-Shift Automated Mechanical Transmission |
|
Front Axle |
Volvo Beam Axle |
|
Rear Axle |
Volvo single reduction rear axle with optimised ratios |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Electronically controlled air suspension with kneeling function |
|
Brakes |
Electronic Braking System (EBS 5), Electronic Stability Control (ESC), Forward Collision Warning |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/80 R22.5 |
Components & Features
|
Feature |
Details |
|
Instrument Cluster |
Digital, transit-mounted or Volvo dashboard, with steering wheel buttons, speedometer, charging information, State of Charge (SOC) in %, remaining autonomy, econometer |
|
Energy Storage System |
540 kWh (Articulated), 540 kWh, 630 kWh, or 720 kWh (Bi-Articulated), 600 V |
|
Charging System |
CCS2 DC (250 kW max, front left/right charging), OppCharge (450 kW max, custom rail position) |
|
Energy Storage System Safety |
Battery monitoring, automatic safety functions on cell and pack level, isolation resistance monitoring, charging safety, mechanical protection, rescue sheet |
|
Volvo Ready to Run |
Maintains battery working temperature, no pre-heating required, 24 V batteries charged from 600 V battery, pre-heating/cooling of cabin with HVAC support |
|
Thermal Management System |
Coolant level warning, automated battery temperature control with active cooling/heating, electric driveline and auxiliaries cooling circuit, waste heat recovered via heat exchanger |
|
Climate System |
Chassis prepared for roof-mounted HVAC units from various suppliers, including heat pump functionality |
|
Active Safety Systems |
Forward Collision Warning, Intelligent Speed Assist, Side Collision Avoidance Support, Front Short Range Assist, Lane Keeping Support, Driver Alert Support, Tire Pressure Monitoring System, I-Coaching, Volvo Dynamic Steering, Safety Zones |
|
Protection Systems |
Knee Impact Protection, Front Underrun Protection |
