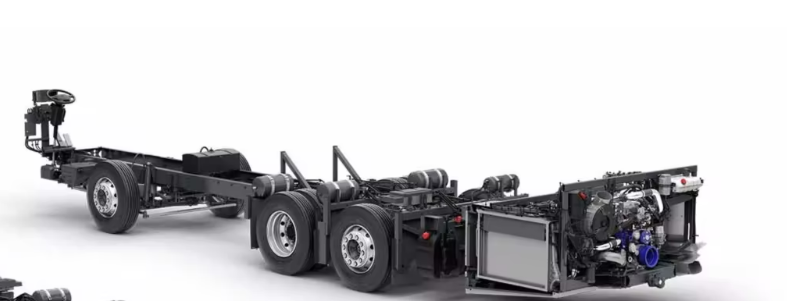

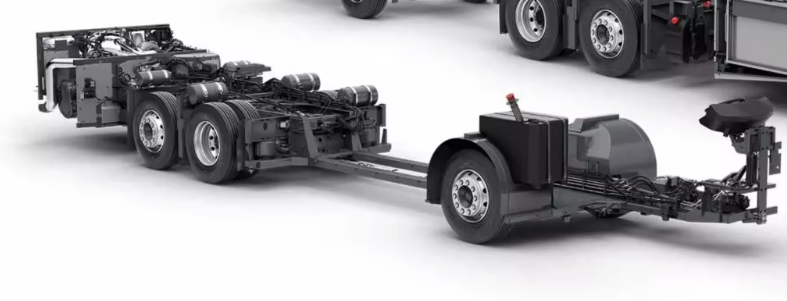

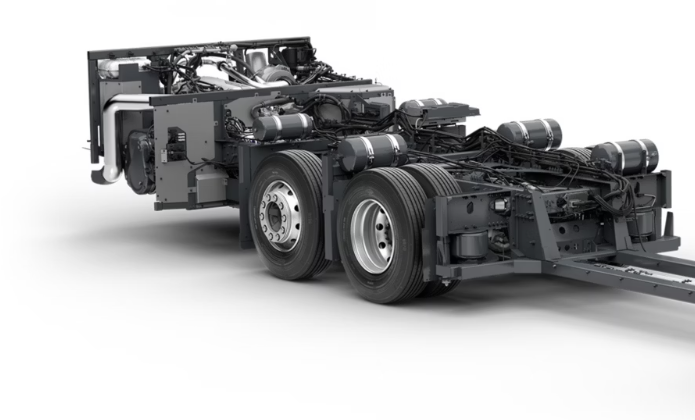

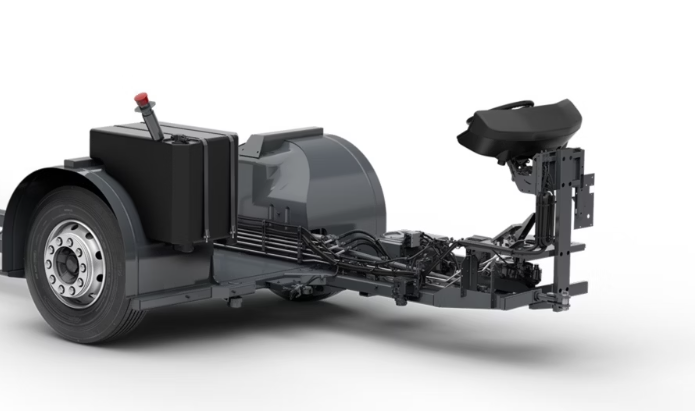

Volvo B8R Low Entry Euro 5 Bus
Specifications
|
Specification |
Details |
|
Model |
B8R Low Entry |
|
Overall Chassis Length |
10,273–12,573 mm (SWP2020), 10,173–12,473 mm (SWP1920), 9,758–12,058 mm (SWP1500) |
|
Frame Height at Rear Structure |
1,754 mm |
|
Overall Width Front Wheels |
2,500 mm |
|
Overall Width Rear Wheels |
2,436 mm |
|
Front Overhang |
2,600 mm (SWP2020), 2,500 mm (SWP1920), 2,085 mm (SWP1500) |
|
Rear Overhang |
3,193 mm |
|
Permitted GVW |
19,000 kg |
|
Fuel Type |
Diesel |
|
Application |
Low Entry Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
3,500 mm (Transport), 4,500–6,800 mm (Approved) |
|
Track, Front |
2,068 mm |
|
Track, Rear |
1,835 mm |
|
Engine |
Volvo D8C, 6-cylinder, in-line, 7.7 dm³ |
|
Transmission |
ZF 6AP1200C / VOITH D854-6 |
|
Front Axle |
Volvo RFS |
|
Rear Axle |
Volvo RS1228C |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Air bellows (2 front, 4 drive), optional kneeling |
|
Brakes |
Volvo disc brakes, Electronic Braking System (EBS 5), Electronic Stability Control (ESC), Anti-lock Braking System (ABS), Acceleration Slip Regulation (ASR), Brake Blending, Dual Retarder Control, Drag Torque Control, Hill Start Aid, Brake Temperature Warning, Poor Brake Performance Warning, Door Brake, Brake Assistant, Lining Wear Sensing and Analysis, Automatic Calibration after Brake Pad Change, Collision Warning with Emergency Brake (CW-EB) |
|
Steering |
Hydraulic power steering, max wheel angle 53°±1°, LHD/RHD |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/80R22.5, 275/70R22.5 |
|
Rims |
Steel or aluminium, 8.25"x22.5", 7.5"x22.5" |
Components & Features
|
Feature |
Details |
|
Emission Standard |
Euro 5 |
|
Engine Output |
250 hp (184 kW) or 330 hp (243 kW) ISO 1585 |
|
Engine Torque |
950 Nm at 1,000–1,800 rpm (D8C250), 1,200 Nm at 1,200–1,600 rpm (D8C330) ISO 1585 |
|
Fuel Tanks |
Diesel: 220 L (LHD/RHD), 310 L, AdBlue: 50 L, Transport: 50 L |
|
Exhaust System |
One box muffler design, Selective Catalytic Reduction (SCR) |
|
Cooling System |
Fluid cooled, pressurized cooling system |
|
Instrument Cluster |
Speedometer, rev counter, 6.5" display, fuel gauge, coolant temperature, brakes, turbo and oil pressure, indicators, warning lamps |
|
Driver’s Station |
Adjustable steering wheel (tilt), emergency switch, tachograph, radio switches in steering wheel, data logging, Volvo Alcolock, external temperature meter, fuel economy meter, engine controls in engine compartment |
|
Electrical System |
Bus Electrical Architecture (BEA2+), Multiplex 3 electronic data bus system, 2x24 V batteries (165 Ah, 170 Ah, 180 Ah, 225 Ah), alternators max output 2x110 A, ampere meter, fuel consumption meter, outdoor/indoor temperature meter |
|
Air System |
Compressed air system, easily filled from external circuit |
