Volvo B11R 6x2 Euro 6 Coach Bus
Specifications
|
Specification |
Details |
|
Model |
B11R 6x2 RFS / IFS |
|
Overall Chassis Length |
RFS: 11,310–13,710 mm (SWP1470), 11,660–14,060 mm (SWP1820), 11,890–14,290 mm (SWP2050); IFS: 11,210–13,610 mm (SWP1470), 11,560–13,960 mm (SWP1820), 11,790–14,190 mm (SWP2050) |
|
Frame Height at Rear Structure |
1,618 mm (RFS), 1,816 mm (IFS) |
|
Overall Width Front Wheels |
2,489 mm (RFS), 2,490 mm (IFS) |
|
Overall Width Rear Wheels |
2,494 mm |
|
Front Overhang |
RFS: 2,150 mm (SWP1470), 2,500 mm (SWP1820), 2,730 mm (SWP2050); IFS: 2,050 mm (SWP1470), 2,400 mm (SWP1820), 2,630 mm (SWP2050) |
|
Rear Overhang |
2,760 mm, optional 3,340 mm |
|
Permitted GVW |
24,750 kg or 26,500 kg |
|
Fuel Type |
Diesel |
|
Application |
Coach |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
4,000 mm (Transport), 5,000–7,400 mm (Approved) |
|
Bogie |
1,400 mm |
|
Track, Front |
2,040 mm (RFS), 2,064 mm (IFS) |
|
Track, Rear |
1,836 mm |
|

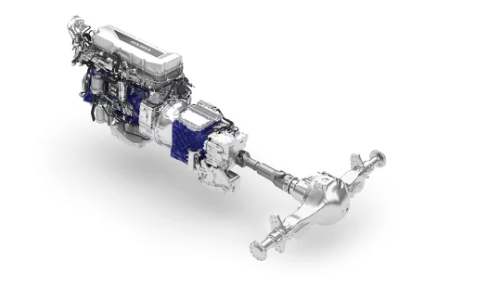

Engine |
Volvo D11K, 6-cylinder, in-line, 11 dm³, SCR, common rail |
|
Transmission |
Volvo I-Shift AT2412F, ZF 6AP2000C (380 hp only) |
|
Front Axle |
Volvo RFS or IFS |
|
Rear Axle |
Volvo RS1228C |
|
Tag Axle |
Hydraulic steered or fixed |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Air bellows (2 front, 4 drive, 2 tag), optional kneeling |
|
Brakes |
Volvo disc brakes, Electronic Stability Control (ESC), Electronic Braking System (EBS 5), Anti-lock Braking System (ABS), Acceleration Slip Regulation (ASR), Brake Blending, Dual Retarder Control, Drag Torque Control, Hill Start Aid, Brake Temperature Warning, Poor Brake Performance Warning, Door Brake, Brake Assistant, Lining Wear Sensing and Analysis, Automatic Calibration after Brake Pad Change, Collision Warning with Emergency Brake (CW-EB) |
|
Steering |
Hydraulic power steering, max wheel angle 52° (RFS) or 53° (IFS) with 295/80 R22.5 tyres, LHD/RHD |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/80 R22.5, 315/80 R22.5 |
|
Rims |
Steel or aluminium, 8.25 x 22.5, 9.00 x 22.5 |
Components & Features
|
Feature |
Details |
|
Emission Standard |
Euro 6, compatible with HVO (EN 15940), biodiesel available for D11K460 |
|
Engine Output |
380 hp (285 kW), 430 hp (323 kW), or 460 hp (345 kW) ISO 1585 at 1,600–1,900 rpm |
|
Engine Torque |
1,836 Nm (D11K380), 2,091 Nm (D11K430), 2,244 Nm (D11K460) ISO 1585 at 950 rpm |
|
Fuel Tanks |
Diesel: 220 L, 300 L, 375 L, 400 L, 3x150 L, 480 L, 600 L (IFS only), 720 L; AdBlue: 48 L or 64 L; Transport: 50 L |
|
Exhaust System |
One box muffler design, Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalytic Reduction (SCR), Ammonia Slip Catalyst (ASC), automatic DPF regeneration, OBD for emissions (step D) |
|
Cooling System |
Pivotable radiator, no coolant filter, coolant level warning in instrument cluster, higher allowed coolant temperature |
|
Instrument Cluster |
Transit-mounted or Volvo dashboard (VDV version optional), dashboard moves with steering column, speedometer, rev counter, 6.5" display, fuel gauge, coolant temperature, brakes, turbo and oil pressure, indicators, warning lamps |
|
Driver’s Station |
Tachograph, data logging, Volvo Alcolock, external temperature meter, fuel economy meter, engine controls in engine compartment, Lane Keeping Support, Volvo Dynamic Steering (VDS), Adaptive Cruise Control, I-See |
|
Electrical System |
Volvo I-Start system, dual battery system (2x12 V start batteries at 2x35 Ah, 2x12 V consumer batteries at 105 Ah), automatic shut off at low voltage, load balanced alternators, regenerative charge control, alternators max output 2x150 A or 3x150 A |
|
Air System |
Compressed air system, cut-in pressure 9.5 bar, cut-out pressure 10.8 bar |
