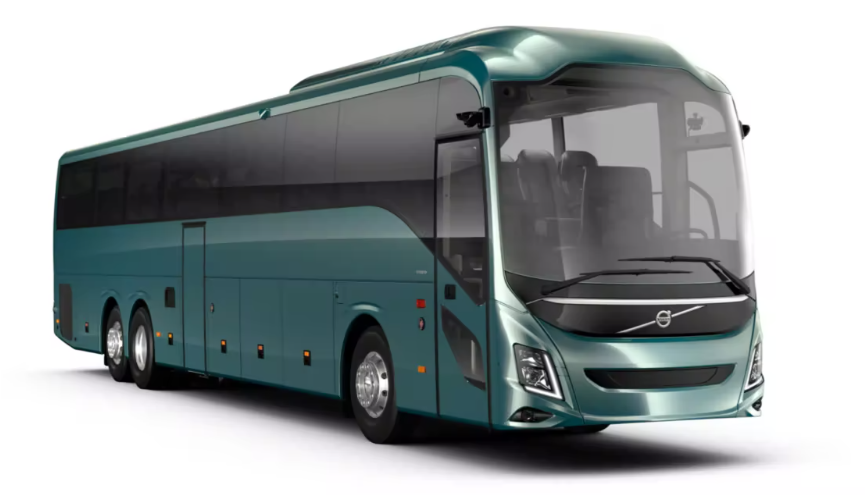

Volvo 9700 Coach Bus
Specifications
|
Specification |
Details |
|
Model |
9700 12.4 4x2 / 13.1 4x2/6x2 / 13.9 6x2 / 15.0 6x2 |
|
Length |
12.4 m (12.4 4x2) / 13.1 m (13.1 4x2/6x2) / 13.9 m (13.9 6x2) / 14.9 m (15.0 6x2) |
|
Width |
2.5 m |
|
Height |
3.6 m |
|
Permitted GVW |
19,500 kg (12.4 4x2, 13.1 4x2) / 26,500 kg (13.1 6x2, 13.9 6x2, 15.0 6x2) |
|
Passenger Capacity (3* Seats) |
49 (12.4 4x2) / 53 or 49 with lift (13.1 4x2/6x2) / 57 or 53 with lift (13.9 6x2) / 61 or 59/61 with lift (15.0 6x2) |
|
Passenger Capacity (2* Seats) |
53 (12.4 4x2) / 57 or 53 with lift (13.1 4x2/6x2) / 61 or 57 with lift (13.9 6x2) / 65 (15.0 6x2) |
|
Luggage Capacity |
9.1 m³ (12.4 4x2) / 11.2 m³ (13.1 4x2/6x2) / 11.3 m³ (13.9 6x2) / 13.4 m³ (15.0 6x2) with WC |
|
Fuel Type |
Diesel |
|
Application |
Coach |
Frame & Drivetrain
|
Specification |
Details |
|
Front Axle |
Volvo IFS |
|
Rear Axle |
Volvo single reduction axle with optimised ratios |
|
Engine |
Volvo D13K, 6-cylinder inline diesel engine with common rail injection |
|
Transmission |
Volvo I-Shift, automated gear changing system with integrated retarder, optional gearbox oil heater |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Electronically controlled air suspension with kneeling function, optional Dynamic Chassis Lowering |
|
Brakes |
Volvo disc brakes, Electronic Braking System (EBS-5), Electronic Stability Program (ESP), Anti-lock Braking System (ABS), Acceleration Slip Regulation (ASR), Collision Warning with Emergency Brake (CW-EB) |
|
Steering |
Hydraulic power steering, optional Volvo Dynamic Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
295/80 R22.5, 315/80 R22.5 |
|
Rims |
Steel or aluminium |
Components & Features
|
Feature |
Details |
|
Emission Standard |
Euro 6 |
|
Engine Output |
420 hp, 460 hp, or 500 hp |
|
Engine Torque |
2,100 Nm, 2,300 Nm, or 2,500 Nm at 1,000–1,400 rpm (ISO 1585) |
|
Fuel Tanks |
Diesel: 480 L or 600 L, AdBlue®: 90 L |
|
Climate System |
Separate climate zones for driver and passengers, powerful roof unit with cooling and heating, AC: 31 kW or 37 kW |
|
Active Safety Systems |
Collision Warning with Emergency Brake, Collision Warning with City Brake, Intelligent Speed Assist, Side Collision Avoidance Support, Front Short Range Assist, Adaptive Cruise Control, Lane Change Support, Lane Keeping Support, Driver Alert Support, Tire Pressure Monitoring System, I-Coaching, Safety Zones |
|
Protection Systems |
Front Impact Protection, Knee Impact Protection, Front Underrun Protection, Rear Underrun Protection |
