Volvo 7900 Electric – Electric City Bus by Volvo Buses
Specifications
|
Specification |
Details |
|
Bus Model |
7900 Electric |
|
GVW |
19.5 t (12.0 m), 30 t (18.0 m, 18.7 m) |
|
Overall Dimensions |
12 m x 2.5 m x 3.3 m (12.0 m), 17.8 m x 2.5 m x 3.3 m (18.0 m), 18.5 m x 2.5 m x 3.3 m (18.7 m) |
|
Seating Capacity |
95 (12.0 m), 150 (18.0 m), 145 (18.7 m) |
|
Fuel Type |
Electric |
|
Battery Capacity |
Up to 470 kWh (12.0 m, 18.0 m), 565 kWh (18.7 m) |
|
Application |
Electric City Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Motor Type |
Permanent Magnet Synchronous Motor |
|
Electric Motor Output |
200 kW (12.0 m), 2x200 kW (18.0 m, 18.7 m) |
|
Max Wheel Torque |
19000 Nm (12.0 m), 31000 Nm (18.0 m, 18.7 m) |
|
Gearbox |
2-speed automated manual transmission |
|
Charging System |

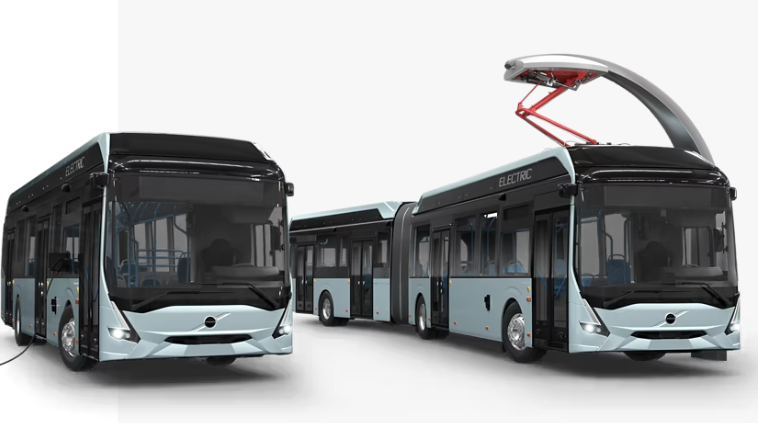

OppCharge: 300 kW (12.0 m), 400 kW (18.0 m), 450 kW (18.7 m); CCS: 250 kW (all models); Roof-mounted pantograph available on request |
|
Emission |
Zero Emission |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Volvo rigid low beam axle |
|
Rear Axle |
ZF AV133 |
|
Steering |
Electrically powered hydraulic steering, Volvo Dynamic Steering (optional) |
|
Brake Systems |
Volvo disc brakes, Electronic Braking System (EBS5), Anti-lock Braking System (ABS), Acceleration Slip Regulator (ASR), Brake blending, Hill start aid, Electronic Stability Program (ESP, optional on 12.0 m) |
Components & Features
|
Specification |
Details |
|
Climate System - Roof Unit |
25 kW (12.0 m), 2x25 kW (18.0 m, 18.7 m) |
|
Climate System - Defroster |
18 kW (all models) |
|
Climate System - Driver AC |
5.5 kW (12.0 m, optional) |
|
Climate System - Heating |
Heating pump/electric heater: 16/40 kW (12.0 m), 2x16/2x40 kW (18.0 m, 18.7 m) |
|
Climate System - Auxiliary Heater |
Electric/fuel: 18/16 kW (12.0 m), 18/23 kW (18.0 m, 18.7 m) |
|
Active Safety - Collision Warning |
Collision Warning with City Brake |
|
Active Safety - Forward Collision |
Forward Collision Warning |
|
Active Safety - Speed Assist |
Intelligent Speed Assist |
|
Active Safety - Side Collision |
Side Collision Avoidance Support |
|
Active Safety - Front Range |
Front Short Range Assist |
|
Active Safety - Lane Change |
Lane Change Support |
|
Active Safety - Lane Keeping |
Lane Keeping Support |
|
Active Safety - Driver Alert |
Driver Alert Support |
|
Active Safety - Tyre Monitoring |
Tire Pressure Monitoring System |
|
Driver Support - Coaching |
I-Coaching |
|
Driver Support - Safety Zones |
Safety Zones |
|
Driver Support - Steering |
Volvo Dynamic Steering |
|
Driver Support - Stability |
Electronic Stability Control |
|
Driver Support - Camera |
Rear-view camera |
|
Driver Support - Alerting |
AVAS – Acoustic Vehicle Alerting System |
|
Protection - Front Impact |
Front Impact Protection |
|
Protection - Front Underrun |
Front Underrun Protection |
|
Protection - Rear Underrun |
Rear Underrun Protection |
|
Battery Safety - Monitoring |
Battery monitoring |
|
Battery Safety - Functions |
Automatic safety functions on cell and pack level |
|
Battery Safety - Isolation |
Isolation resistance monitoring |
|
Battery Safety - Charging |
Charging safety |
|
Battery Safety - Protection |
Mechanical protection |
|
Battery Safety - Rescue |
Rescue sheet |
