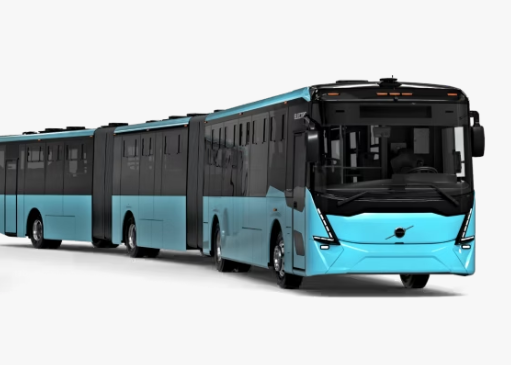

Volvo 7800 Electric Articulated and Bi-Articulated Bus
Specifications
|
Specification |
Details |
|
Model |
7800 Electric Articulated / Bi-Articulated |
|
Maximum Chassis Length |
18,500 mm (Articulated) / 25,600 mm (Bi-Articulated) |
|
Total Height |
3,437 mm |
|
Width |
2,559 mm |
|
Front Overhang |
2,696 mm |
|
Rear Overhang |
3,690 mm |
|
Height to Access Doors |
1,000 mm |
|
Permitted GVW |
34,000 kg (Articulated) / 47,000 kg (Bi-Articulated) |
|
Battery |
540 kWh / 630 kWh (Articulated), 540 kWh / 630 kWh / 720 kWh (Bi-Articulated) |
|
Peak Power |
2x200 kW |
|
Fuel Type |
Electric |
|
Application |
Bus Rapid Transit (BRT) |
Frame & Drivetrain
|
Specification |
Details |
|
Electric Motors |
Volvo EPT802 dual electric motors |
|
Gearbox |
2-speed automated mechanical transmission, based on Volvo I-Shift Technology |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Electronically controlled air suspension |
|
Brakes |
Electronic Braking System (EBS 5) with Electronic Stability Control (ESC) |
|
Axles |
Volvo Beam Axle (front), single reduction rear axle with optimized ratios |
Components & Features
|
Feature |
Details |
|

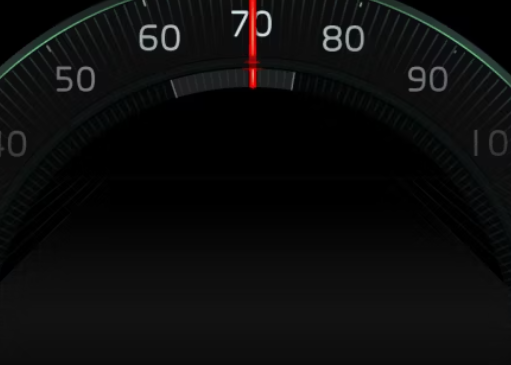

Instrument Cluster |
Digital instrument cluster with steering wheel buttons for easy access |
|
Displayed Information |
Speedometer, Charging Information, State of Charge (SOC) in %, Remaining Autonomy, Econometer |
|

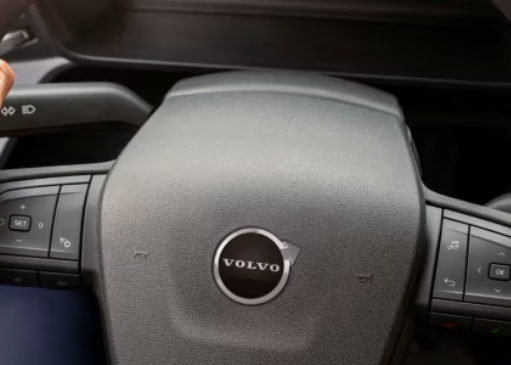

Steering |
Volvo Dynamic Steering (optional) |
|
Powertrain |
All-Volvo design, part of Volvo group-wide e-mobility architecture |
|
Electric Motors |
Volvo EPT802 dual electric motors, 2x200 kW (R85) |
|
Traction Voltage |
600 V |
|
Volvo Ready-to-Run |
Keeps traction batteries at working temperature, no pre-heating required, 24 V batteries charged from 600 V battery |
|
Thermal Management System |
Coolant level warning in instrument cluster, automated control of battery temperature with active cooling/heating, electric powertrain and auxiliary cooling circuit, heat dissipation recovered by heat exchanger |
|
Charging Type |
CCS2 DC, front right charging |
|
Maximum Charge Power |
250 kW |
|
Collision Warning Systems |
Collision Warning with Emergency Brake, Collision Warning with City Brake, Forward Collision Warning |
|

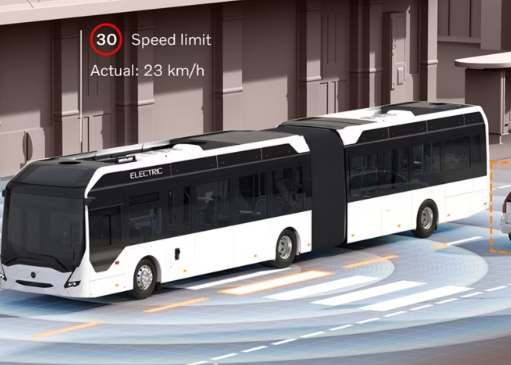

Driver Assistance |
Intelligent Speed Assist, Side Collision Avoidance Support, Front Short Range Assist, Lane Keeping Support, Lane Change Support, Driver Alert Support |
|
Tire Monitoring |
Tire Pressure Monitoring System |
|
Driver Coaching |
I-Coaching |
|
Safety Zones |
Included |
