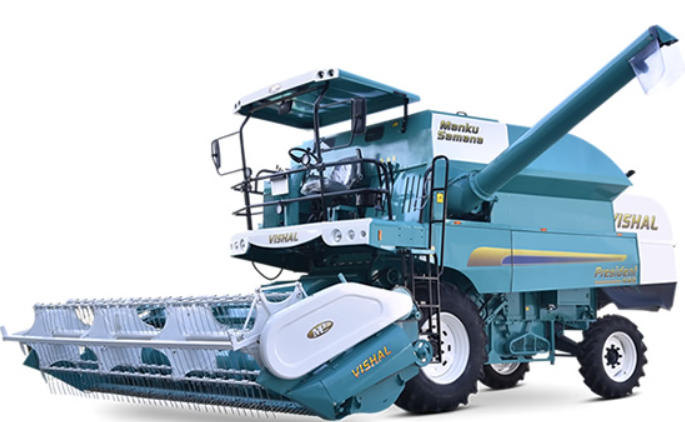

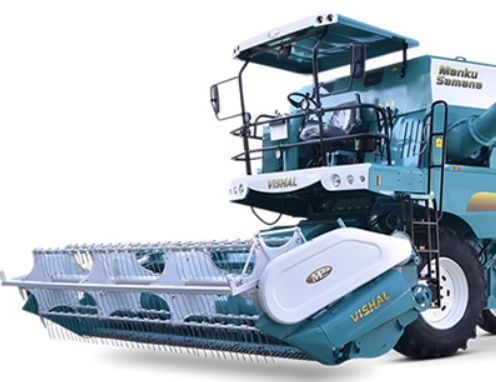

VISHAL 495 President Self Propelled Combine Harvester – 101/137 HP Multi-Crop Harvester
Specifications
|
Specification |
Details |
|
Model |
VISHAL 495 President |
|
Vehicle Category |
Self-Propelled Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Wheat, paddy, oats, rye, barley, maize, soybean, sunflower, gram, pulses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Ashok Leyland or Eicher, 6-cylinder, four-stroke, water-cooled, direct injection diesel |
|
Gross Horsepower |
101 HP or 137 HP @ 2200 RPM |
|
Transmission Type |
Mechanical, constant and sliding mesh spur gear with differential unit, 6 forward and 2 reverse with stepless hydraulic variator pulley |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Disc brake system |
Wheels & Tyres
|
Specification |
Details |
|
Front Wheels |
18.4-30, 12 PR |
|
Rear Wheels |
11.2-24 |
Components & Features
|
Specification |
Details |
|
Cutter Bar Assembly |
Working width: 4460 mm (16/14 feet), effective width: 4250 mm, 59 serrated knife blades, 58 knife guards (29 pairs, 75 mm spacing), knife stroke: 90 mm, 853 strokes per minute, knife speed: 1.28 m/sec at 1750 RPM engine speed, knife drive: lever to Pittman shaft oscillated by crank arm, knife safety: guard provided, crop dividers: shoe type |
|
Threshing System |
Thresher width: 1270 mm (wheat), 1265 mm (paddy); Diameter: 600 mm; Speed range: 477–1070 RPM (corresponding to 7 RPM engine speed); Concave width: 1290 mm (wheat), 1285 mm (paddy), effective width: 1255 mm (wheat), 1250 mm (paddy); Concave type: open flat bars (wheat), open flat bars with 18 pegs in two rows and 15 pegs in one row (paddy); 12 bars |
|
Cleaning Sieves |
Top sieve: 2 open lip frog mouth type (1240 mm x 1215 mm front, 635 mm x 1215 mm rear, 1.35 m² front, 0.65 m² rear); Bottom sieve: 1 open lip frog mouth type (1400 mm x 1215 mm, 1.53 m²); Oscillation: 268 per minute at 1750 RPM engine speed; 8 ball bearings (6205FLT Polland), 12 rubber bushes on shaker mechanism; Lip height: 20 mm at maximum opening |
|
Straw Walker |
5 straw walkers, closed rack type, serrated side edges, 6 steps each, 3990 mm length, 240 mm width, 0.95 m² each, 5.31 m² effective separating area, 140 mm lift/throw, 144 oscillations per minute at 1750 RPM engine speed |
|
Grain Tank |
2.180 m³ volume, 1810 kg mass, located on top behind operator’s seat |
|
Reel Assembly |
Tyne bar pick-up, 5 tyne bars (4230 mm x 27 mm, hollow metallic pipe), 36 tynes (18 pairs, 113 mm spacing), 975 mm diameter, 4150 mm width, 28–64 RPM at 1750 RPM engine speed, mechanical stepless V-pulley variator |
|
Clutch |
Dry friction disc, 310 mm diameter |
|
Steering |
Power steering |
|
Width |
6370 mm (working), 3130 mm (transportation) |
|
Length |
8220 mm (working), 12220 mm (transportation) |
|
Max Height |
3820 mm (working and transportation) |
|
Weight |
9400 kg (approx.) |
|
Ground Clearance |
1761 mm |
