Versatile Nemesis 175 – Mid-Range Tractor for Mowing and Field Work
Specifications
|
Specification |
Details |
|
Tractor Model |
Nemesis 175 |
|
Vehicle Category |
Mid-Range Tractor |
|
Fuel Type |
Diesel |
|
Application |
Mowing, Baling, Material Handling, Field Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Cummins B6.7, 6.7 L (408 cid), Turbocharged, Air-to-Air Aftercooled, Stage V |
|
Maximum Horsepower |
170 HP (128.6 kW) Rated, 195 HP (145 kW) Peak @ 2100 RPM |
|
Maximum Torque |
594 lb-ft (805 Nm) @ 1500 RPM |
|
Transmission Type |

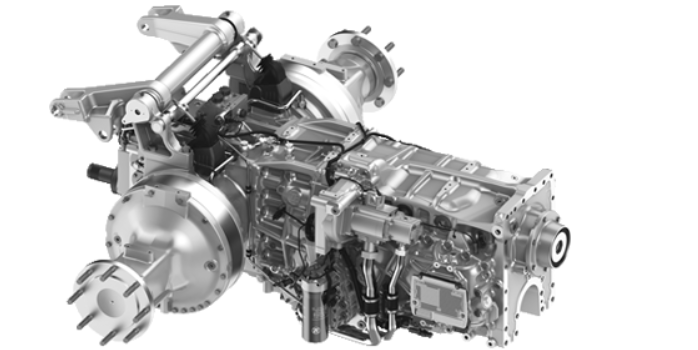

ZF Powershift, 30 FWD + 15 REV, 25 mph (40 km/h) max, Optional ZF CVT (0.02-40 km/h standard, 0.02-50 km/h optional) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Limited Slip, Optional Differential Lock or Suspended Differential Lock |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear, Standard) |
Factory-Ordered LSW Tyres |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V |
|
Fuel Tank Capacity |
99 U.S. gal (375 L) |
|
DEF Capacity |
9 U.S. gal (35 L) |
|
PTO Type |
Rear: 540/540e, 1000/1000e (1-3/8" 6-Spline, 21-Spline), Optional 1000 (1-3/4" 20-Spline); Front: 1000 (1-3/8" 21-Spline, CW Rotation) |
|
Hydraulic System |
Closed Centre Load Sensing, 31 gpm (120 L/min) Standard with 3 EHR Valves, 42 gpm (160 L/min) Optional with 5 EHR Valves, 2900 psi (197 bar) |
|
Rear 3-Point Hitch |
Category III/IIIN, 15,543 lbs (7040 kg) Capacity |
|
Front 3-Point Hitch |
Category III, 8,818 lbs (4000 kg) Capacity |
|
Drawbar |
Category III, Optional Heavy-Duty Category III |
|
Wheelbase |
114" (2896 mm) |
|
Base Weight |
18,894 lbs (7970 kg) |
|
Operator Platform |
Cab, 148 cu. ft. (4.19 cu. m), 74.05 sq. ft. (6.87 sq. m) Glass, Optional Semi-Active Suspended Cab, Optional Leather Seating |
|

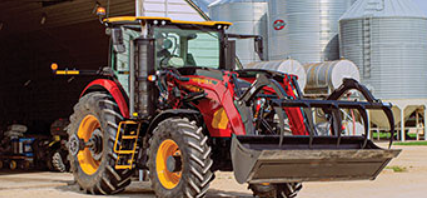

Front-End Loader |
102" (2591 mm) Bucket, Mechanical Self-Leveling, Soft Ride Kit, 5490 lbs (2490 kg) Lift Capacity, 181" (4.6 m) Max Lift Height |
