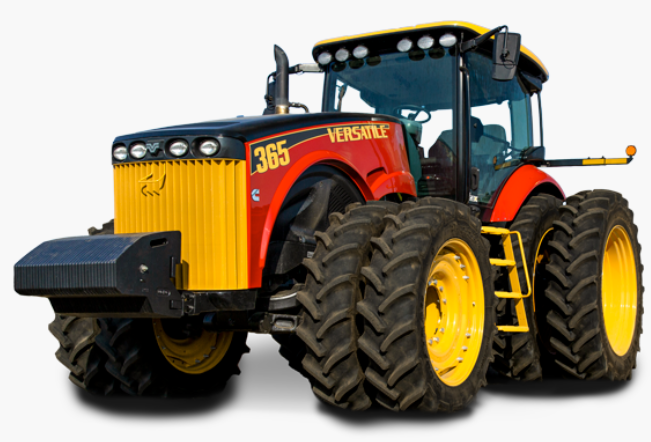

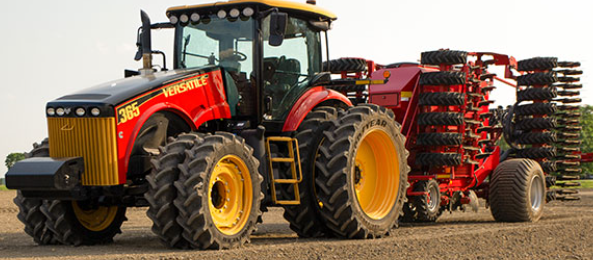

Versatile MFWD 365 – Row Crop Tractor for General Farm Work
Specifications
|
Specification |
Details |
|
Tractor Model |
MFWD 365 |
|
Vehicle Category |
MFWD Tractor |
|
Fuel Type |
Diesel |
|
Application |
Row Crop Agriculture, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Cummins QSL9, 9 L (549 cid), Turbocharged, Air-to-Air Aftercooled, Tier IV Final |
|
Maximum Horsepower |
365 HP (272 kW) Rated, 400 HP (298 kW) Peak @ 2100 RPM |
|
Maximum Torque |
1199 lb-ft (1626 Nm) @ 1500 RPM |
|
Transmission Type |
Powershift, 16 FWD + 9 REV, 25 mph (40 km/h) max |
|
Clutch |
Multi-Plate Bronze Friction Clutches |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Suspended with Differential Lock, Optional Limited Slip |
|
Rear Axle |
Heavy-Duty Cast Iron, Inboard Planetary |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear, Standard) |
Factory-Ordered LSW Tyres |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier IV Final |
|
Fuel Tank Capacity |
162 U.S. gal (613 L) |
|
DEF Capacity |
10 U.S. gal (38 L) |
|
PTO Type |
1000 RPM (1-3/4" 20-Spline), Optional 1000 RPM (1-3/8" 21-Spline) |
|
Hydraulic System |
Closed Centre Load Sensing, 55 gpm (208 L/min) Standard with 4 EHR Valves, 72 gpm (273 L/min) Optional with 6 EHR Valves, 2900 psi (200 bar) |
|
Rear 3-Point Hitch |
Category III/IVN, 17,260 lbs (7829 kg) Capacity |
|
Drawbar |
Category III Heavy-Duty, 2" (51 mm) Pin, Optional Heavy-Duty Fixed, Auto Hitch Pin |
|
Wheelbase |
128.95" (3275 mm) |
|
Base Weight |
28,060 lbs (12,728 kg), Recommended Operating GVW 35,400 lbs (16,057 kg) |
|
Operator Platform |
Cab, 149 cu. ft. (4.22 cu. m), 73.5 sq. ft. (6.83 sq. m) Glass, Air-Ride Suspension Seat, Optional Deluxe (Heated Cloth Seat, 110V AC, USB) or Deluxe Pro (12" Monitor, USB Ports) |
