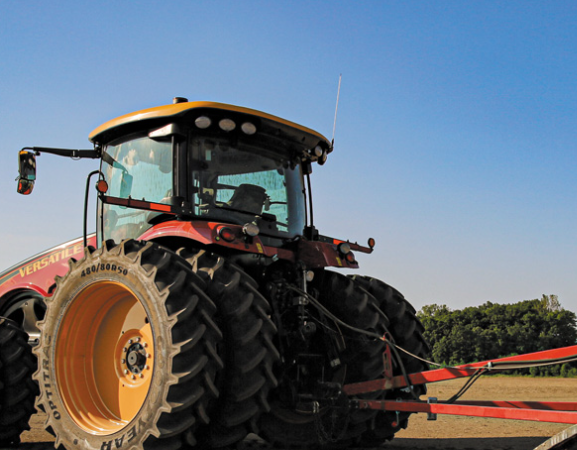

Versatile MFWD 315 – Row Crop Tractor for General Farm Work
Specifications
|
Specification |
Details |
|
Tractor Model |
MFWD 315 |
|
Vehicle Category |
MFWD Tractor |
|
Fuel Type |
Diesel |
|
Application |
Row Crop Agriculture, General Farm Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

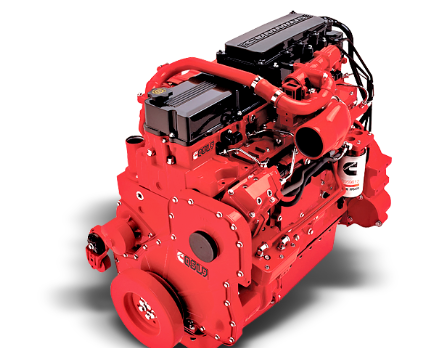

Cummins QSL9, 9 L (549 cid), Turbocharged, Air-to-Air Aftercooled, Tier IV Final |
|
Maximum Horsepower |
315 HP (235 kW) Rated, 340 HP (254 kW) Peak @ 2100 RPM |
|
Maximum Torque |
995 lb-ft (1350 Nm) @ 1500 RPM |
|
Transmission Type |
Powershift, 16 FWD + 9 REV, 25 mph (40 km/h) max |
|
Clutch |
Multi-Plate Bronze Friction Clutches |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Limited Slip, Optional Differential Lock |
|
Rear Axle |
Heavy-Duty Cast Iron, Inboard Planetary |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear, Standard) |
Factory-Ordered LSW Tyres |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier IV Final |
|
Fuel Tank Capacity |
162 U.S. gal (613 L) |
|
DEF Capacity |
10 U.S. gal (38 L) |
|
PTO Type |
1000 RPM (1-3/4" 20-Spline), Optional 1000 RPM (1-3/8" 21-Spline) or Dual 1000/540 RPM (1-3/4" 20-Spline, 1-3/8" 6-Spline) |
|
Hydraulic System |
Closed Centre Load Sensing, 55 gpm (208 L/min) Standard with 4 EHR Valves, 72 gpm (273 L/min) Optional with 6 EHR Valves, 2900 psi (200 bar) |
|
Rear 3-Point Hitch |
Category III/IIIN, 15,000 lbs (6804 kg) Capacity, Draft Load Sensing |
|
Drawbar |
Category III Heavy-Duty, 1-1/2" (38 mm) Pin, Optional Heavy-Duty Fixed (1-1/2" or 2" Pin), Auto Hitch Pin |
|
Wheelbase |
124.6" (3165 mm) |
|
Base Weight |
27,660 lbs (12,546 kg), Recommended Operating GVW 31,173 lbs (14,140 kg) |
|
Operator Platform |
Cab, 149 cu. ft. (4.22 cu. m), 73.5 sq. ft. (6.83 sq. m) Glass, Air-Ride Suspension Seat, Optional Deluxe (Heated Cloth Seat, 110V AC, USB) or Deluxe Pro (12" Monitor, USB Ports) |
