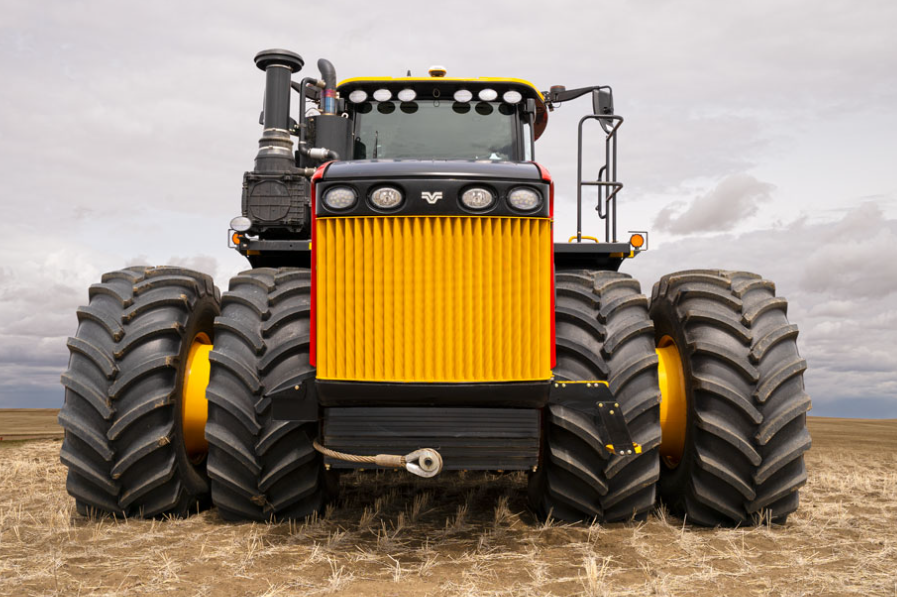

Versatile 4WD 405 – 4WD Tractor for Large-Scale Agriculture
Specifications
|
Specification |
Details |
|
Tractor Model |
4WD 405 |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
Large-Scale Agriculture, Heavy-Duty Field Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Cummins X12, 11.8 L (720 cid), Turbocharged, Air-to-Air Aftercooled, Stage V |
|
Maximum Horsepower |
400 HP (298 kW) Rated, 450 HP (336 kW) Peak @ 1800 RPM |
|
Maximum Torque |
1600 lb-ft (2169 Nm) @ 1400 RPM |
|
Transmission Type |
Cat® TA19 Powershift, 16 FWD + 4 REV, Programmable Auto-Shift (1650-2100 RPM), 22 mph (35 km/h) max |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Articulated, 28°/31°/33°/38° Articulation Angle, 12° Oscillation |
|
Differential Lock |
Optional (Front and Rear) |
|
Braking System |
Dual Hydraulic Self-Adjusting Disc Brakes (Front and Rear Axle) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear, Standard) |
Factory-Ordered LSW Tyres |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V |
|
Fuel Tank Capacity |
250 U.S. gal (946 L) |
|
DEF Capacity |
25 U.S. gal (95 L) |
|
PTO Type |
1000 RPM, 1-3/4" 20-Spline Shaft (Optional, Cannot be Combined with 3-Point Hitch) |
|
Hydraulic System |
Closed Centre Load Sensing, 53 gpm (201 L/min) Standard, 106 gpm (401 L/min) Optional, 6 Sets 1/2" Remote Couplers, 1 Set 3/4" Low-Pressure Return, 1/2" Case Drain, 2900 psi (197 bar) |
|
Rear 3-Point Hitch |
Category IVN/III, 13,000 lbs (5897 kg) Capacity (Optional, Cannot be Combined with PTO) |
|
Drawbar |
Category IV, 6000 lbs (2722 kg) Vertical Load, Optional Heavy-Duty (9000 lbs/4082 kg) |
|
Wheelbase |
135" (3429 mm) |
|
Base Weight |
31,500 lbs (14,288 kg), Recommended Operating GVW 40,000 lbs (18,144 kg) |
|

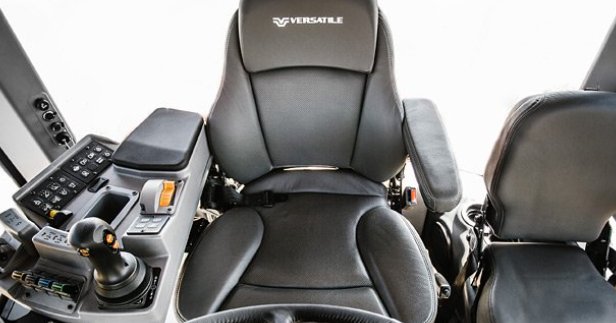

Operator Platform |
Cab, 175.5 cu. ft. (4.97 cu. m), 85.9 sq. ft. (7.98 sq. m) Glass, Semi-Active Suspension Seat, Optional Deluxe (Cloth Seat, Training Seat, 120V AC, Rear Sun Visor) or Deluxe Pro (12" Monitor, USB Ports) |
