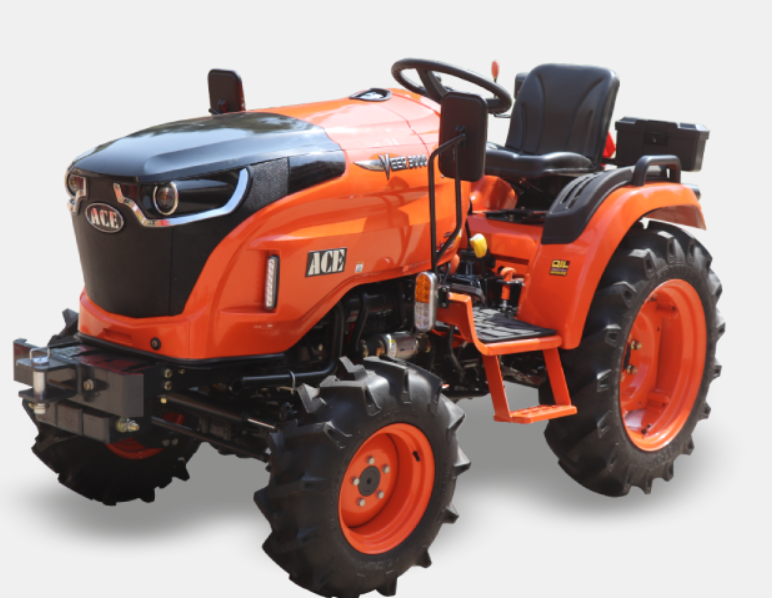

Veer 3000 4WD – Agricultural Tractor by ACE
Specifications
|
Specification |
Details |
|
Tractor Model |
Veer 3000 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
3ft Rotavator, 5 Tyne Cultivator, 6x4x2 Trolley, Sprayer suitable for 26 HP |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3-cylinder, Diesel, Mitsubishi MVS3L2 |
|
Number of Cylinders |
3 |
|
Displacement |
1318 cc |
|
Bore/Stroke |
78/92 mm |
|
Rated RPM |
1800 RPM |
|
Max Torque |
79.4 Nm @ 1800 RPM |
|
Air Cleaner |
Dry Air Cleaner with Clogging Sensor |
|
Transmission Type |
Synchromesh |
|
Drive Type |
4WD |
|
Number of Gears |
8 Forward + 8 Reverse |
|
Forward Speed Range |
Not Specified |
|
Reverse Speed Range |
Not Specified |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes |
|
Brake Actuation |
Hydraulic Actuation |
|
Parking Brake |
Hand Operated |
|
Steering Type |
Hydrostatic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 12 inches (4WD) |
|
Rear Tyres |
8.3 x 20 inches (4WD) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1200 kg |
|
Hydraulic Control System |
Automatic Draft Control with Dual Port DCV |
|
Hydraulic Pump |
Gear Type |
|
Power Take Off |
540/540E RPM, Mechanically Operated |
|
PTO Power |
22 HP |
|
Clutch Type |
Single |
|
Total Weight |
1000 kg (4WD) |
|
Electrical System |
12 Volts, 65 Ah Battery, 12V 35A Alternator, Seven Pin (Round) Trailer Socket |
|
Fuel Tank Capacity |
25 litres |
|
Warranty |
2 Years |
|
Minimum Turning Radius |
3.0 m (4WD) |
|
Additional Features |
Optional ROPS, Optional Front Weight, No Rear Weight, Front Weight Carrier (Hanging Weight Optional), Oil Immersed Disc Brakes |
|
Wheel Track |
940/870 mm (4WD) |
|
Overall Length |
2710 mm (4WD) |
|
Overall Width |
1170 mm (4WD) |
|
Height |
1355 mm (4WD) |
|
Ground Clearance |
350 mm (4WD) |
