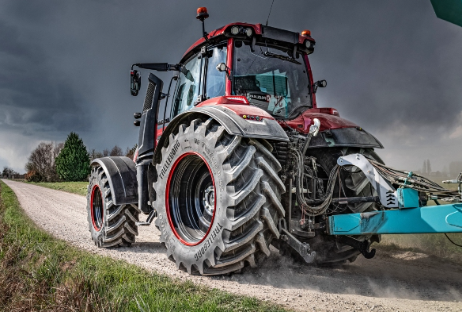

Valtra T235 – Agricultural Tractor by Valtra
Specifications
|
Specification |
Details |
|
Tractor Model |
T235 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
HiTech/Active/Versu: 173 kW / 235 HP (Max), 184 kW / 250 HP (Max Boost); Direct: 162 kW / 220 HP (Max), 184 kW / 250 HP (Max Boost) |
|
Engine Type |
AGCO Power 74 LFTN-D5 (6-cylinder) |
|
Engine Capacity |
7.4 Litres |
|
Engine Speed at Max Power |
1900 RPM |
|
Engine Nominal Speed |
2100 RPM |
|
Max Torque |
HiTech/Active/Versu: 930 Nm (Standard), 1000 Nm (Boost) at 1500 RPM; Direct: 900 Nm (Standard), 930 Nm (Boost) at 1500 RPM |
|
Transmission Type |
HiTech/Active/Versu: Powershift, 30+30R (5 speeds per work area, 4 work areas: A, B, C, D); Direct: CVT |
|
Speed Range |
HiTech/Active/Versu: 0.6–40 km/h or 0.7–50/57 km/h at 2100 RPM; Direct: 0.03–40/50/57 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle Suspension |
Pneumatic, AIRES |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
600/65R28 inches |
|
Standard Tyres Rear |
710/70R38 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540 at 1890 RPM, 1000 at 1897 RPM; Optional: 540E at 1522 RPM, Ground Speed (Ratio 41.03 for 40 km/h, 40.79 for 50 km/h) |
|
Hydraulics Type |
HiTech: Open Centre; Active/Versu/Direct: Load Sensing |
|
Hydraulic Pump |
HiTech: 73 l/min (90 l/min Optional); Active/Versu/Direct: 115 l/min (160 or 200 l/min Optional) |
|
Max Valves (Rear) |
HiTech: 2, 3, or 4 (Mechanical); Active/Versu/Direct: 2–5 (Electrical); Optional ON/OFF Valve: 1 |
|
Max Valves (Front) |
2, 3, or 4 (Electrical) |
|
Max Available Hydraulic Oil Volume |
HiTech: 40 Litres; Active/Versu/Direct: 47 Litres |
|
Max Lift Capacity (Rear) |
81 kN (Max, HiTech/Active); 95 kN (Max, Versu/Direct); 75 kN (Entire Lift Range, HiTech/Active); 89 kN (Entire Lift Range, Versu/Direct) |
|
Max Lift Capacity (Front) |
51 kN (Optional) |
|
Overall Width |
2200–2550 mm |
|
Overall Length |
5140 mm (Without Front Linkage); 5360 mm (With Front Linkage) |
|
Total Height |
3080–3130 mm (Without Valtra Guide); 3210 mm (With Valtra Guide) |
|
Ground Clearance |
Mid: 560 mm; Rear (No Hitch): 600 mm |
|
Wheelbase |
2995 mm |
|
Turning Radius |
5.25 m |
|
Total Weight |
7300 kg (Full Tanks, With Driver); 13500 kg (Max) |
|
Fuel Tank Capacity |
380 Litres (Basic); 250 Litres (Steel Tank); 70 Litres (AdBlue) |
