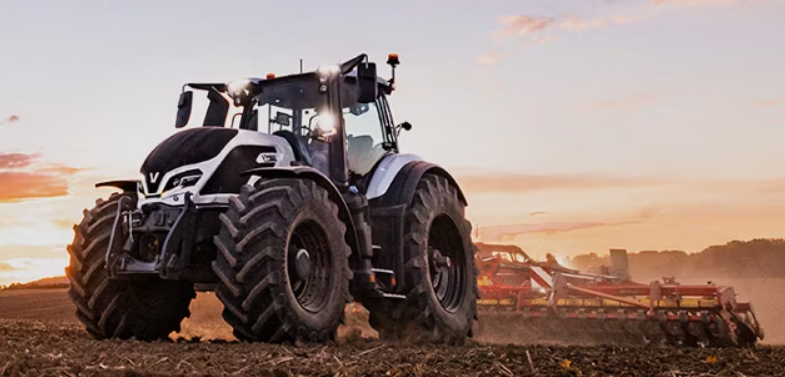

Valtra Q225 – Agricultural Tractor by Valtra
Specifications
|
Specification |
Details |
|
Tractor Model |
Q225 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
169 kW / 230 HP (Max); 184 kW / 250 HP (Max Boost) |
|
Engine Type |
AGCO Power 74 LFTN-D5 (6-cylinder) |
|
Engine Capacity |
7.4 Litres |
|
Engine Speed at Max Power |
1850 RPM |
|
Engine Nominal Speed |
1950 RPM |
|
Max Torque |
1000 Nm (Standard); 1100 Nm (Boost) at 1500 RPM |
|
Transmission Type |
CVT |
|
Speed Range |
Area A: 0–28 km/h; Area B: 0–53 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle Suspension |
Pneumatic, AIRES |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
600/70R30 inches |
|
Standard Tyres Rear |
710/70R42 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540E at 1577 RPM, 1000 at 1882 RPM; Optional: 1000E at 1605 RPM, 1000 at 1882 RPM |
|
Hydraulics Type |
Closed Centre Load Sensing |
|
Hydraulic Pump |
200 l/min at 1950 RPM (Standard); 200 l/min at 1650 RPM (ECO) |
|
Max Valves (Rear) |
4 (Standard, Electrical); 4 or 5 (With Decompression, Electrical) |
|
Max Valves (Front) |
2, 3, or 4 (Electrical) |
|
Max Available Hydraulic Oil Volume |
75 Litres |
|
Max Lift Capacity (Rear) |
100 kN (Max); 95 kN (Entire Lift Range) |
|
Max Lift Capacity (Front) |
42 kN (Optional) |
|
Overall Width |
2550–2615 mm |
|
Overall Length |
5461 mm (Without Front Linkage); 5556 mm (With Front Linkage) |
|
Total Height |
3266 mm (Without Valtra Guide); 3337 mm (With Valtra Guide); 3490 mm (With Beacon) |
|
Ground Clearance |
Mid: 565 mm; Rear (No Hitch): 588 mm |
|
Wheelbase |
3050 mm |
|
Turning Radius |
6.75 m |
|
Total Weight |
9200 kg (Full Tanks, With Driver); 16000 kg (Max) |
|
Fuel Tank Capacity |
430 Litres (Basic); 45 Litres (AdBlue) |
|
Exhaust Gas After-Treatment |
DOC + DPF + SCR |
