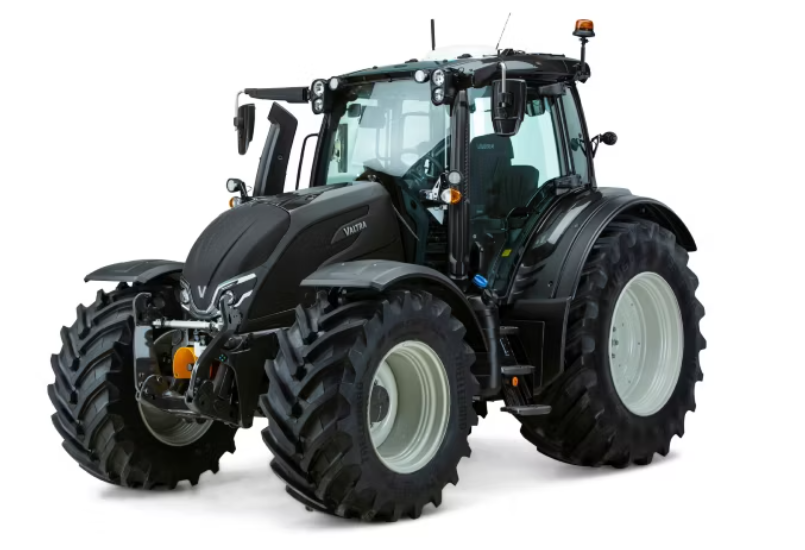

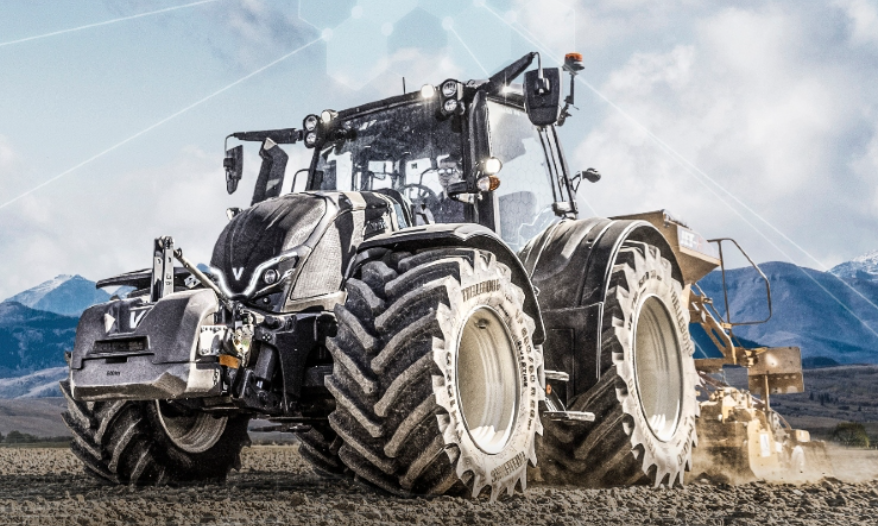

Valtra N135 – Agricultural Tractor by Valtra
Specifications
|
Specification |
Details |
|
Tractor Model |
N135 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
99 kW / 135 HP (Max); 107 kW / 145 HP (Max Boost) |
|
Engine Type |
AGCO Power 49 LFTN-D5 (4-cylinder) |
|
Engine Capacity |
4.9 Litres |
|
Engine Speed at Max Power |
2000 RPM |
|
Engine Nominal Speed |
2200 RPM |
|
Max Torque |
570 Nm (Standard); 620 Nm (Boost) at 1500 RPM |
|
Transmission Type |
HiTech/Active/Versu: Powershift, 20+20R (5 speeds per work area, 4 work areas: A, B, C, D), 30+30R with Creeper; Direct: CVT |
|
Speed Range |
HiTech/Active/Versu: 0.6–40 km/h or 0.7–50/57 km/h at 2100 RPM; Creeper: 0.6 or 0.7 km/h at 2200 RPM; Direct: 0.03–40/50/57 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle Suspension |
Pneumatic, AIRES |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
380/85R28 inches |
|
Standard Tyres Rear |
460/85R38 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540 at 1890 RPM, 1000 at 1897 RPM; Optional: 540E at 1522 RPM, Ground Speed (Ratio 41.03 for 40 km/h, 40.79 for 50 km/h) |
|
Hydraulics Type |
HiTech: Open Centre; Active/Versu/Direct: Load Sensing |
|
Hydraulic Pump |
HiTech: 73 l/min (90 l/min Optional); Active/Versu/Direct: 115 l/min (160 or 200 l/min Optional) |
|
Max Valves (Rear) |
HiTech: 2, 3, or 4 (Mechanical); Active/Versu/Direct: 2–5 (Electrical); Optional ON/OFF Valve: 1 |
|
Max Valves (Front) |
2, 3, or 4 (Electrical) |
|
Max Available Hydraulic Oil Volume |
HiTech: 40 Litres; Active/Versu/Direct: 47 Litres |
|
Max Lift Capacity (Rear) |
78 kN (Max); 76 kN (Entire Lift Range) |
|
Max Lift Capacity (Front) |
30 kN (Optional); 47 kN (Max) |
|
Overall Width |
2081–2550 mm |
|
Overall Length |
4726 mm (Without Front Linkage); 5156 mm (With Front Linkage) |
|
Total Height |
2960–3024 mm (Without Valtra Guide); 3104 mm (With Valtra Guide) |
|
Ground Clearance |
Mid: 500 mm; Rear (No Hitch): 595 mm |
|
Wheelbase |
2665 mm |
|
Turning Radius |
4.5 m |
|
Total Weight |
6500 kg (Full Tanks, With Driver); 11000 kg (Max) |
|
Fuel Tank Capacity |
235 Litres (Basic); 315 Litres (Optional Large Tank); 160 Litres (Steel Tank); 45 Litres (AdBlue) |
