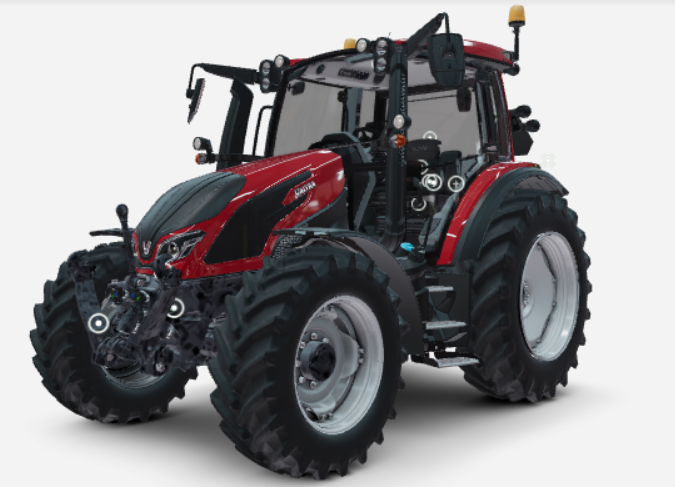

Valtra G135 – Agricultural Tractor by Valtra
Specifications
|
Specification |
Details |
|
Tractor Model |
G135 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
100 kW / 135 HP (Max); 107 kW / 145 HP (Max Boost) |
|
Engine Type |
AGCO Power 44 MBTN-D5 (4-cylinder) |
|
Engine Capacity |
4.4 Litres |
|
Engine Speed at Max Power |
2000 RPM |
|
Engine Nominal Speed |
2200 RPM |
|
Max Torque |
550 Nm (Standard); 560 Nm (Boost) at 1500 RPM |
|
Transmission Type |
Powershift, 24+24R (6 speeds per work area, 4 work areas: A, B, C, D); 48+48R with Creeper (Option) |
|
Speed Range |
1.65–43 km/h at 2200 RPM; 43 km/h at 1910 RPM (Standard) or 1640 RPM (EcoSpeed); Creeper: 0.11 km/h at 2200 RPM (Option) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
340/85R24 inches |
|
Standard Tyres Rear |
420/85R34 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540 at 1920 RPM, 1000 at 1964 RPM; Optional: 540E at 1560 RPM, Ground Speed (Ratio 29.23) |
|
Hydraulics Type |
HiTech: Open Centre; Active/Versu: Load Sensing |
|
Hydraulic Pump |
HiTech: 100 l/min; Active/Versu: 110 l/min |
|
Max Valves (Rear) |
HiTech: 2 or 3 (Mechanical); Active: 3 or 4 (Electrical); Versu: 4 (Electrical); Optional ON/OFF Valve: 1 |
|
Max Valves (Front) |
2, 3, or 4 (Electrical) |
|
Max Available Hydraulic Oil Volume |
24 Litres (44 Litres with Extra Filling) |
|
Max Lift Capacity (Rear) |
60 kN (Max); 50 kN (Entire Lift Range) |
|
Max Lift Capacity (Front) |
30 kN (Optional) |
|
Overall Width |
Max 2380 mm |
|
Overall Length |
4452 mm (Without Front Linkage); 4514 mm (With Front Linkage) |
|
Total Height |
2755–2830 mm (Without Valtra Guide); 2910 mm (With Valtra Guide) |
|
Ground Clearance |
Mid: 443 mm; Rear (No Hitch): 460 mm |
|
Wheelbase |
2550 mm |
|
Turning Radius |
4.36 m |
|
Total Weight |
5140 kg (Full Tanks, With Driver); 9500 kg (Max) |
|
Fuel Tank Capacity |
200 Litres (Basic); 160 Litres (Steel Tank); 21 Litres (AdBlue) |
