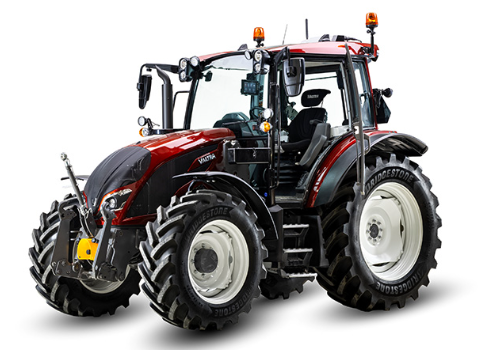

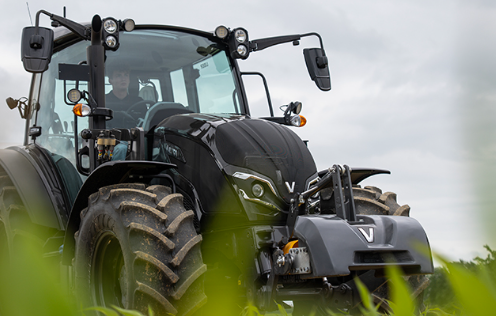

Valtra A115 – Agricultural Tractor by Valtra
Specifications
|
Specification |
Details |
|
Tractor Model |
A115 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
86 kW / 115 HP (Max) |
|
Engine Type |
AGCO Power 44 MBTN-D5 (4-cylinder) |
|
Engine Capacity |
4.4 Litres |
|
Engine Speed at Max Power |
2000 RPM |
|
Engine Nominal Speed |
2200 RPM |
|
Max Torque |
455 Nm at 1500 RPM |
|
Transmission Type |
HiTech4, Electronically controlled, 16+16R |
|
Speed Range |
Forward: 2.0–40 km/h; Creeper: 0.15 km/h at 2200 RPM (Option) |
Suspension & Brakes
|
Specification |
Details |
|
Trailer Brakes |
2-line hydraulic or 2-line pneumatic (Option) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
340/85R28 inches |
|
Standard Tyres Rear |
420/85R38 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/1000 at 1920/1960 RPM; 540/540E/1000 at 1920/1560/1960 RPM |
|
Hydraulics Type |
Open Centre |
|
Hydraulic Pump |
98 l/min (Max) |
|
Max Valves (Rear) |
2 or 3 (Mechanical) |
|
Max Available Hydraulic Oil Volume |
32 Litres |
|
Max Lift Capacity (Rear) |
4300 kN |
|
Max Lift Capacity (Front) |
2500 kN (Optional) |
|
Front Track Width |
1704 mm |
|
Overall Width |
2068–2250 mm |
|
Overall Length |
4367 mm (Without Front Weight); 4713 mm (With Front Weight) |
|
Total Height |
2749–2799 mm |
|
Ground Clearance |
Front: 446–496 mm; Mid: 428–478 mm; Rear: 456–506 mm |
|
Wheelbase |
2430 mm |
|
Turning Radius |
4.04 m (Track 1704 mm) |
|
Total Weight |
4305 kg (Empty Tanks); 8500 kg (Max) |
|
Fuel Tank Capacity |
200 Litres (Basic); 180 Litres (Steel Tank); 13 Litres (AdBlue) |
