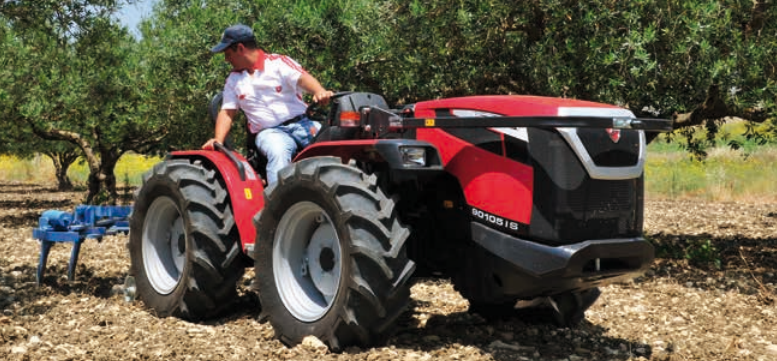

Valpadana VP 90115 AR – Isodiametric Tractor for Specialty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
VP 90115 AR |
|
Vehicle Category |
Isodiametric Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialty Farming (Orchards, Vineyards), Horticulture |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Deutz 2.9 TCD L4, 4 cylinders, 2.9 L, Turbo Intercooler, Common Rail, Stage 3B/Tier 4 Interim |
|
Maximum Horsepower |
102 HP (75 kW) @ 2200 RPM |
|
Maximum Torque |
410 Nm @ Rated RPM |
|
Transmission Type |
Mechanical Synchro Shuttle, 16 FWD + 16 REV, 4 Synchronized Gears, 4 Ranges, 800 m/h to 40 km/h, De-Clutch Button |
|
Clutch |
Multi-Disc Wet Clutch, Mechanical Engagement |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Articulated, 4WD, Electrohydraulic Engagement, 1.65 m Turning Radius (with 320/70R20 tyres) |
|
Differential Lock |
Electrohydraulic Differential Lock (Standard) |
|
Braking System |
Hydraulic Wet Disc Brakes (Front and Rear), Cable-Operated Parking/Emergency Brake |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear, Standard) |
320/70R20 (Adjustable Rim) |
|
Tyre Size (Optional) |
11.2R20, 280/70R18, 300/70R20, 320/65R18, 31x15.50-15 Garden, 440/50R17 |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage 3B/Tier 4 Interim |
|
Fuel Tank Capacity |
58 L |
|
PTO Type |
Electrohydraulic Engagement, 540/540E RPM, 1” 3/8 (34.9 mm) 6-Spline Shaft, Ground Speed PTO (Standard) |
|
Hydraulic System |
Open Centre, 50 + 25 L/min (Power Lift + Steering), 2 Rear Valves (1 STD + 1 Float, Standard), 4 Rear Valves (2 STD + 2 Float, Optional), Proportional Joystick Control (Optional) |
|
Rear 3-Point Hitch |
Category II, Mechanical Control (Standard), Draft and Position Control (Optional), Electronic Joystick (Optional), 2300 kg Lifting Capacity, Hydraulic Right Link and 3rd Point (Optional) |
|
Front 3-Point Hitch |
Category II, Mechanical Control, 1000 kg Lift Capacity (Optional, Assumed) |
|
Front Loader |
Valpadana Front Loader, Controlled by Joystick (Optional, Assumed) |
|
Wheelbase |
1495 mm |
|
Length |
3737 mm |
|
Height over ROPS/Cab |
2337–2456 mm (ROPS), 2129–2248 mm (Cab) |
|
Height over Steering Wheel |
1260 mm |
|
Ground Clearance |
160–279 mm |
|
Shipping Weight |
2205 kg |
|
Operator Platform |

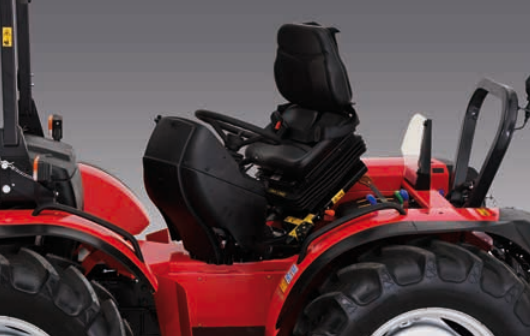

Reversible Platform with Silent-Block Suspension, Pneumatic Seat, Digital Instrumentation, Optional Cab with Heating, Air Conditioning, 4 Work Lights |
|
Overall Width |
1253–1573 mm |
