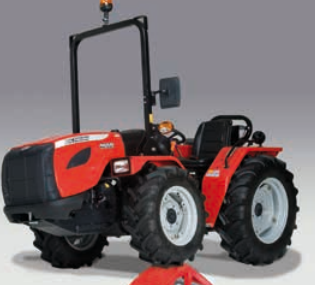

Valpadana VP 4645 VRM – Isodiametric Tractor for Specialty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
VP 4645 VRM |
|
Vehicle Category |
Isodiametric Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialty Farming (Vineyards, Orchards, Greenhouses, Nurseries), Green Area Maintenance |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, 1.642 L, Yanmar 3TNV88-BKVA, Direct Injection, 6 Valves, Tier 3 |
|
Maximum Horsepower |
35.4 HP (26 kW) @ 2800 RPM |
|
Maximum Torque |
105.4 Nm @ 1200 RPM |
|
Transmission Type |
Mechanical Synchronized, 8 FWD + 4 REV, Max Speed 30 km/h |
|
Clutch |
Synchronized Reverse Shuttle |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid, 4WD, Disengageable, ±15° Oscillation |
|
Steering |
Hydraulic, Front Axle, 42° Max Steering Angle, Central Drive System |
|
Differential Lock |
Mechanical, Front and Rear |
|
Braking System |
Mechanical Wet Multi-Disc Brakes (Rear) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front) |
7.50-16 or 260/70R16 |
|
Tyre Size (Rear) |
9.50R20 or 300/70R20 |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3 |
|
Fuel Tank Capacity |
35 L |
|
PTO Type |
Independent, Mechanical Engagement, 540 RPM, Synchronized with Transmission, 1 3/8" (34.9 mm) 6-Spline Shaft |
|
Hydraulic System |
Open Centre, 29.3 L/min Pump (Lift + Steering), 1 Double-Acting Rear Valve (Standard), 1 Additional Double-Acting Valve (Optional), Optional Draft Control |
|
Rear 3-Point Hitch |
Category I, Up/Down/Float Control, Drop Speed Regulator, 1000 kg Lifting Capacity, Optional Draft Control |
|
Front 3-Point Hitch |
Optional, Category I, 1000 kg Lift Capacity (Assumed) |
|
Front Loader |
Valpadana Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
1240 mm |
|
Length |
2922 mm |
|
Height over ROPS |
1954 mm |
|
Height over Steering Wheel |
1137 mm |
|
Ground Clearance |
208 mm |
|
Shipping Weight |
1320 kg (with 7.50-16 Front, 300/70R20 Rear Tyres) |
|

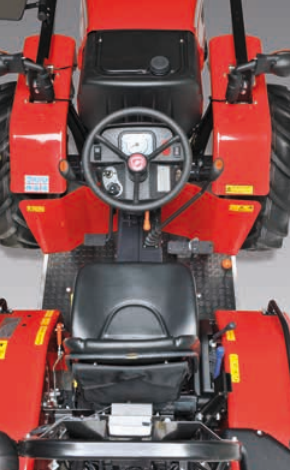

Operator Platform |
Semi-Platform, Folding ROPS, Suspended Seat, Adjustable Steering Wheel |
|
Weights |
2x33 kg (Front), 2x55 kg (Rear, Optional) |
|
Overall Width (Min-Max) |
1178-1494 mm (Front), 1290-1472 mm (Rear) |
|
Track Width (Min-Max) |
970-1286 mm (Front), 936-1250 mm (Rear) |
