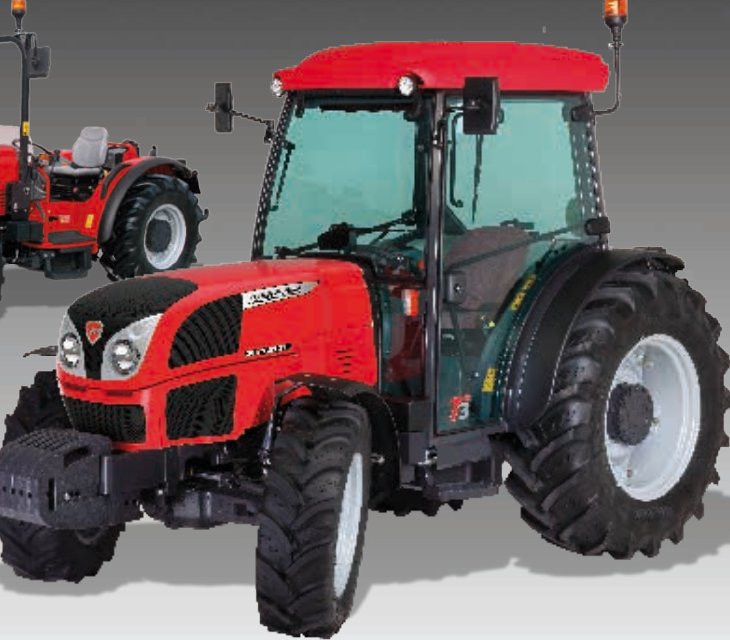

Valpadana VP 36110 F – Narrow Tractor for Specialty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
VP 36110 F |
|
Vehicle Category |
Narrow Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialty Farming (Orchards, Vineyards), Medium-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.4 L, Perkins 1104D-44TA, Direct Injection, Turbo, Aftercooled, Tier 3 |
|
Maximum Horsepower |
99 HP (73 kW) @ Rated RPM |
|
Maximum Torque |
412 Nm @ Rated RPM |
|
Transmission Type |
Power Shuttle (15 FWD + 15 REV, Speed Five; 30 FWD + 30 REV, Power Five; 40 FWD + 40 REV with Creeper, Optional) |
|
Clutch |
Independent Dry Dual Clutch (12 in.) or Multi-Disc Wet Clutch, Button-Operated Declutch Control |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid, 4WD, Electrohydraulic Engagement, 55° Max Steering Angle |
|
Differential Lock |
Electrohydraulic Twin-Lock (Standard) |
|
Braking System |
Graphite-Coated Wet Multi-Disc Brakes (8 Rear, 4 Front), Integral Braking System (IBS) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front) |
280/70R16 |
|
Tyre Size (Rear) |
14.9R24 |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3 |
|
Fuel Tank Capacity |
65 L |
|
PTO Type |
Hydra-PTO, Wet Multi-Disc Clutch, Electrohydraulic Control, 540/750 RPM (Standard), 540/1000 RPM (Optional), 83 HP (61 kW) Net PTO Power |
|
Hydraulic System |
Open Centre, 52.3+29.9 L/min (Hitch + Steering) or 29.9+29.9+41 L/min (Triple Pump), 2 Rear Valves (Standard), Optional Flow Diverter, Optional 3 Front Valves + Joystick |
|
Rear 3-Point Hitch |
Category II, Mechanical Control (Standard), Electronic Control (Cab Version, Optional), 2600 kg Lifting Capacity |
|
Front 3-Point Hitch |
Optional, Category II, 2000 kg Lift Capacity (Assumed) |
|
Front Loader |
Valpadana Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2134 mm (4WD), 2174 mm (2WD) |
|
Length |
4009 mm |
|
Height over ROPS/Cab |
2315 mm (ROPS), 2260 mm (Cab) |
|
Height over Steering Wheel |
1440 mm |
|
Ground Clearance |
220 mm (4WD) |
|
Shipping Weight |
2615 kg (2WD), 2845 kg (4WD), +130 kg (Cab) |
|
Operator Platform |

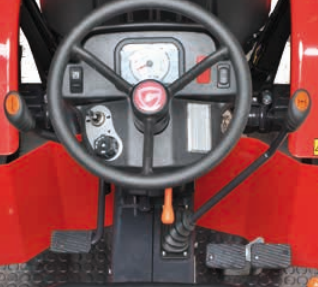

Total View Cab or ROPS, ISO-Mounted Platform, Heating/Ventilation, Air Conditioning, Radio Adaptor |
|
Overall Width |
1437 mm |
