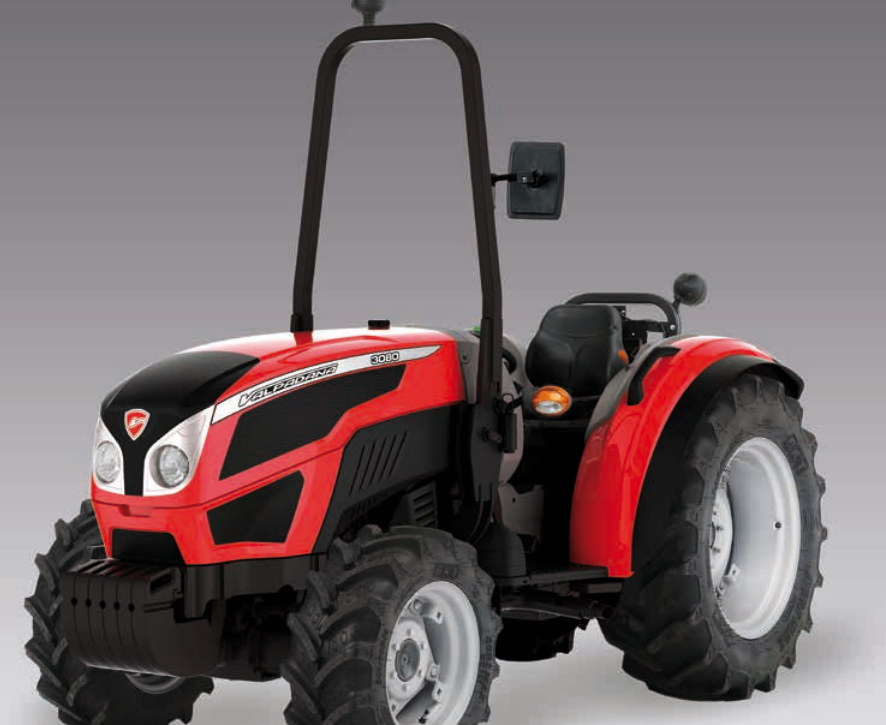

Valpadana VP 3080 – Narrow Tractor for Specialty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
VP 3080 |
|
Vehicle Category |
Narrow Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialty Farming (Vineyards, Orchards), Horticulture, Greenhouse Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler, 4 cylinders, 2.5 L, Turbo, Stage 3B/Tier 4 Interim |
|
Maximum Horsepower |
75 HP (55 kW) @ Rated RPM |
|
Maximum Torque |
300 Nm @ Rated RPM |
|
Transmission Type |
Mechanical Speed Four with Creeper and Synchro Shuttle, 16 FWD + 16 REV, 40 km/h max |
|
Clutch |
Multi-Disc Wet Clutch, Mechanical Engagement |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid, 4WD, Electrohydraulic Engagement, 55° Max Steering Angle |
|
Differential Lock |
Limited Slip (Standard) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage 3B/Tier 4 Interim |
|
PTO Type |
Mechanical Engagement, 540/540E or 540/1000 RPM (Optional), Ground Speed PTO (Optional), 1” 3/8 (34.9 mm) 6-Spline Shaft |
|
Hydraulic System |
Open Centre, 50 + 28 L/min (Power Lift + Steering), 1 Rear Valve (Standard), 3 Rear Valves (Optional) |
|
Rear 3-Point Hitch |
Category II, Mechanical Control, Ergonomic Lift System (Optional), 2300 kg Lifting Capacity |
|
Wheelbase |
1950 mm |
|
Height over Steering Wheel |
1256 mm |
|
Shipping Weight |
2000 kg |
|
Operator Platform |
Suspended Platform, Sprung Seat, Optional Low-Profile Cab with Heating, Air Conditioning, Radio Predisposition |
