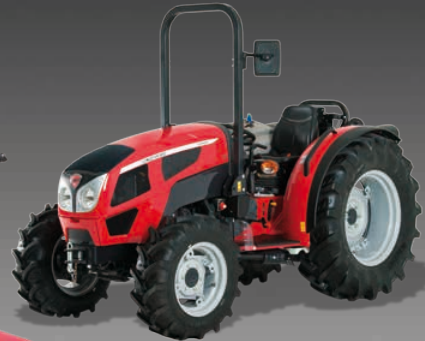

Valpadana VP 1545 STD – Narrow Tractor for Specialty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
VP 1545 STD |
|
Vehicle Category |
Narrow Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialty Farming (Orchards, Vineyards), Light-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Yanmar 4TNV84-KLAN, 4 cylinders, 1.995 L, Direct Injection, Tier 3 |
|
Maximum Horsepower |
44 HP (32 kW) @ 2800 RPM |
|
Maximum Torque |
129 Nm @ 1400 RPM |
|
Transmission Type |
Mechanical Reverse Shuttle (12 FWD + 12 REV, 30 km/h; 16 FWD + 16 REV with Creeper, Optional) |
|
Clutch |
Independent Dry Dual Clutch, 9 in. (228 mm), Mechanical Engagement |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid, 4WD, Mechanical Engagement, 55° Max Steering Angle |
|
Differential Lock |
Electrohydraulic Twin-Lock (Standard) |
|
Braking System |
Graphite-Coated Wet Multi-Disc Rear Brakes (6 Discs), Mechanical Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front) |
260/70R16 |
|
Tyre Size (Rear) |
320/70R24 |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3 |
|
Fuel Tank Capacity |
40 L |
|
PTO Type |
Mechanical Engagement, 540 RPM (Standard), 540/750 RPM (Optional), 1” 3/8 (34.9 mm) 6-Spline Shaft, Ground Speed PTO (Optional with 2-Speed PTO), 40 HP (29 kW) Net PTO Power |
|
Front PTO |
Mechanical Engagement, 1000 RPM, 1” 3/8 (34.9 mm) 6-Spline Shaft (Optional) |
|
Hydraulic System |
Open Centre, 28 + 19.7 L/min (Power Lift + Steering), 180 bar, 2 Rear Valves (Standard), 3 Rear Valves (Optional) |
|
Rear 3-Point Hitch |
Category I, Mechanical Draft and Position Control, 1200 kg Lifting Capacity |
|
Front 3-Point Hitch |
Category I, Mechanical Control, 400 kg Lift Capacity (Optional) |
|
Front Loader |
Valpadana Front Loader, Controlled by Joystick (Optional, Assumed) |
|
Wheelbase |
1760 mm (4WD) |
|
Length |
3225 mm (with Ballast) |
|
Height over ROPS/Cab |
2097 mm (ROPS), 2307 mm (Cab) |
|
Height over Steering Wheel |
1312 mm |
|
Ground Clearance |
385 mm |
|
Shipping Weight |
1460 kg (4WD), +150 kg (Cab) |
|
Operator Platform |
X2 Series Cab or ROPS, ISO-Mounted Platform, Sprung Seat, Analog Instruments, Heating/Ventilation, Air Conditioning, Radio Fitting, Opening Front/Rear Windscreens, Rear Wiper (Optional) |
|
Overall Width |
1383 mm |
