Specification

Details

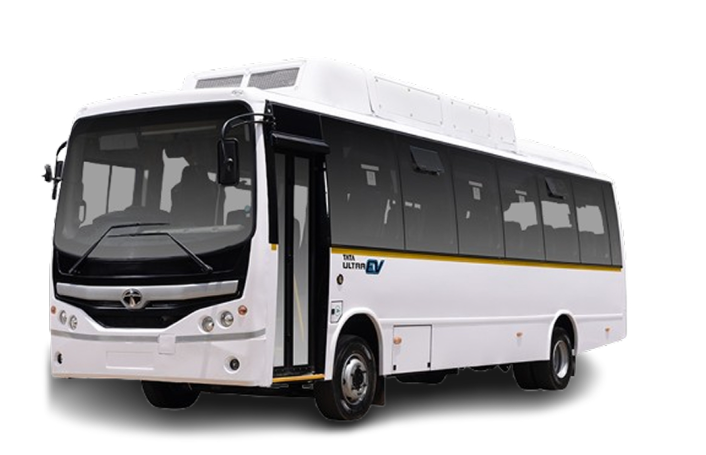

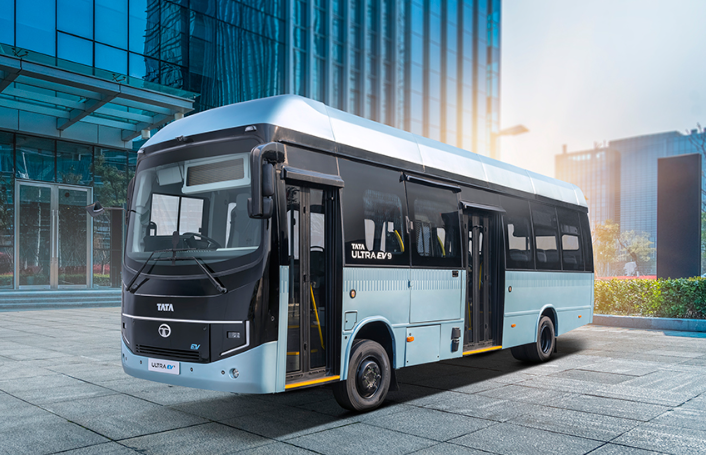

Bus Model

Ultra 9/9 EV

GVW

11500 kg

Overall Length

9200 mm + 50 mm

Wheelbase

4920 mm

Overall Height

3230 mm + 50 mm

Floor Height

900 mm

Overall Width

2340 mm (without mirrors)

Passenger Door

1 or 2 as per requirement

Turning Circle Diameter

16.9 m

LV System Voltage

24 V

Tyres

245/70 R17.5, 7 nos.

Brakes

Front Disc and Rear Drum

Suspension

Air Suspension

Steering

Integral Hydraulic Power Assisted

Traction Motor Peak Power

215 kW

Traction Motor Continuous Power

145 kW

Traction Motor Peak Torque

2200 Nm

Traction Motor Continuous Torque

1273 Nm

HV Battery

657 V DC

Battery Energy

200 kWh

Transmission

Direct Drive

Charger

Off board charging, CCS 2 Charging Standard

Max Speed

75 kmph

Gradeability

18%

Acceleration

As per CMVR

Seating Capacity

34/31/23

Seating Layout

2x2, 2x1

Seat Type

High Head Rest/Hi Back Reclining/Push Back Seats

Fuel Type

Electric

Application

Staff & Contract Buses

Specification

Details

Feature: Warranty

4 Years/4 Lakh kms

Feature: Bus Body Warranty

3 Years/3 Lakh kms

Feature: Multiple Body Width Options

2200 MM / 2340 MM & 2550 MM

Feature: Cooling System

E Viscous Fan

Feature: Tyre Type

Low CRR Radial Tubeless & Tubetype Tyre

Feature: Telematics

4G Telematic Solution with FOTA

Feature: Steering Wheel

Modular steering wheel with Cruise Control

Feature: Safety System

Fire detection and alarm system; Exceeds CMVR, AIS 052, AIS 063, AIS 153 standards; Advanced braking systems; Impact-resistant materials; Strategic emergency exits

Feature: Efficiency

Multi Mode Fuel Economy Switch

Feature: Stability Control

Electronic Stability Control with Hill Start Assist

Feature: Driver Comfort

Driver suspended Seats

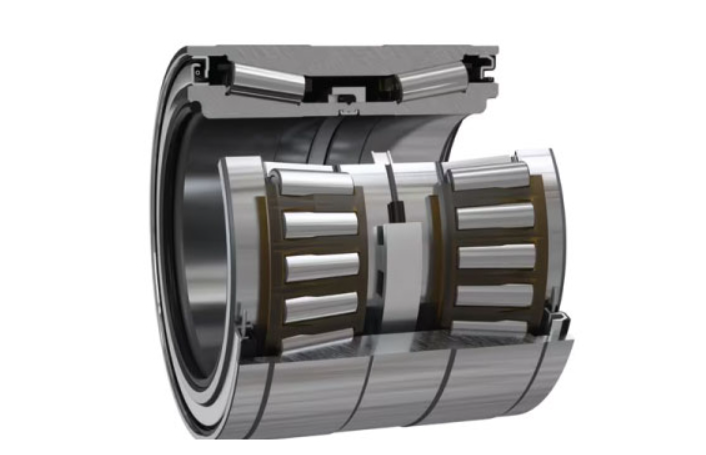

Feature: Wheel Bearing

Unitised Wheel Bearing

Feature: Seating Comfort

Wider seats, armrests, mobile chargers, added leg space, reclining seats

Feature: Suspension

Improved suspension

Feature: Noise Reduction

Reduced Noise, Vibration & Harshness (NVH)

Feature: Bus Body Design

Superior bus body design in collaboration with ACGL, prioritizing structural integrity and aesthetics

Feature: Service Interval

Service interval of 40,000 km

Benefit: Safety

Sturdy build quality for passenger & driver safety

Benefit: Performance

More reliable, better performance, more profits to customers

Benefit: Seating Comfort

Increased number of seats and seat width for seating comfort

Benefit: Efficiency

More trips with highest fuel economy

Benefit: Aesthetics

Refreshed look, end customer preference

Benefit: Passenger Comfort

Increased comfort and convenience to passengers

Benefit: Resale Value

Better resale value

Benefit: Noise Reduction

Low noise, vibration & harshness

Benefit: Maintenance

Low maintenance with value-added service options

Benefit: Customer Support

24x7 customer care and roadside assistance

Benefit: Spare Parts

Spare part availability across the country
