Specification

Details

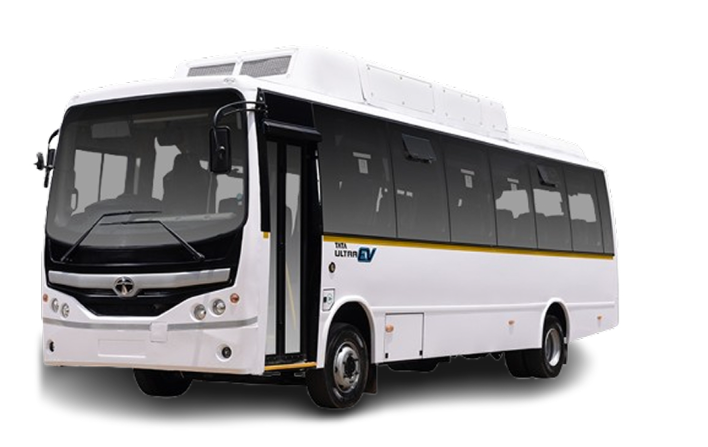

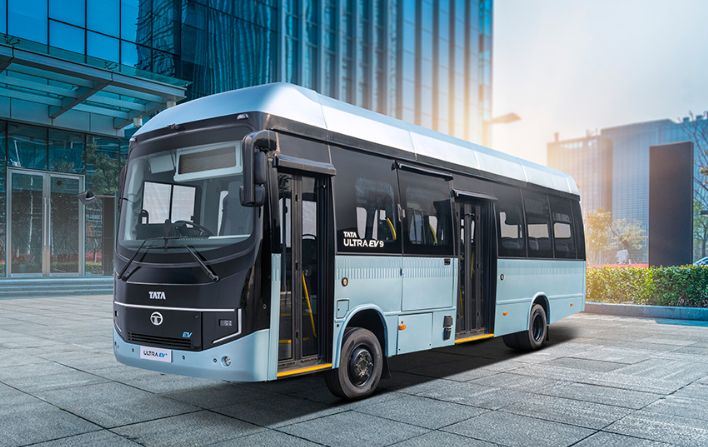

Bus Model

Ultra 9/7

Motor

Peak / Cont Power: 213 / 144 kW, Peak / Cont Torque: 2432 / 1273 Nm

HV Battery Spec

200 kWh (Total Capacity)

Charger Type

CCS 2

Brakes

Pneumatic: Front / Rear - Disc / Drum, EBS + ESC

Suspension Front

Air Suspension

Suspension Rear

Air Suspension, Ride Optimization

Steering

Motor-driven Hydraulic PAS, Tilt & Telescopic Modeled

Battery

24 V (LV System Voltage)

Tyres

245/70R 17.5

Max. GVW

9500 kg (FAW 4500 kg, RAW 5000 kg)

Seating Capacity

19 + Driver (2x1); 15-25

Length

7150 mm

Rear Overhang

1870 mm

Front Overhang

1830 mm

Overall Height

3200 mm

Max. Width

2340 mm

Floor Height

900 mm

TCD

<14 m

Ground Clearance

180 mm

Max Speed

75 km/h

Restart Ability

23 % @ Rated GVW

Acceleration

 0.8 m/sec²

Acceleration 0-30 km/hr

As per CMVR

FDAS / FDSS / FPS

FDAS

AC / Non-AC Option

Both

Fuel Type

EV

Application

Staff & Contract Buses

Specification

Details

Warranty Feature

4 Years/4 Lakh kms Warranty

Bus Body Warranty Feature

3 Years/3 Lakh kms Bus Body Warranty

Body Width Feature

Multiple Body Width Option 2200 MM / 2340 MM & 2550 MM

Cooling Feature

E Viscous Fan

Tyre Feature

Low CRR Radial Tubeless & Tubetype Tyre

Telematics Feature

4G Telematic Solution with FOTA

Steering Feature

Modular steering wheel with Cruise Control

Safety Feature

Fire detection and alarm system; Control camera; Video surveillance system; ITS Enabled Bus; Exceeds CMVR, AIS 052, AIS 063, AIS 153 standards; Advanced braking systems; Impact-resistant materials; Strategic emergency exits

Efficiency Feature

Multi Mode Fuel Economy Switch; Regenerative braking technology

Stability Feature

Electronic Stability Control with Hill Start Assist

Driver Comfort Feature

Driver suspended Seats

Transmission Feature

Torque Based Gear Shift Advisor

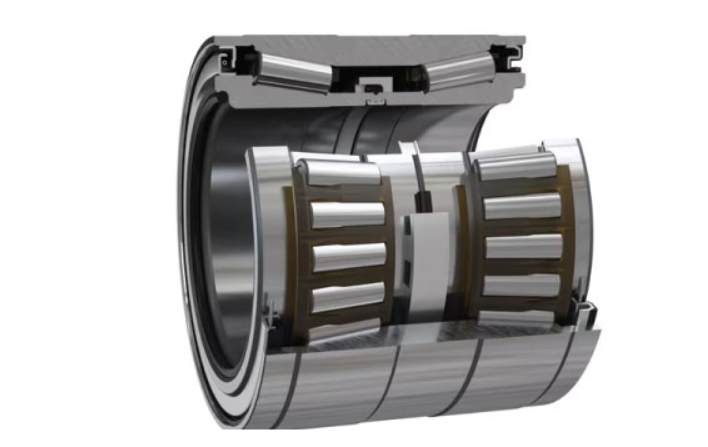

Wheel Bearing Feature

Unitised Wheel Bearing

Seating Feature

Wider seats, armrests, mobile chargers, added leg space, reclining seats; Floor Mounted Passenger Seat

Suspension Feature

Improved suspension

NVH Feature

Reduced Noise, Vibration & Harshness; Zero-emission and noiseless operations

Body Design Feature

Superior bus body design in collaboration with ACGL, prioritizing structural integrity and aesthetics

Service Interval Feature

40,000 km

Connectivity Feature

Passenger WiFi; ITS Enabled bus; Automatic Passenger Counter

Lighting Feature

LED Type Lamps

Partition Feature

Partitions for passengers

Charging Feature

Fast charging capability (full recharge in 2.5 hours)

Benefit: Safety

Sturdy build quality for passenger & driver safety

Benefit: Performance

More reliable, better performance, more profits to customers

Benefit: Capacity

Increased number of seats and seat width for seating comfort

Benefit: Efficiency

More trips with highest fuel economy

Benefit: Aesthetics

Refreshed look, end customer preference

Benefit: Passenger Comfort

Increased comfort and convenience to passengers

Benefit: Resale Value

Better resale value

Benefit: NVH

Low noise, vibration & harshness

Benefit: Maintenance

Low maintenance with value-added service options

Benefit: Customer Support

24x7 customer care and roadside assistance

Benefit: Spare Parts

Spare part availability across the country
