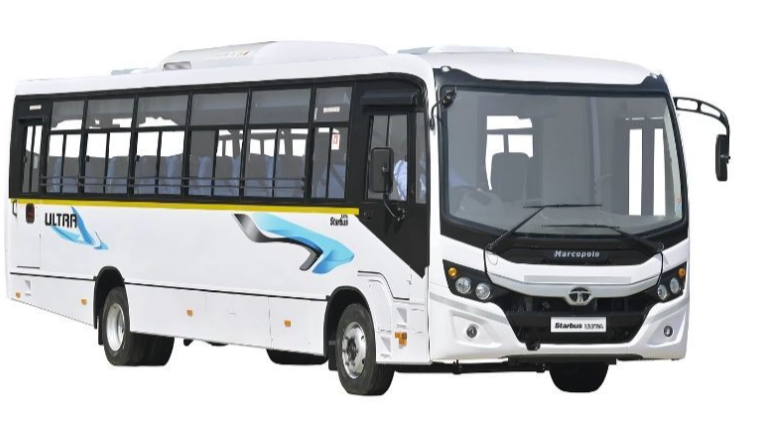

ULTRA 19 plus A plus D LP 410 29 – Tata Motors Bus
Specifications
|
Specification |
Details |
|
Chassis Platform |
LP 410/29 BS VI |
|
Wheelbase |
2955 mm |
|
Engine |
TATA 4SP CR |
|
Engine Power |
74 kW @ 2800 r/min |
|
Engine Torque |
300 Nm @ 1200-2200 r/min |
|
Clutch Diameter |
280 mm |
|
Gearbox |
GB400 - Cable Shift |
|
Brakes |
Air Brakes |
|
Suspension |
Parabolic Suspension |
|
Steering |
Power-Steering, Tilt - Telescope |
|
Battery |
12 V, 100 Ah |
|
Alternator |
75 A |
|
Tyres |
Not specified |
|
Fuel Tank Capacity |
Not specified |
|
Max. GVW |
Not specified |
|
Seating Capacity |
26 - 60 |
|
Length |
Not specified |
|
Rear Overhang |
Not specified |
|
Front Overhang |
Not specified |
|
Overall Height |
Not specified |
|
Max. Width |
Not specified |
|
TCD |
Not specified |
|
Ground Clearance |
Not specified |
|
AC / Non-AC Option |
Not specified |
|
Fuel Type |
CNG |
|
Application |
School Buses |
Components & Features
|
Specification |
Details |
|
Feature: Warranty |
4 Years/4 Lakh kms |
|
Feature: Bus Body Warranty |
3 Years/3 Lakh kms |
|
Feature: Multiple Body Width Options |
2200 MM / 2340 MM & 2550 MM |
|
Feature: Engine Efficiency |
Fuel efficient 3.8 SGI Engine with Balanced power & Torque |
|
Feature: Cooling System |
E Viscous Fan |
|
Feature: Tyre Type |
Low CRR Radial Tubeless & Tubetype Tyre |
|
Feature: Telematics |
4G Telematic Solution with FOTA |
|
Feature: Steering Wheel |
Modular steering wheel with Cruise Control |
|
Feature: Fuel Filling System |
Integrated fuel filling system for Fast & Slow filling |
|
Feature: Safety System |
Fire detection and alarm system; Exceeds CMVR, AIS 052, AIS 063, AIS 153 standards; Advanced braking systems; Impact-resistant materials; Strategic emergency exits |
|
Feature: Fuel Economy Switch |
Multi Mode Fuel Economy Switch |
|
Feature: Stability Control |
Electronic Stability Control with Hill Start Assist |
|
Feature: Driver Comfort |
Driver suspended Seats |
|
Feature: Gear Shift Advisor |
Torque Based Gear Shift Advisor |
|
Feature: Wheel Bearing |
Unitised Wheel Bearing |
|
Feature: Seating Comfort |
Wider seats, armrests, mobile chargers, added leg space, reclining seats |
|
Feature: Suspension |
Improved suspension |
|
Feature: Noise Reduction |
Reduced Noise, Vibration & Harshness (NVH) |
|
Feature: Bus Body Design |
Superior bus body design in collaboration with ACGL, prioritizing structural integrity and aesthetics |
|
Feature: Service Interval |
Service interval of 40,000 km |
|
Benefit: Safety |
Sturdy build quality for passenger & driver safety |
|
Benefit: Performance |
More reliable, better performance, more profits to customers |
|
Benefit: Seating Comfort |
Increased number of seats and seat width for seating comfort |
|
Benefit: Fuel Economy |
More trips with highest fuel economy |
|
Benefit: Aesthetics |
Refreshed look, end customer preference |
|
Benefit: Passenger Comfort |
Increased comfort and convenience to passengers |
|
Benefit: Resale Value |
Better resale value |
|
Benefit: Noise Reduction |
Low noise, vibration & harshness |
|
Benefit: Maintenance |
Low maintenance with value-added service options |
|
Benefit: Customer Support |
24x7 customer care and roadside assistance |
|
Benefit: Spare Parts |
Spare part availability across the country |
