Specification

Details

Model

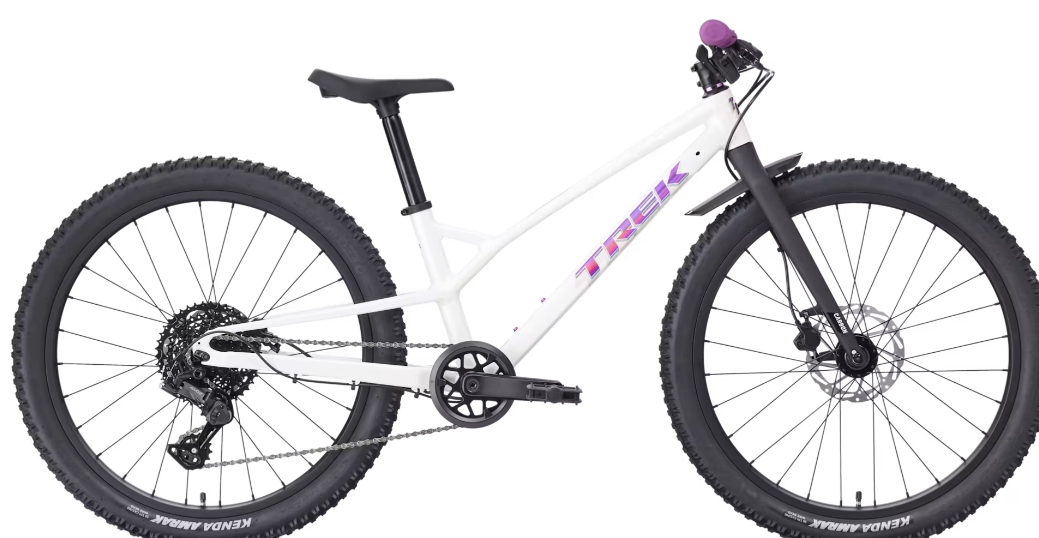

Wahoo 24 Trail

Vehicle Category

Kids' Hybrid Bike

Application

Trail riding, recreational off-road, light commuting

Starting Price (2025)

$799.99 USD

Color Options

Crystal White, Green

Sizes

24" wheel (for riders 51-59" tall)

Specification

Details

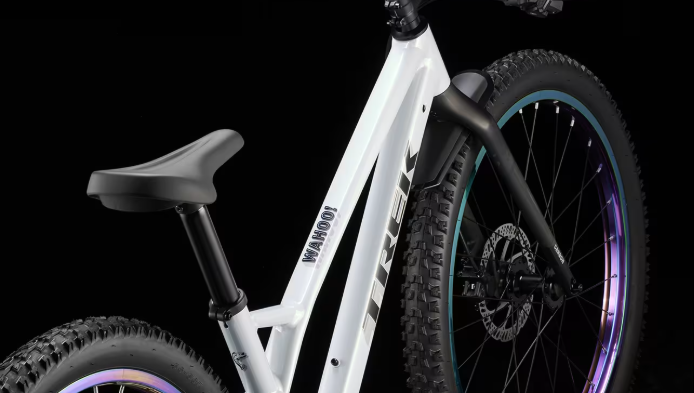

Frame

Alpha Silver Aluminum, internal cable routing, rack and fender mounts, 135x5mm QR

Fork

Manitou Machete Junit 24, 100mm travel, 100x5mm QR

Drivetrain Compatibility

Shimano Altus, 1x9-speed, mechanical

Dropouts

100x5mm QR (F), 135x5mm QR (R)

Crank

Prowheel alloy, 32T, 152mm length

Chain

KMC X9

Rear Derailleur

Shimano Altus M2000, 9-speed, mechanical

Shifters

Shimano Altus M2010, 9-speed, mechanical

Cassette

Shimano HG200, 11-36T, 9-speed

Specification

Details

Seating

Bontrager Arvada, 138mm width

Cargo Capacity

Rack and fender mounts, downtube water bottle mounts

Wheels/Tyres

Bontrager Connection, double-wall, 24x2.35", Kenda Havok

Wheel Size

24" in

Brakes

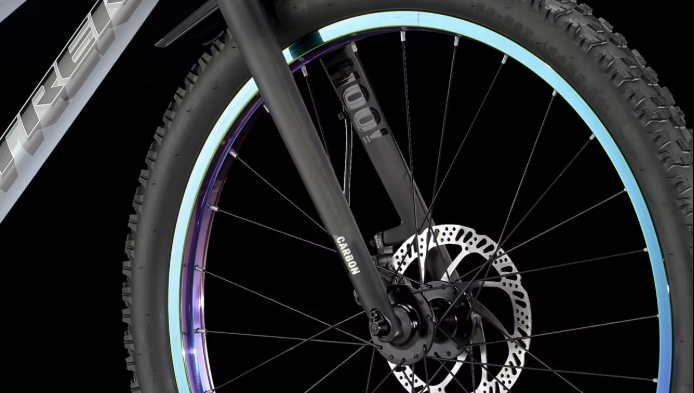

Tektro HD-M275, hydraulic disc, 160mm rotor (F, R)

Brake Levers

Tektro, short-reach, hydraulic

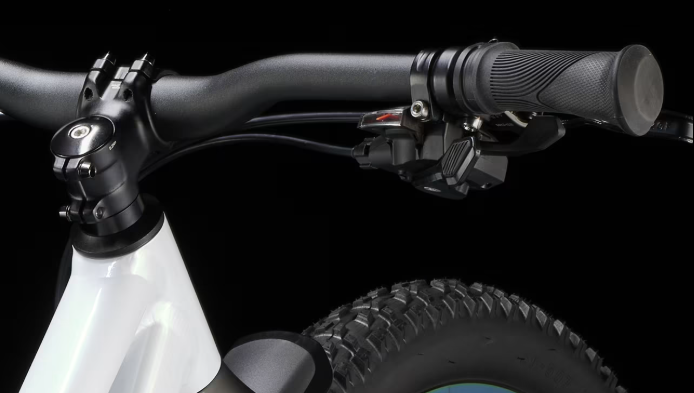

Handlebar

Bontrager alloy, 31.8mm, 15mm rise, 580mm width

Stem

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length

Headset

1-1/8" threadless, semi-integrated

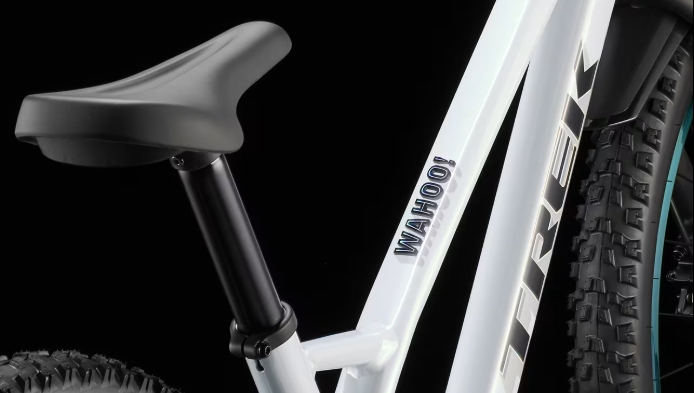

Saddle

Bontrager Arvada, 138mm width

Seatpost

Bontrager alloy, 27.2mm, 12mm offset, 330mm length

Seatpost Clamp

Integrated, internal

Grips

Bontrager XR Trail Comp, nylon lock-on

Front Hub

Formula alloy, 100x5mm QR

Rear Hub

Formula alloy, 135x5mm QR

Rims

Bontrager Connection, double-wall, 24", 32-hole

Spokes

14g stainless steel

Pedals

Wellgo nylon platform, kids' size

Exterior Features

Rack and fender mounts, downtube water bottle mounts, kickstand mount
