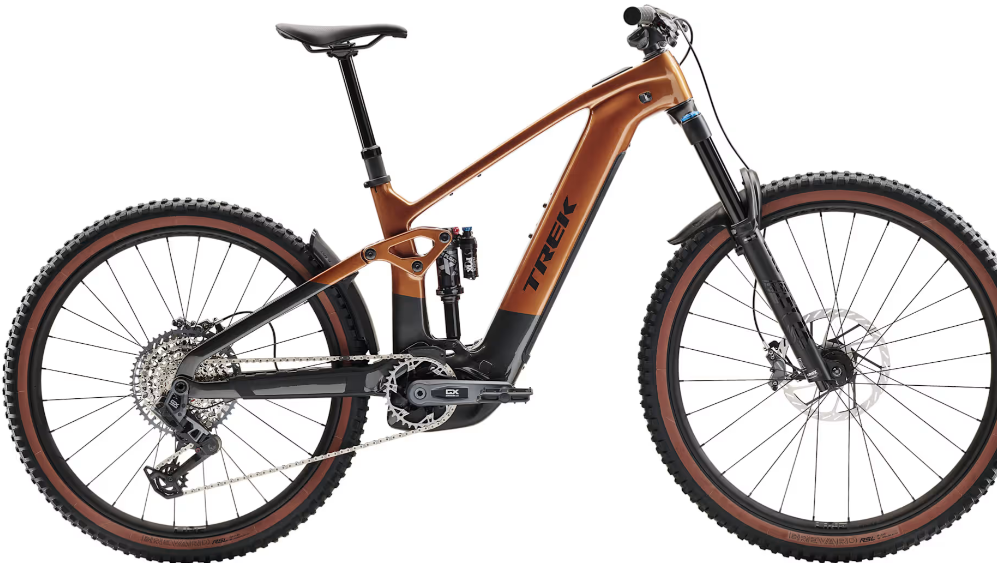

2025 Trek Rail+ 9.8 GX AXS T-Type Gen 5 – Electric Enduro Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Rail+ 9.8 GX AXS T-Type Gen 5 |
|
Vehicle Category |
Electric Enduro Mountain Bike |
|
Application |
Enduro, trail riding, big mountain adventures |
|
Starting Price (2025) |
$10,699.99 USD |
|
Color Options |
Pennyflake, Black-Grey, Orange |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
OCLV Mountain Carbon, internal storage, Mino Link adjustable geometry, Active Braking Pivot (ABP), 160mm travel, 148x12mm thru axle |
|
Fork |
Fox Performance Elite Float 38, EVOL air spring, GRIP2 damper, 160mm travel, 44mm offset, 15x110mm thru axle |
|
Rear Shock |
Fox Performance Elite Float X, 230x62.5mm, 160mm travel |
|
Drivetrain Compatibility |
SRAM GX AXS T-Type, 1x12-speed, wireless |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
SRAM GX Eagle, 32T, T-Type, 165mm (S, M, L, XL) |
|
Chain |
SRAM GX Eagle, T-Type, 12-speed |
|
Rear Derailleur |
SRAM GX Eagle AXS, T-Type, 12-speed, wireless |
|
Shifters |
SRAM AXS Pod, 12-speed, wireless |
|
Cassette |
SRAM GX Eagle XS-1275, T-Type, 10-52T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, 138mm width |
|
Fuel Type |
Electric (Bosch Performance Line CX motor) |
|
Cargo Capacity |
Internal storage (Bontrager BITS bag included), downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Line Comp 30, tubeless ready, 29x2.50" (S: 27.5x2.50") |
|
Wheel Size |
29" (S: 27.5") |
|
Brakes |
SRAM Code Bronze, 4-piston hydraulic disc, 200mm rotor (F, R) |
|
Brake Levers |
SRAM Code Bronze, hydraulic |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width |
|
Stem |
Bontrager Line Pro, 35mm, 0 degree, 45mm length |
|
Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, 138mm width |
|
Seatpost |
Bontrager Line Dropper, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), 34.9mm, internal routing |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager XR Trail Pro, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line Comp 30, tubeless ready, 28-hole, 29mm width (S: 27.5mm) |
|
Spokes |
14g stainless steel |
|
Exterior Features |
Internal storage (Bontrager BITS bag included), Mino Link adjustable geometry, Active Braking Pivot (ABP), Knock Block, downtube water bottle mounts |
|
Motor |
Bosch Performance Line CX, 85Nm, 250W continuous power, 20mph/32kph max assist (Class 1) |
|
Battery |
Bosch PowerTube 800Wh, fully integrated |
|
Controller |
Bosch Kiox 300, 4 assist modes (Eco, Tour, eMTB, Turbo), walk assist |
|
Charger |
Bosch 4A charger |
