2025 Trek Rail+ 8 Gen 5 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Rail+ 8 Gen 5 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Enduro, trail riding, all-mountain |
|
Starting Price (2025) |
$7,699.99 USD |
|
Color Options |
Dark Star, Greenvisibility |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Platinum Aluminum, 160mm travel, internal routing, adjustable geometry, downtube guard, BSA 73, ISCG 05, Boost148 |
|
Fork |
RockShox ZEB Select, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
|
Rear Shock |
RockShox Super Deluxe Select RT, 230x57.5mm |
|
Drivetrain Compatibility |
Shimano XT/SLX, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
FSA Bosch CK-220, 34T, 160mm (S), 165mm (M, L, XL) |
|
Chain |
Shimano SLX M7100, 12-speed |
|
Rear Derailleur |
Shimano XT M8100 |
|
Shifters |
Shimano SLX M7100, 12-speed |
|
Cassette |
Shimano SLX M7100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Fuel Type |
Electric (Bosch Performance Line CX motor) |
|
Wheels/Tyres |
Bontrager Line TLR 30, alloy, Tubeless Ready, 29x2.6" (front), 27.5x2.6" (rear) |
|
Wheel Size |
29" (front), 27.5" (rear) |
|
Brakes |
SRAM DB 8, 4-piston hydraulic disc, 200mm rotors |
|
Brake Levers |
SRAM DB 8 |
|
Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
Stem |
Bontrager Line, 35mm, 0 degree, 35mm (S), 45mm (M, L, XL) |
|
Headset |
Knock Block Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Seatpost |
Bontrager Line Dropper, 100mm (S), 150mm (M), 170mm (L), 200mm (XL), internal routing, 34.9mm |
|
Grips |
Bontrager XR Trail Pro, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line TLR 30, alloy, Tubeless Ready, 30mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal routing, adjustable geometry, downtube guard, ISCG 05 |
|
Weight |
23.5 kg / 51.81 lbs (size M) |
|

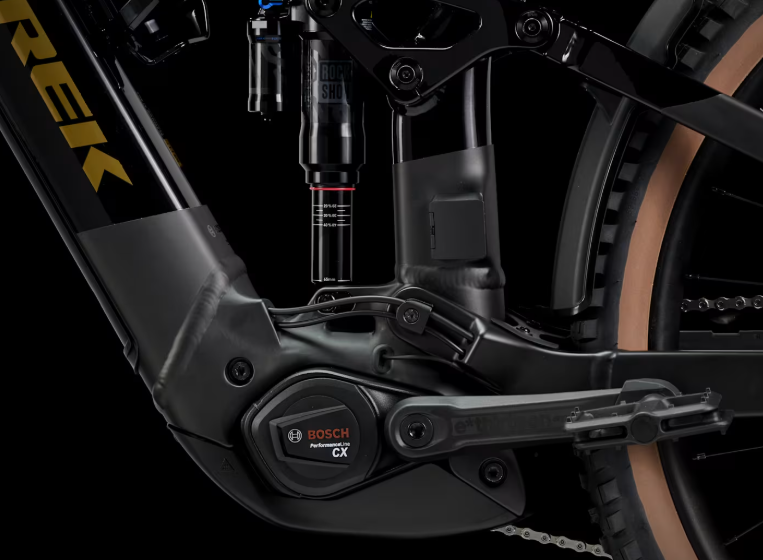

Drive Unit |
Bosch Performance Line CX, 85-100Nm torque |
|
Battery |
Bosch PowerTube, 800Wh |
|
Charger |
Bosch Standard Charger, 4A |
|
Display |
Bosch Kiox 500 |
|
Certifications |
UL 2849 (system certification for e-bike safety) |
