Specification

Details

Model

Rail+ 5 Gen 5

Vehicle Category

Electric Enduro Mountain Bike

Application

Enduro, trail riding, big mountain adventures

Starting Price (2025)

$6,099.99 USD

Color Options

Viper Red, Greydark

Sizes

S (27.5" wheel), M, L, XL

Specification

Details

Frame

Alpha Platinum Aluminum, internal storage, Mino Link adjustable geometry, Active Braking Pivot (ABP), 160mm travel, 148x12mm thru axle

Fork

RockShox Psylo Gold RC, Motion Control damper, 160mm travel, 44mm offset, 15x110mm thru axle

Rear Shock

RockShox Deluxe Select+ RT, 230x62.5mm, 160mm travel

Drivetrain Compatibility

Shimano Deore, 1x12-speed

Dropouts

15x110mm thru axle (F), 148x12mm thru axle (R)

Crank

E*thirteen E*spec Plus, 34T, 165mm (S, M, L, XL)

Chain

Shimano Deore M6100, 12-speed

Rear Derailleur

Shimano Deore M6100, long cage, 12-speed

Shifters

Shimano Deore M6100, 12-speed

Cassette

Shimano Deore M6100, 10-51T, 12-speed

Specification

Details

Seating

Bontrager Arvada, 138mm width

Fuel Type

Electric (Bosch Performance Line CX motor)

Cargo Capacity

Internal storage (Bontrager BITS bag included), downtube water bottle mounts

Wheels/Tyres

Bontrager Line TLR 30, tubeless ready, 29x2.50" (S: 27.5x2.50")

Wheel Size

29" (S: 27.5") in

Brakes

Shimano MT4100, 4-piston hydraulic disc, 203mm rotor (F, R)

Brake Levers

Shimano MT4100, hydraulic

Handlebar

Bontrager Line, alloy, 35mm, 27.5mm rise, 820mm width

Stem

Bontrager Elite, 35mm, 0 degree, 45mm length

Headset

Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

Saddle

Bontrager Arvada, 138mm width

Seatpost

TranzX JD-YSI-39, 100mm travel (S), 150mm travel (M), 170mm travel (L, XL), 34.9mm, internal routing

Seatpost Clamp

Integrated, internal

Grips

Bontrager XR Trail Elite, nylon lock-on

Front Hub

Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, 148x12mm thru axle

Rims

Bontrager Line TLR 30, tubeless ready, 28-hole, 29mm width (S: 27.5mm)

Spokes

14g stainless steel

Exterior Features

Internal storage (Bontrager BITS bag included), Mino Link adjustable geometry, Active Braking Pivot (ABP), Knock Block, downtube water bottle mounts

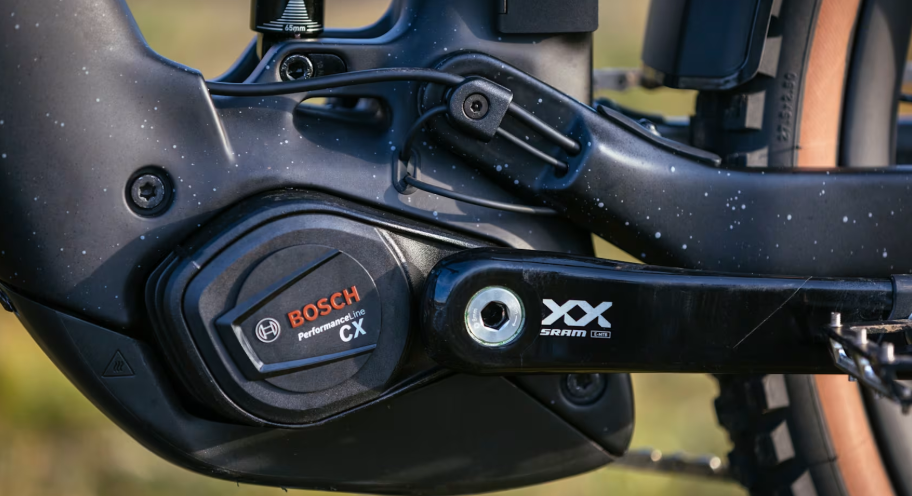

Motor

Bosch Performance Line CX, 85Nm, 250W continuous power, 20mph/32kph max assist (Class 1)

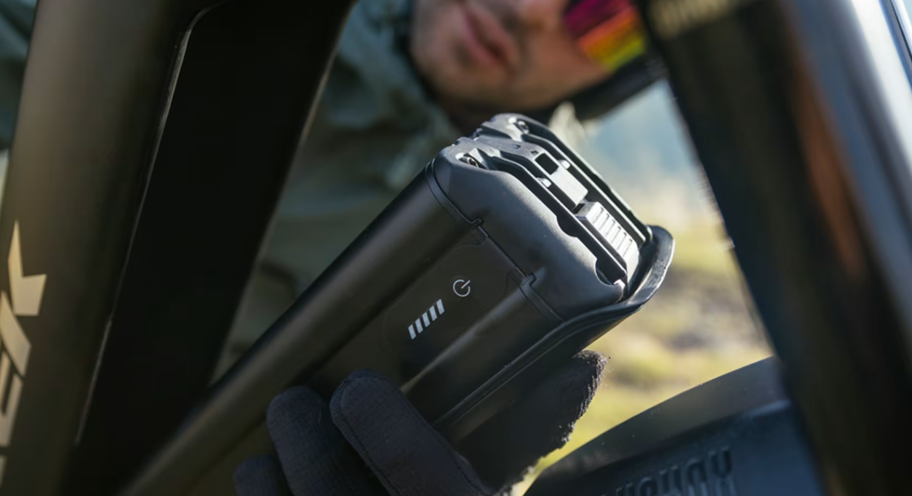

Battery

Bosch PowerTube 800Wh, fully integrated

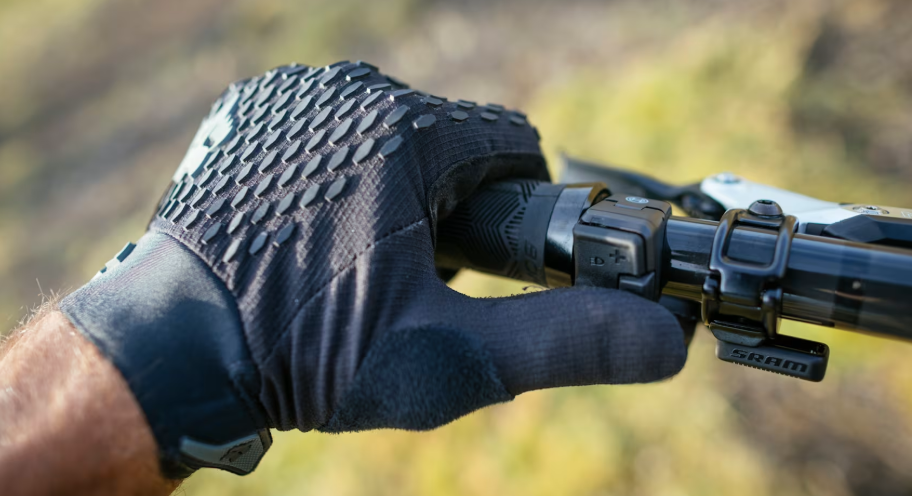

Controller

Bosch Purion 200, 4 assist modes (Eco, Tour, eMTB, Turbo), walk assist

Charger

Bosch 4A charger
