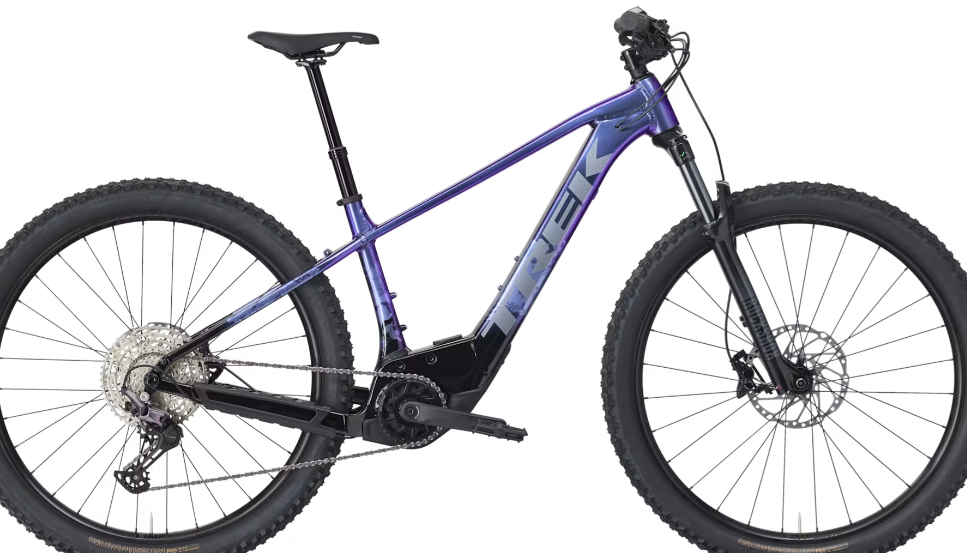

2025 Trek Marlin+ 8 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Marlin+ 8 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, commuting, recreational riding |
|
Starting Price (2025) |
$3,999.99 USD |
|
Color Options |
Purple Flip to Black Fade, Mercury, Red to Greydark Fade |
|
Sizes |
XS (27.5" wheel), S (27.5" wheel), M (29" wheel), L (29" wheel), XL (29" wheel) |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Gold Aluminum, internal routing, rack and fender mounts, BSA 73, Boost148 |
|

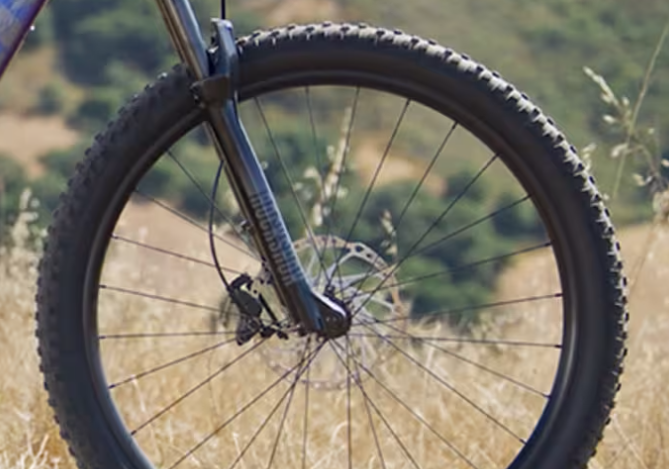

Fork |
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel |
|
Drivetrain Compatibility |
Shimano Deore, 12-speed |
|
Dropouts |
15x110mm thru axle (F), 148x12mm thru axle (R) |
|
Crank |
FSA Bosch CK-220, 32T, 165mm (XS, S), 170mm (M, L, XL) |
|
Chain |
Shimano Deore M6100, 12-speed |
|
Rear Derailleur |
Shimano Deore M6100 |
|
Shifters |
Shimano Deore M6100, 12-speed |
|

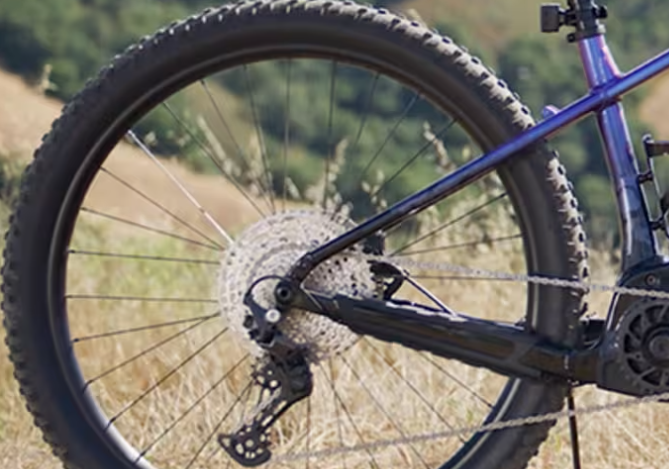

Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Fuel Type |
Electric (Bosch Active Line Plus motor) |
|
Cargo Capacity |
Rack and fender mounts, maximum cargo capacity not specified |
|
Wheels/Tyres |
Bontrager Line TLR 30, alloy, Tubeless Ready, 29x2.6" (XS, S: 27.5x2.6") |
|
Wheel Size |
29" (XS, S: 27.5") in |
|
Brakes |
Shimano MT4100, 4-piston hydraulic disc, 180mm rotors |
|
Brake Levers |
Shimano MT4100 |
|
Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm (XS, S), 60mm (M, L, XL) |
|
Headset |
Semi-integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
|
Saddle |
Bontrager Arvada, hollow chromoly rails, 138mm width |
|
Seatpost |
Bontrager alloy, 31.6mm, 12mm offset, 360mm (XS, S), 400mm (M, L, XL) |
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
Front Hub |
Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, 148x12mm thru axle |
|
Rims |
Bontrager Line TLR 30, alloy, Tubeless Ready, 30mm width |
|
Spokes |
14g stainless steel, black |
|
Exterior Features |
Internal routing, rack and fender mounts |
|
Weight |
18.5 kg / 40.79 lbs (size M) |
|

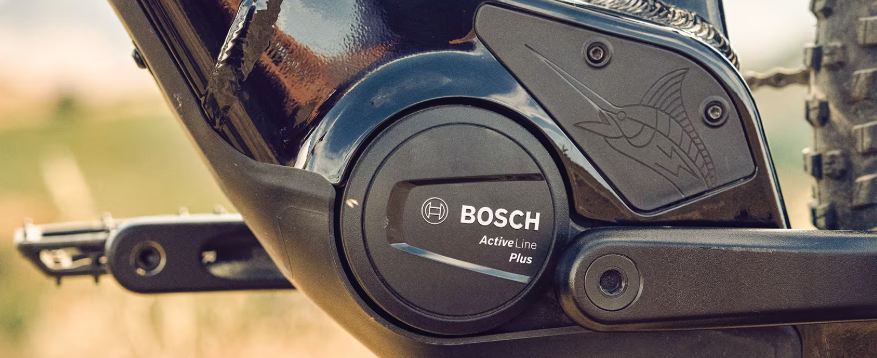

Drive Unit |
Bosch Active Line Plus, 50Nm torque |
|
Battery |
Bosch PowerTube, 400Wh |
|
Charger |
Bosch Standard Charger, 4A |
|

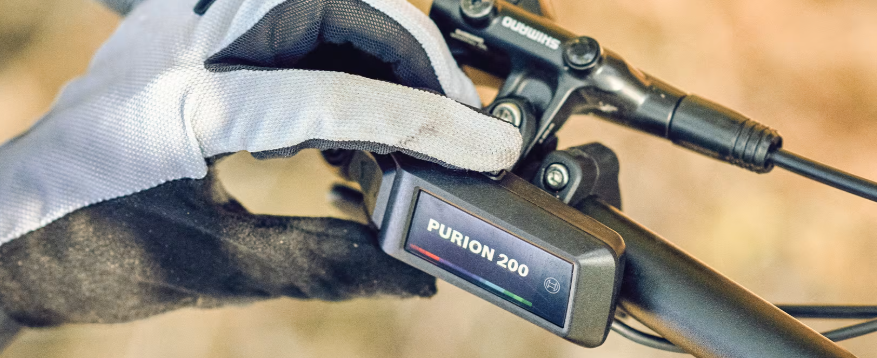

Display |
Bosch Purion 200 |
|
Certifications |
UL 2849 (system certification for e-bike safety) |
