Specification

Details

Model

Marlin+ 6

Vehicle Category

Electric Mountain Bike

Application

Trail riding, recreational mountain biking, light off-road

Starting Price (2025)

$2,899.99 USD

Color Options

Dnister Black, Red

Sizes

XS (27.5" wheel), S (27.5" wheel), M (29" wheel), L (29" wheel), XL (29" wheel)

Specification

Details

Frame

Alpha Gold Aluminum, internal cable routing, rack and fender mounts, 12x148mm thru axle

Fork

SR Suntour XCM 34, coil spring, 120mm travel, 15x110mm thru axle

Drivetrain Compatibility

Shimano CUES, 1x9-speed, mechanical

Dropouts

15x110mm thru axle (F), 12x148mm thru axle (R)

Crank

FSA Bosch CK-220, 36T, 165mm (XS, S), 170mm (M, L, XL)

Chain

Shimano LG500, 9/10/11-speed

Rear Derailleur

Shimano CUES U6000, 9-speed, mechanical

Shifters

Shimano CUES U6000, 9-speed, mechanical

Cassette

Shimano CUES LG300, 11-46T, 9-speed

Specification

Details

Seating

Bontrager Arvada, 138mm width

Fuel Type

Electric (Bosch Active Line Plus motor)

Cargo Capacity

Rack and fender mounts, downtube water bottle mounts

Wheels/Tyres

Bontrager Connection, double-wall, 29x2.40" (XS, S: 27.5x2.40"), Bontrager XR4 Team Issue

Wheel Size

29" (XS, S: 27.5")

Brakes

Shimano MT200, hydraulic disc, 180mm rotor (F, R)

Brake Levers

Shimano MT201, hydraulic

Handlebar

Bontrager alloy, 31.8mm, 15mm rise, 720mm width (XS, S), 750mm width (M, L, XL)

Stem

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm (XS, S), 60mm (M), 70mm (L, XL)

Headset

Semi-integrated, 1-1/8" top, 1.5" bottom, cartridge bearing

Saddle

Bontrager Arvada, 138mm width

Seatpost

Bontrager alloy, 31.6mm, 12mm offset, 330mm length (XS, S, M), 400mm length (L, XL)

Seatpost Clamp

Integrated, internal

Grips

Bontrager XR Endurance Comp, lock-on

Front Hub

Bontrager alloy, sealed bearing, 6-bolt, 15x110mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 6-bolt, Shimano 8/9/10 freehub, 12x148mm thru axle

Rims

Bontrager Connection, double-wall, 32-hole, 29mm width (XS, S: 27.5mm width)

Spokes

14g stainless steel

Pedals

VP-537, platform, plastic

Exterior Features

Rack and fender mounts, downtube water bottle mounts, kickstand mount

Motor

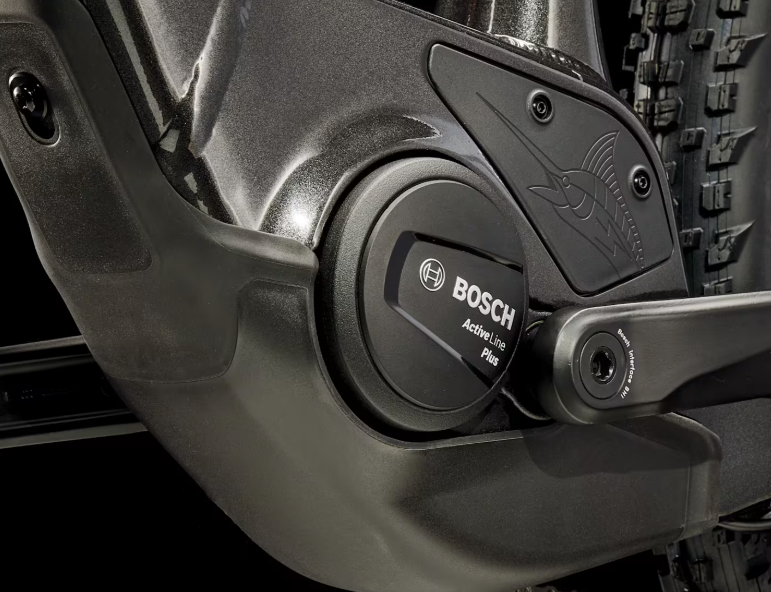

Bosch Active Line Plus, 50Nm, 250W continuous power, 20mph/32kph max assist (Class 1)

Battery

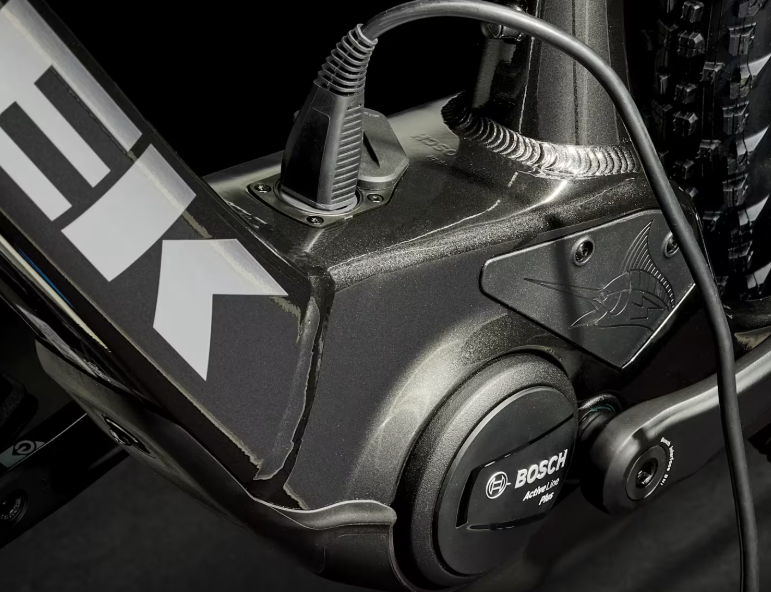

Bosch PowerTube 400Wh, integrated, removable

Controller

Bosch Purion 200, 4 assist modes (Eco, Tour, Sport, Turbo), walk assist

Charger

Bosch 2A charger
