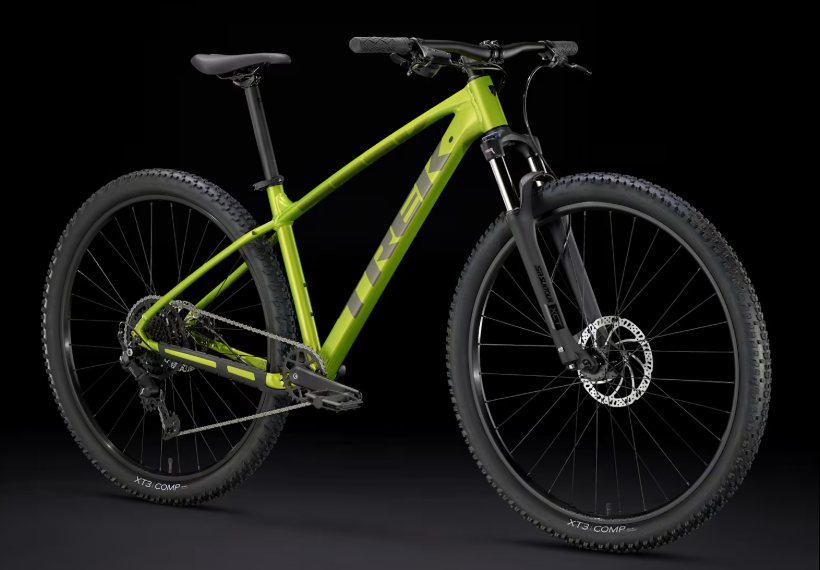

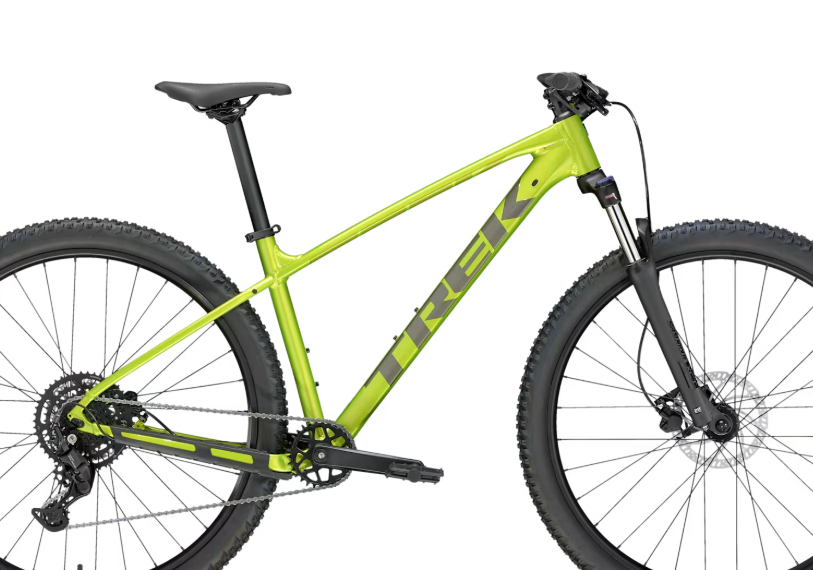

2025 Trek Marlin 5 Gen 3 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Marlin 5 Gen 3 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding, cross-country, commuting |
|
Starting Price (2025) |
$799.99 USD |
|
Color Options |
Power Surge, Matte Trek Black, Radioactive Green, Purple/Black |
|
Sizes |
XS (27.5" wheel), S (27.5" wheel), M (29" wheel), ML (29" wheel), L (29" wheel), XL (29" wheel) |
Frame & Drivetrain
|
Specification |
Details |
|

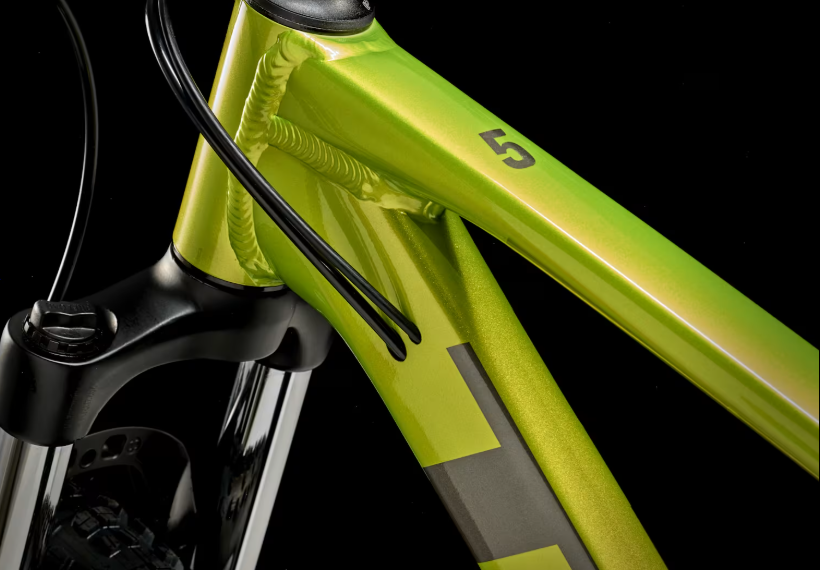

Frame |
Alpha Silver Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR |
|
Fork |
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm travel, 100mm QR |
|
Drivetrain Compatibility |
Shimano CUES U4000, 9-speed |
|
Dropouts |
135x5mm QR (F), 135x5mm QR (R) |
|

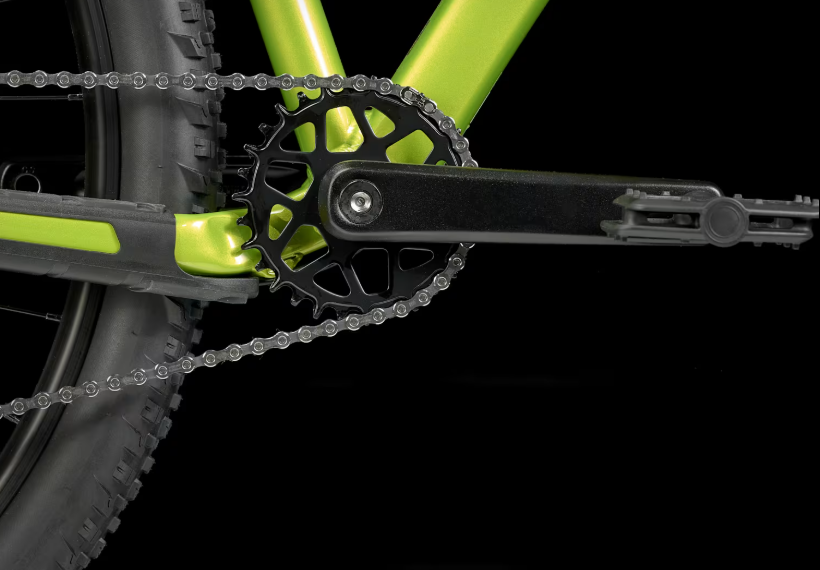

Crank |
Prowheel C10Y-NW, 36T narrow-wide, 170mm length (XS, S, M), 175mm length (ML, L, XL) |
|
Chain |
Shimano LG500 |
|

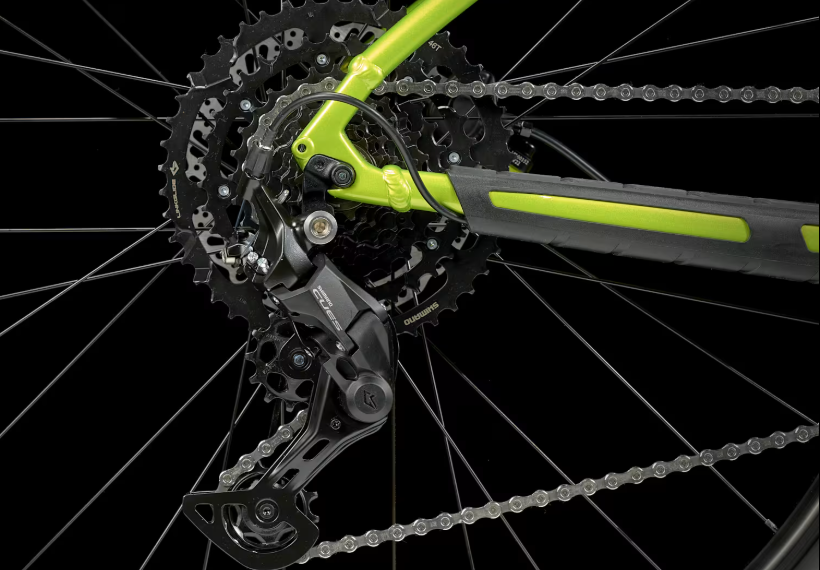

Rear Derailleur |
Shimano CUES U4000 |
|
Shifters |
Shimano CUES U4000, 9-speed |
|
Cassette |
Shimano CUES LG300, LINKGLIDE, 11-46T, 9-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Arvada, steel rails, 138mm width |
|
Cargo Capacity |
Rack & fender mounts, kickstand mount |
|
Wheels/Tyres |
Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.20" (XS, S), 29x2.20" (M, ML, L, XL) |
|
Wheel Size |
27.5" (XS, S), 29" (M, ML, L, XL) |
|
Brakes |
Tektro HD-M275 hydraulic disc, 180mm rotor (F), 160mm rotor (R) |
|
Brake Levers |
Tektro HD-M275 hydraulic |
|
Handlebar |
Bontrager alloy, 31.8mm, 5mm rise, width: 690mm (XS, S), 720mm (M, ML, L, XL) |
|
Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, length: 60mm (XS), 70mm (S), 80mm (M), 90mm (ML, L, XL) |
|
Headset |
1-1/8" threadless, sealed cartridge bearings |
|
Saddle |
Bontrager Arvada, steel rails, 138mm width |
|
Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, length: 330mm (XS, S, M), 400mm (ML, L, XL) |
|
Seatpost Clamp |
Knurled, quick release |
|
Grips |
Bontrager XR Endurance Comp, lock-on |
|
Front Hub |
Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|
Rear Hub |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
|
Rims |
Bontrager Connection, double-wall, 32-hole, 20mm width, Schrader valve |
|
Spokes |
Stainless steel, 14g |
|
Pedals |
Wellgo nylon platform |
|
Exterior Features |
Rack & fender mounts, kickstand mount, internal cable routing |
|
Weight |
13.77 kg (M) |
