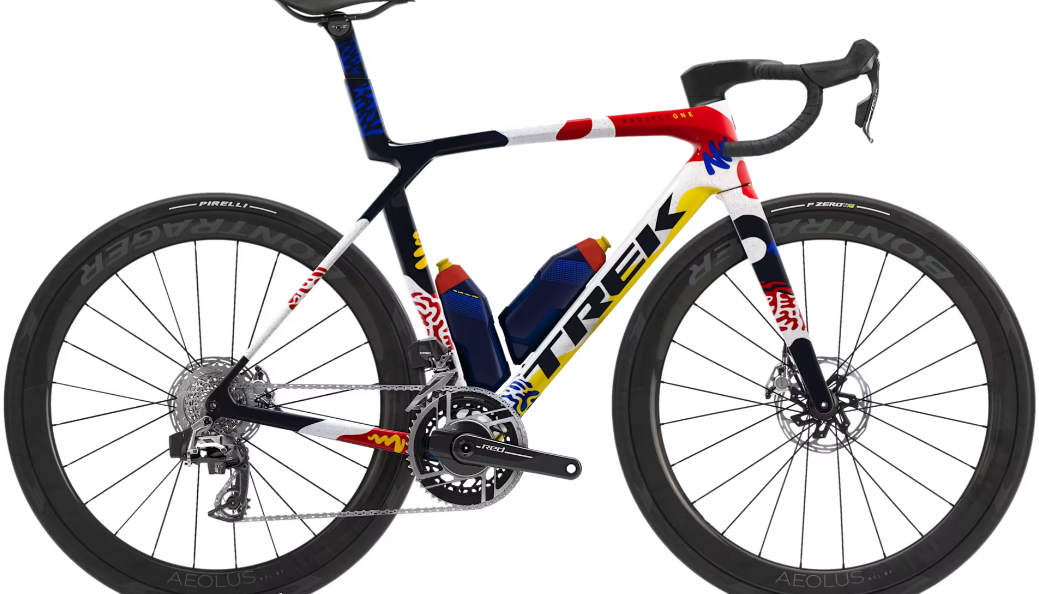

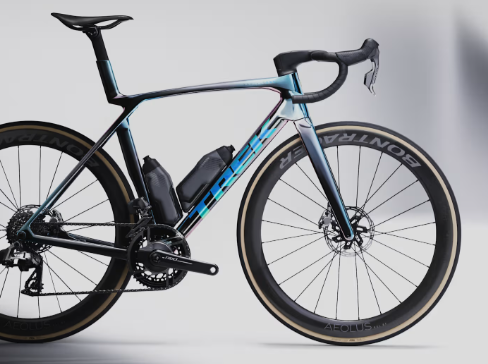

2025 Trek Madone SLR 9 AXS Gen 8 – Performance Road Bike
Specifications
|
Specification |
Details |
|
Model |
Madone SLR 9 AXS Gen 8 |
|
Vehicle Category |
Performance Road Bike |
|
Application |
Road racing, climbing, sprinting |
|
Starting Price (2025) |
$13,499.99 - $15,999.99 USD |
|
Color Options |
ICON Couler, Black, Black-Grey, Blue, Purple, Purplelight-Bluelight, Reddark, White, White-Red |
|
Sizes |
XS, S, M, ML, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
900 Series OCLV Carbon, IsoFlow technology, internal cable routing, 32mm max tire clearance, road race fit, 12x100mm thru axle (F), 12x142mm thru axle (R) |
|
Fork |
Madone 900 Series OCLV Carbon, 12x100mm thru axle |
|
Drivetrain Compatibility |
SRAM RED AXS E1, 2x12-speed, power meter, wireless |
|
Dropouts |
12x100mm thru axle (F), 12x142mm thru axle (R) |
|
Crank |
SRAM RED AXS E1, 50/34T, power meter, 165mm (XS, S), 170mm (M), 172.5mm (ML, L), 175mm (XL) |
|
Chain |
SRAM RED, 12-speed |
|
Rear Derailleur |
SRAM RED AXS E1, wireless |
|
Front Derailleur |
SRAM RED AXS E1, wireless |
|
Shifters |
SRAM RED AXS E1, wireless, 12-speed |
|
Cassette |
SRAM XG-1290, 10-33T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Aeolus RSL, carbon rails, 145mm width |
|
Cargo Capacity |
RSL Aero Bottles and Cages included |
|
Wheels/Tyres |

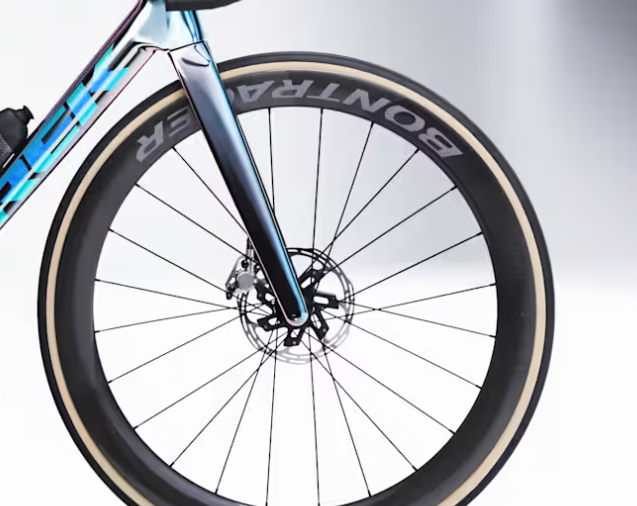

Bontrager Aeolus RSL 51, OCLV Carbon, tubeless ready, 51mm depth, 28mm width, 700x25mm (Bontrager R4 320) |
|
Wheel Size |
700c |
|
Brakes |
SRAM RED AXS E1, hydraulic disc, flat mount, 160mm rotor (F, R) |
|
Brake Levers |
SRAM RED AXS E1, hydraulic |
|
Handlebar |
Trek Aero RSL, OCLV Carbon, 380mm (XS), 400mm (S, M), 420mm (ML, L), 440mm (XL) |
|
Stem |
Trek Aero RSL, integrated with handlebar, 80mm (XS, S), 90mm (M), 100mm (ML), 110mm (L, XL) |
|
Headset |
Integrated, sealed cartridge bearing, 1-1/8" top, 1-3/8" bottom |
|
Saddle |
Bontrager Aeolus RSL, carbon rails, 145mm width |
|
Seatpost |
Madone aero carbon, internal, 0mm offset, 280mm length (XS, S), 320mm length (M, ML, L, XL) |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager Aeolus RSL, sealed bearing, 12x100mm thru axle |
|
Rear Hub |
Bontrager Aeolus RSL, sealed bearing, SRAM XDR freehub, 12x142mm thru axle |
|
Rims |
Bontrager Aeolus RSL 51, OCLV Carbon, tubeless ready, 28-hole, 28mm width |
|
Spokes |
14/17g stainless steel |
|
Exterior Features |
IsoFlow technology, internal cable routing, RSL Aero Bottles and Cages, customizable via Project One |
|
Weight |
7.00 kg (ML, with TLR sealant, no tubes, no bottles/cages) |
