Specification

Details

Model

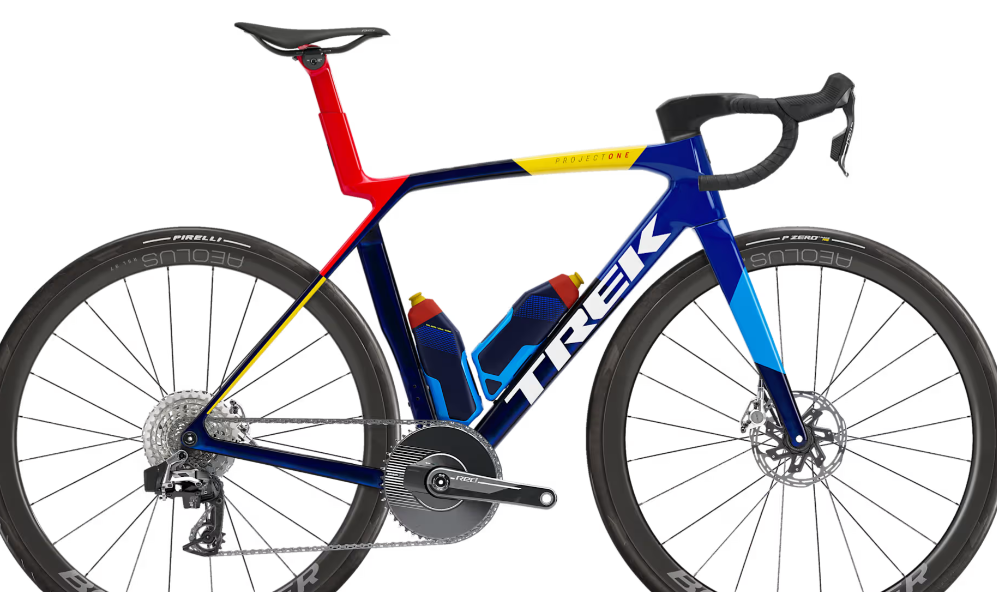

Madone SLR 9 AXS 1x Gen 8

Vehicle Category

Road Bike

Application

Road racing, performance cycling

Starting Price (2025)

$12,999.99 USD

Color Options

Team Replica, Matte Carbon Smoke/Prismatic Pearl

Sizes

XS, S, M, ML, L, XL

Specification

Details

Frame

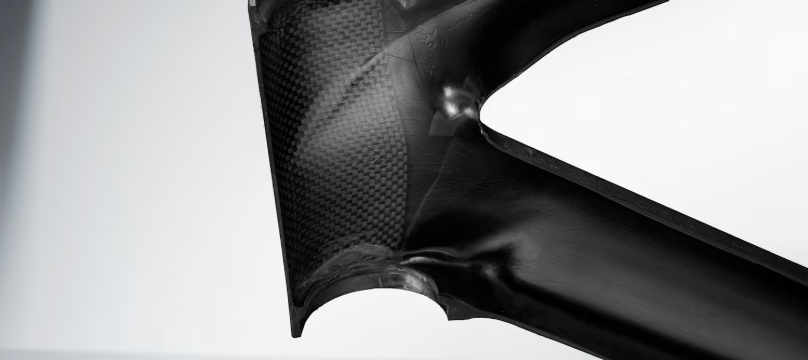

900 Series OCLV Carbon, IsoFlow technology, internal routing, BSA 68, 32mm max tire size

Fork

Madone Gen 8, 900 Series OCLV Carbon, tapered steerer, internal brake routing, 12x100mm thru axle

Drivetrain Compatibility

SRAM RED AXS E1, 1x12

Dropouts

12x100mm thru axle (F), 12x142mm thru axle (R)

Crank

SRAM RED AXS E1, 40T, 165mm (XS), 170mm (S, M), 172.5mm (ML, L), 175mm (XL)

Chain

SRAM RED, 12-speed

Rear Derailleur

SRAM RED AXS E1

Shifters

SRAM RED AXS E1, 12-speed

Cassette

SRAM XG-1290, 10-36, 12-speed

Specification

Details

Seating

Bontrager Aeolus RSL, carbon rails, 145mm width

Wheels/Tyres

Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 32mm max tire size

Wheel Size

700c

Brakes

SRAM RED AXS E1, hydraulic disc, 160mm rotors

Brake Levers

SRAM RED AXS E1

Handlebar

Bontrager Aeolus RSL Integrated, OCLV Carbon, 380mm (XS), 400mm (S), 420mm (M, ML), 440mm (L, XL)

Stem

Bontrager Aeolus RSL Integrated, 80mm (XS, S), 90mm (M), 100mm (ML, L), 110mm (XL)

Headset

Integrated, sealed cartridge bearing

Saddle

Bontrager Aeolus RSL, carbon rails, 145mm width

Seatpost

Madone aero carbon seatmast cap, 0mm offset, 160mm (XS, S), 185mm (M, ML, L, XL)

Seatpost Clamp

Integrated with seatmast

Grips

Bontrager Supertack Perf tape

Front Hub

Bontrager alloy, sealed bearing, 12x100mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, SRAM XDR freehub, 12x142mm thru axle

Rims

Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth

Spokes

14g stainless steel, black

Exterior Features

IsoFlow technology, internal routing, aero design

Weight

6.40 kg / 14.11 lbs (size ML)
