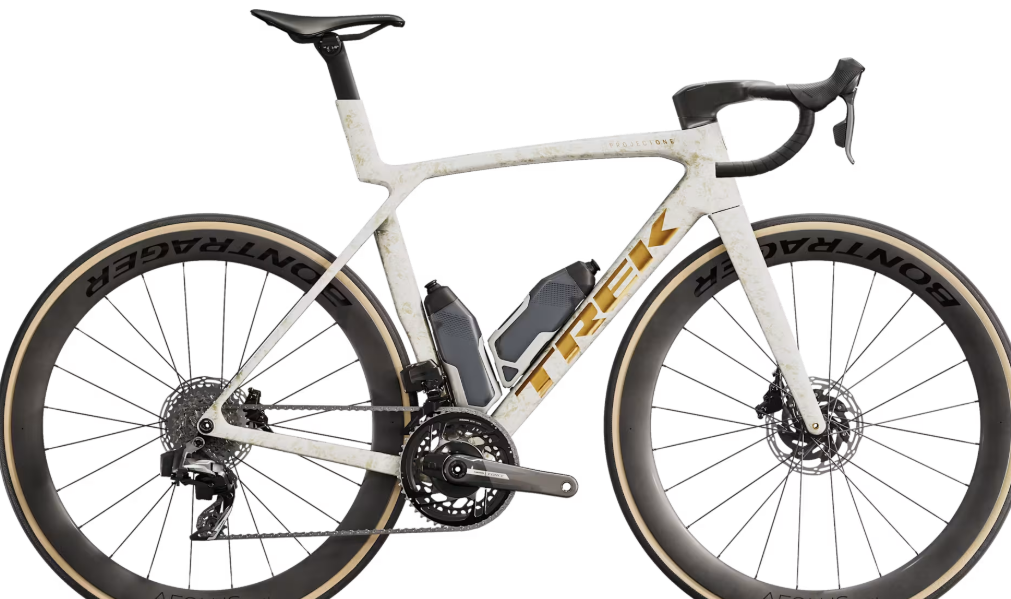

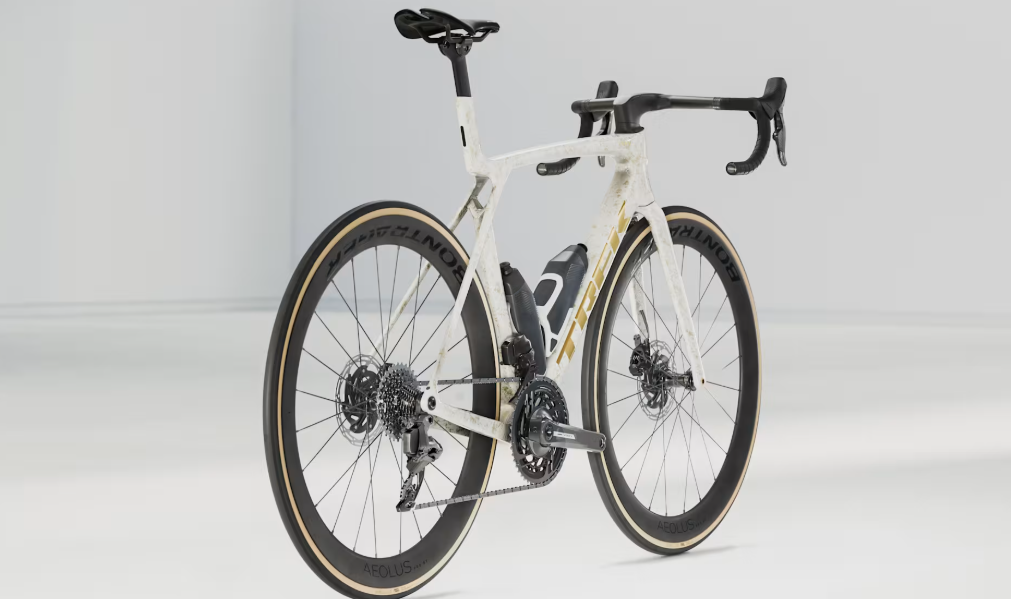

2025 Trek Madone SLR 7 AXS Gen 8 – Road Bike
Specifications
|
Specification |
Details |
|
Model |
Madone SLR 7 AXS Gen 8 |
|
Vehicle Category |
Road Bike |
|
Application |
Road racing, performance cycling |
|
Starting Price (2025) |
$9,499.97 USD (original $10,499.99) |
|
Color Options |
Era White/Supernova Marble |
|
Sizes |
XS, S, M, ML, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|

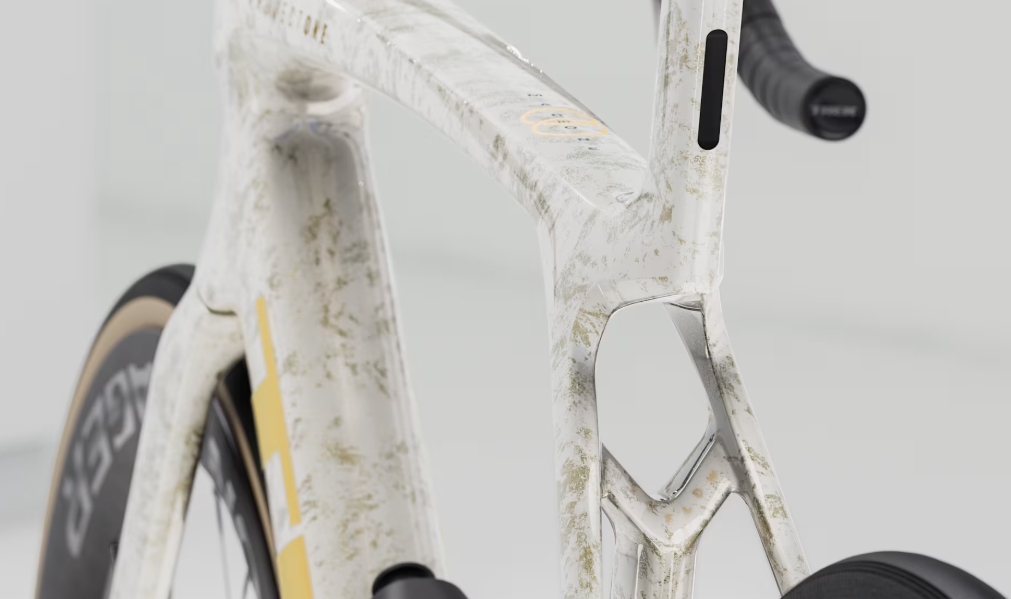

Frame |
900 Series OCLV Carbon, IsoFlow technology, internal cable routing, 142x12mm thru axle |
|
Fork |
Madone carbon, tapered carbon steerer, internal brake routing, flat mount disc, 100x12mm thru axle |
|
Drivetrain Compatibility |
SRAM Force eTap AXS, 2x12-speed |
|
Dropouts |
100x12mm thru axle (F), 142x12mm thru axle (R) |
|
Crank |
SRAM Force AXS Power Meter, 48/35T, 165mm (XS), 170mm (S, M), 172.5mm (ML, L), 175mm (XL) |
|
Chain |
SRAM Force, 12-speed |
|
Rear Derailleur |
SRAM Force eTap AXS |
|
Front Derailleur |
SRAM Force eTap AXS |
|
Shifters |
SRAM Force eTap AXS, 12-speed |
|
Cassette |
SRAM XG-1270, 10-33, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Aeolus RSL, carbon rails, 145mm width |
|
Cargo Capacity |
RSL Aero Bottles and Cages included, maximum cargo capacity not specified |
|
Wheels/Tyres |
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 700x25c |
|
Wheel Size |
700c |
|
Brakes |
SRAM Force hydraulic disc, flat mount, 160mm rotors |
|
Brake Levers |
SRAM Force eTap AXS |
|

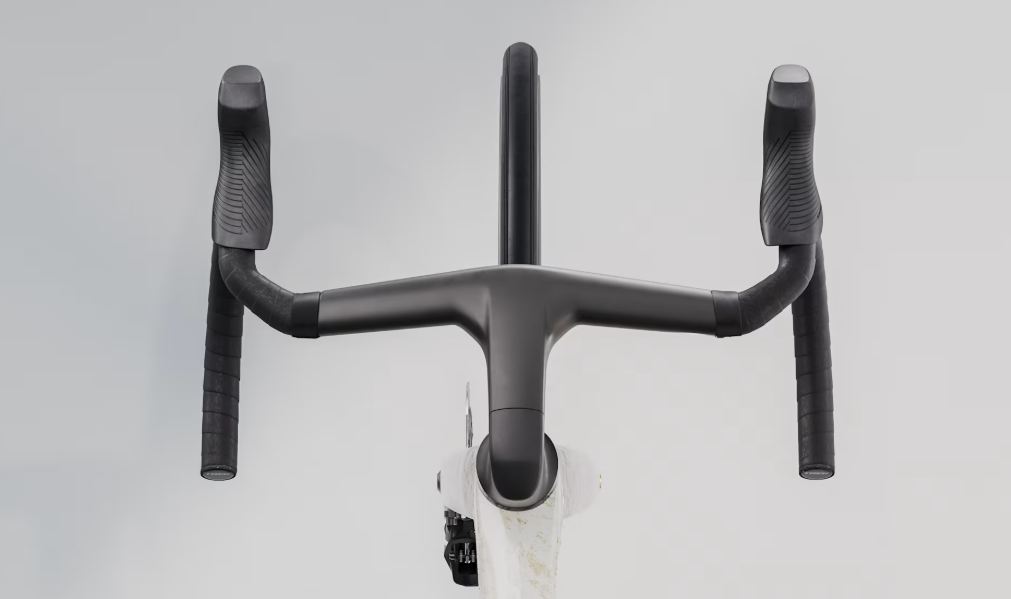

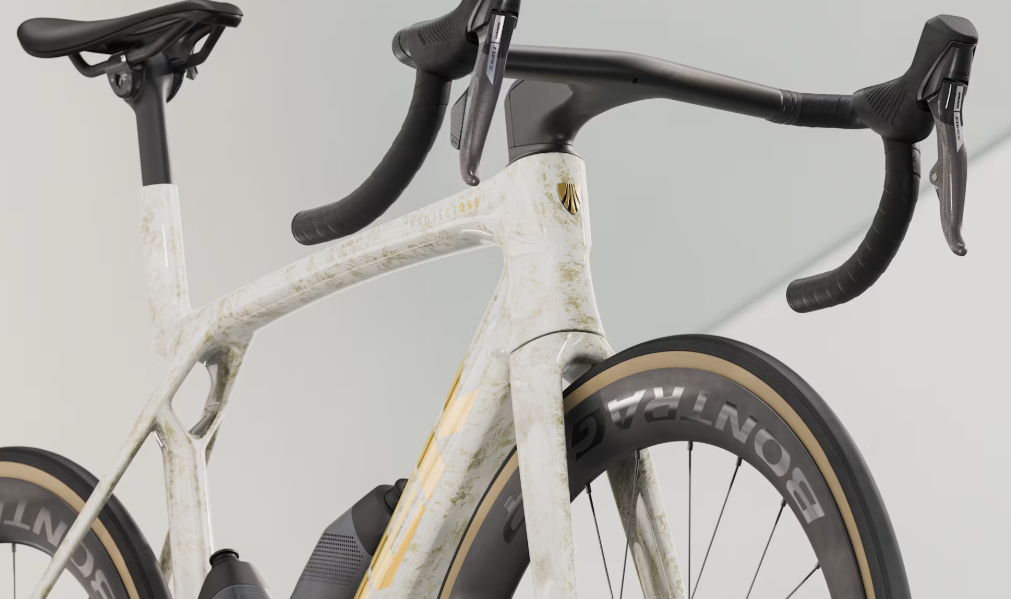

Handlebar |
Trek Aero RSL one-piece carbon bar/stem, 38cm (XS), 40cm (S), 42cm (M, ML), 44cm (L, XL) |
|
Stem |
Integrated with Trek Aero RSL one-piece bar/stem, 80mm (XS, S), 90mm (M), 100mm (ML), 110mm (L, XL) |
|
Headset |
Integrated, sealed cartridge bearing |
|
Saddle |
Bontrager Aeolus RSL, carbon rails, 145mm width |
|
Seatpost |
Madone aero carbon seatmast cap, 0mm offset, 135mm (XS, S), 175mm (M, ML, L, XL) |
|
Seatpost Clamp |
Integrated with seatmast cap |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager Aeolus Pro 51, 100x12mm thru axle |
|
Rear Hub |
Bontrager Aeolus Pro 51, SRAM XDR freehub, 142x12mm thru axle |
|
Rims |
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 51mm depth |
|
Spokes |
14/17/14g stainless steel |
|
Exterior Features |
IsoFlow technology, internal cable routing, RSL Aero Bottles and Cages, Trek Aero RSL one-piece bar/stem |
|
Weight |
7.4 kg / 16.31 lbs (size M) |
