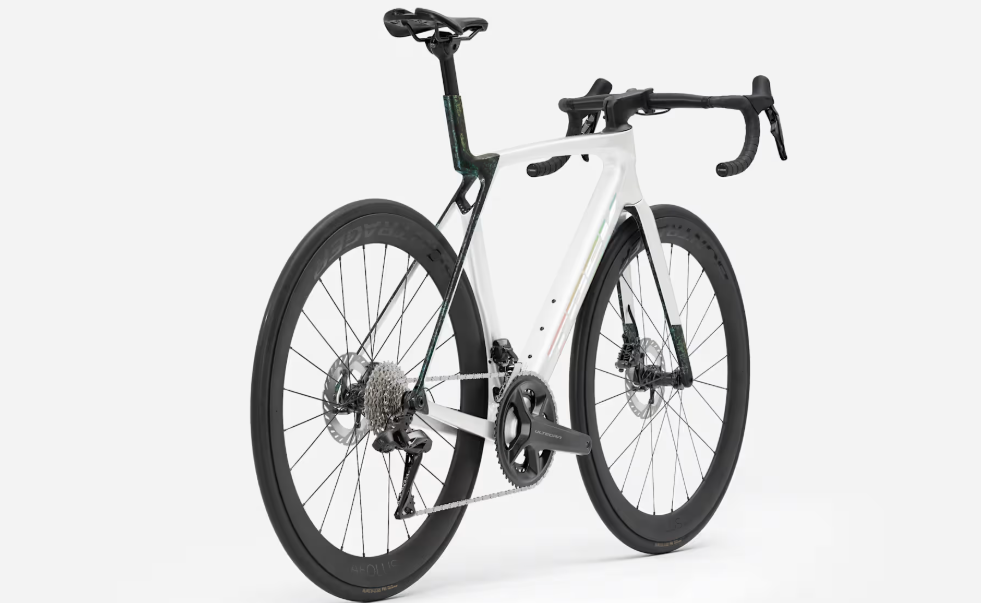

2025 Trek Madone SL 7 Gen 8 – Performance Road Bike
Specifications
|
Specification |
Details |
|
Model |
Madone SL 7 Gen 8 |
|
Vehicle Category |
Performance Road Bike |
|
Application |
Road racing, climbing, sprinting |
|
Starting Price (2025) |
$6,599.99 USD |
|
Color Options |
Gloss Crystal White/Matte Deep Smoke, Red-Black, White-Black |
|
Sizes |
XS, S, M, ML, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|

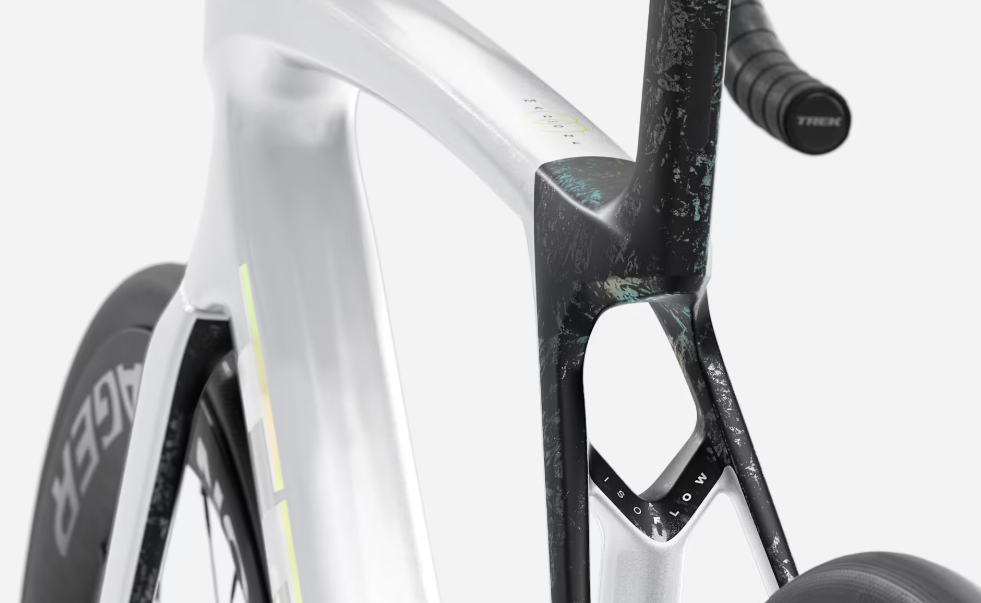

Frame |
500 Series OCLV Carbon, IsoFlow technology, road race geometry, internal cable routing, 32mm max tire clearance, 12x142mm thru axle |
|
Fork |
Madone Gen 8 carbon, tapered carbon steerer, internal brake routing, 12x100mm thru axle |
|
Drivetrain Compatibility |
Shimano Ultegra Di2, 2x12-speed, electronic |
|
Dropouts |
12x100mm thru axle (F), 12x142mm thru axle (R) |
|
Crank |
Shimano Ultegra R8100, 52/36T, 165mm (XS), 170mm (S, M), 172.5mm (ML, L), 175mm (XL) |
|
Chain |
Shimano SLX M7100, 12-speed |
|
Rear Derailleur |
Shimano Ultegra R8150 Di2, 12-speed, electronic |
|
Front Derailleur |
Shimano Ultegra R8150 Di2, 12-speed, electronic |
|
Shifters |
Shimano Ultegra R8170 Di2, 12-speed, electronic |
|
Cassette |
Shimano Ultegra R8100, 11-30T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Aeolus Elite, carbon rails, 145mm width |
|
Cargo Capacity |
Downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager Aeolus Pro 51, OCLV Carbon, tubeless ready, 25mm width, Bontrager R3 Hard-Case Lite, 700x28mm |
|
Wheel Size |
700c |
|
Brakes |
Shimano Ultegra R8170, hydraulic disc, flat mount, 160mm rotor (F, R) |
|
Brake Levers |
Shimano Ultegra R8170, hydraulic |
|

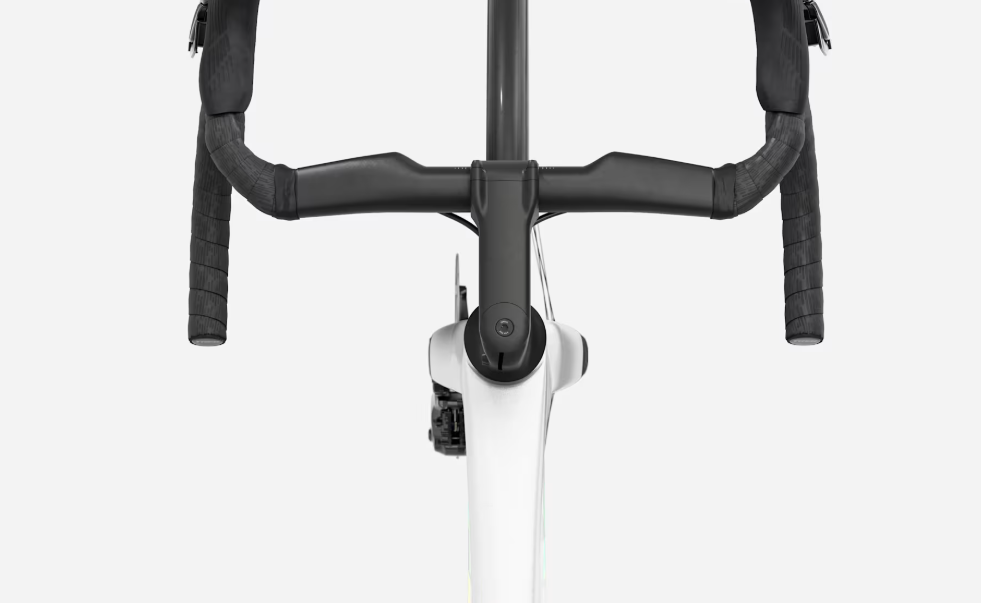

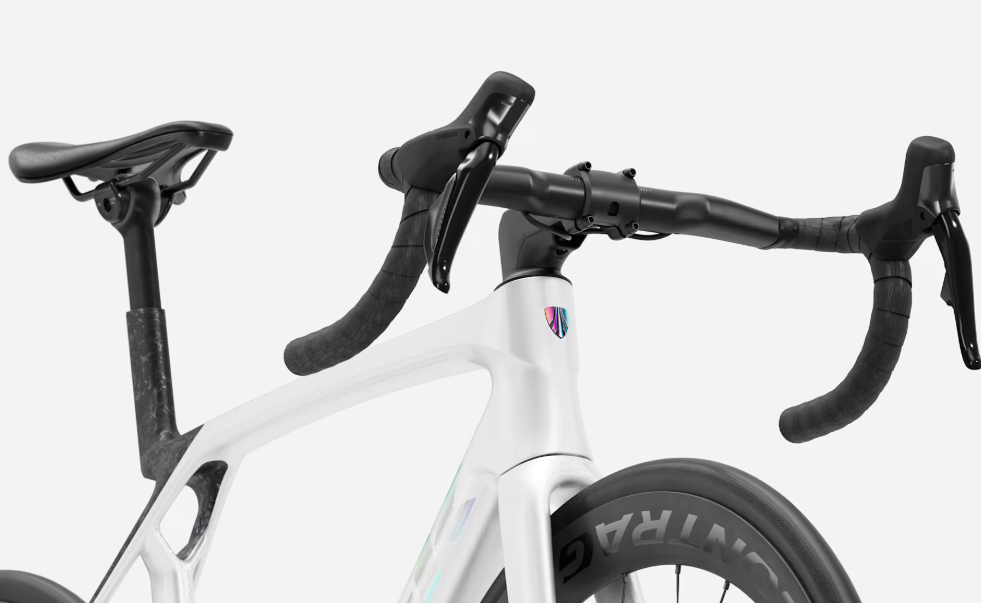

Handlebar |
Madone Integrated Aero Bar/Stem, OCLV Carbon, 80mm reach, 123mm drop, 380mm (XS), 400mm (S), 420mm (M, ML), 440mm (L, XL) |
|
Stem |
Integrated with Madone Aero Bar/Stem, 70mm (XS), 80mm (S), 90mm (M, ML), 100mm (L, XL) |
|
Headset |
Integrated, sealed cartridge bearing, 1-1/8" top, 1-3/8" bottom |
|
Saddle |
Bontrager Aeolus Elite, carbon rails, 145mm width |
|
Seatpost |
Madone aero carbon seatmast cap, 0mm offset, 280mm (XS, S, M), 320mm (ML, L, XL) |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager Supertack Perf tape |
|
Front Hub |
Bontrager alloy, sealed bearing, 12x100mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 12x142mm thru axle, Shimano MicroSpline freehub |
|
Rims |
Bontrager Aeolus Pro 51, OCLV Carbon, tubeless ready, 25mm width |
|
Spokes |
14g stainless steel |
|
Exterior Features |
IsoFlow technology, road race geometry, internal cable routing, downtube water bottle mounts |
|
Weight |
7.87 kg / 17.36 lbs (ML, with TLR sealant, no tubes) |
