Specification

Details

Model

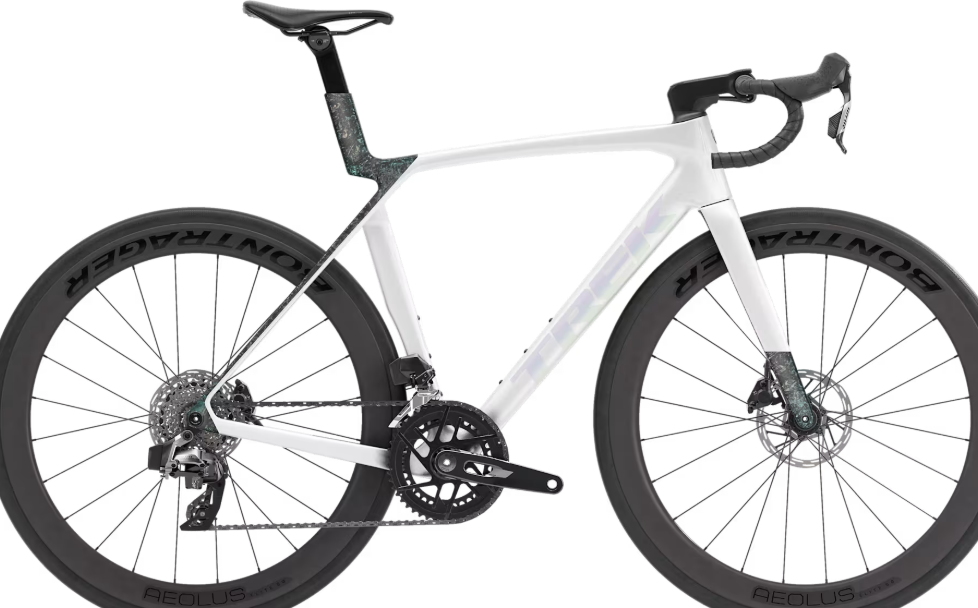

Madone SL 6 AXS Gen 8

Vehicle Category

Road Bike

Application

Road racing, endurance road cycling

Starting Price (2025)

$5,599.99 USD

Color Options

Gloss Crystal White/Matte Deep Smoke

Sizes

XS, S, M, ML, L, XL

Specification

Details

Frame

500 Series OCLV Carbon, IsoFlow technology, internal routing, BSA 68, 32mm max tire size

Fork

Madone SL carbon, tapered steerer, internal brake routing, 12x100mm thru axle

Drivetrain Compatibility

SRAM Rival AXS E1, 2x12

Dropouts

12x100mm thru axle (F), 12x142mm thru axle (R)

Crank

SRAM Rival AXS, 48/35T, 165mm (XS, S), 170mm (M), 172.5mm (ML, L), 175mm (XL)

Chain

SRAM Rival, 12-speed

Rear Derailleur

SRAM Rival AXS E1

Front Derailleur

SRAM Rival AXS E1

Shifters

SRAM Rival AXS E1, 12-speed

Cassette

SRAM XG-1250, 10-36, 12-speed

Specification

Details

Seating

Bontrager Aeolus Comp, steel rails, 145mm width

Wheels/Tyres

Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, 32mm max tire size

Wheel Size

700c

Brakes

SRAM Rival hydraulic disc, 160mm rotors

Brake Levers

SRAM Rival AXS E1

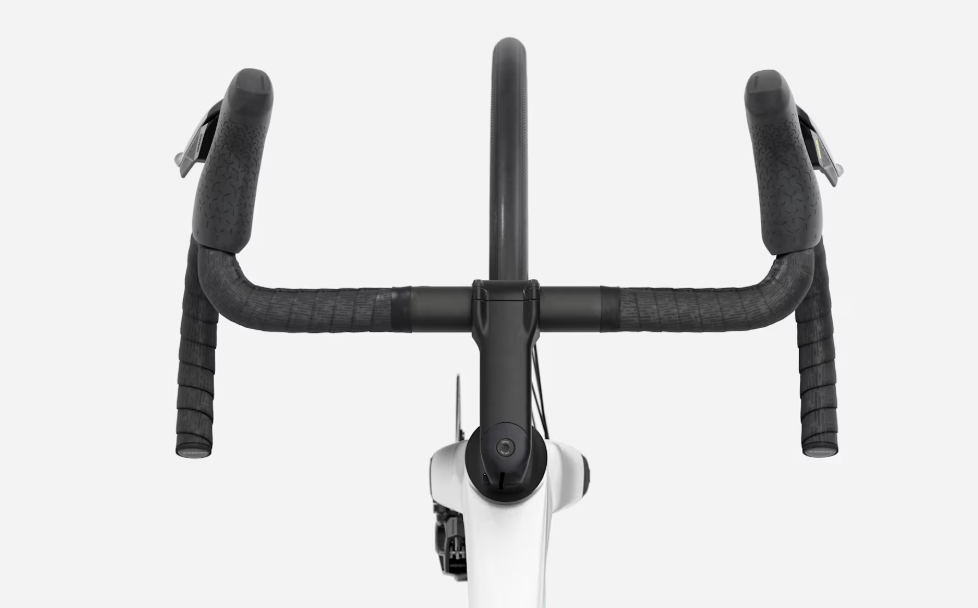

Handlebar

Bontrager Elite Aero VR-CF, alloy, 31.8mm, 380mm (XS), 400mm (S, M), 420mm (ML, L), 440mm (XL)

Stem

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm (XS), 80mm (S), 90mm (M, ML), 100mm (L), 110mm (XL)

Headset

Integrated, sealed cartridge bearing

Saddle

Bontrager Aeolus Comp, steel rails, 145mm width

Seatpost

Madone aero carbon seatmast cap, 5mm offset, 175mm (XS, S, M), 200mm (ML, L, XL)

Seatpost Clamp

Integrated with seatmast

Grips

Bontrager Supertack Perf tape

Front Hub

Bontrager alloy, sealed bearing, 12x100mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, SRAM XDR freehub, 12x142mm thru axle

Rims

Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth

Spokes

14g stainless steel, black

Exterior Features

IsoFlow technology, internal routing, aero frame design

Weight

8.11 kg / 17.88 lbs (size ML, with TLR sealant, no tubes)
