Specification

Details

Model

FX Sport SL 6

Vehicle Category

Hybrid Fitness Bike

Application

Fitness, commuting, all-terrain riding

Starting Price (2025)

$3,499.99 USD

Color Options

Matte Bronze Age/Deep Smoke, Bronze-Black

Sizes

XS, S, M, L, XL

Specification

Details

Frame

400 Series OCLV Carbon, internal cable routing, flat mount disc, 12x100mm thru axle

Fork

FX Carbon, flat mount disc, 12x100mm thru axle

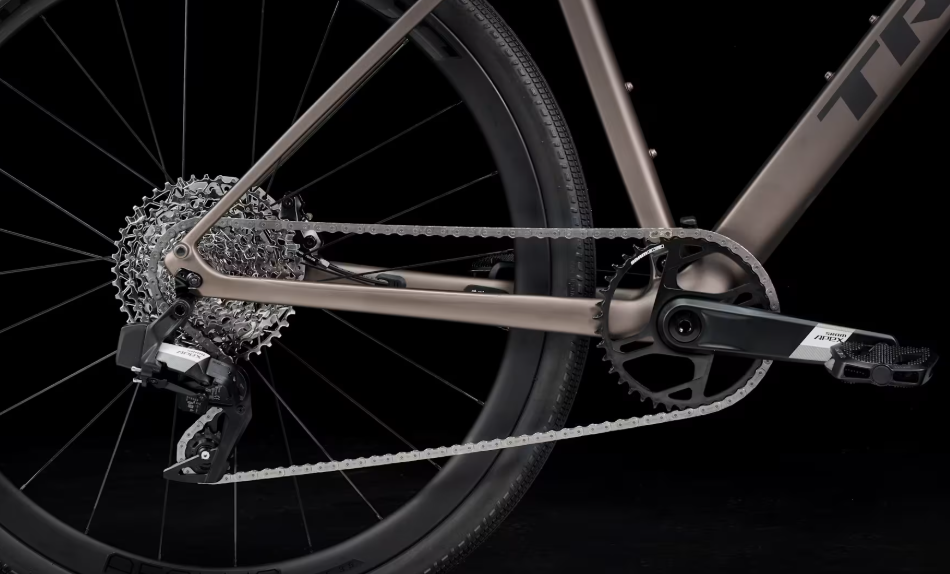

Drivetrain Compatibility

SRAM Apex XPLR AXS, 1x12-speed, electronic

Dropouts

12x100mm thru axle (F), 12x142mm thru axle (R)

Crank

SRAM Apex 1, 40T, 165mm (XS), 170mm (S, M), 175mm (L, XL)

Chain

SRAM Apex, 12-speed

Rear Derailleur

SRAM Apex XPLR AXS, 12-speed, electronic

Shifters

SRAM Apex AXS, 12-speed, electronic

Cassette

SRAM PG-1230, 11-44T, 12-speed

Specification

Details

Seating

Bontrager Sport, 145mm width

Cargo Capacity

Rack and fender mounts, downtube water bottle mounts

Wheels/Tyres

Bontrager Aeolus Elite 35, OCLV Carbon, tubeless ready, 700x40c, Bontrager GR2 Team Issue

Wheel Size

700c

Brakes

Shimano MT201, hydraulic disc, flat mount, 160mm rotor (F, R)

Brake Levers

Shimano MT201, hydraulic

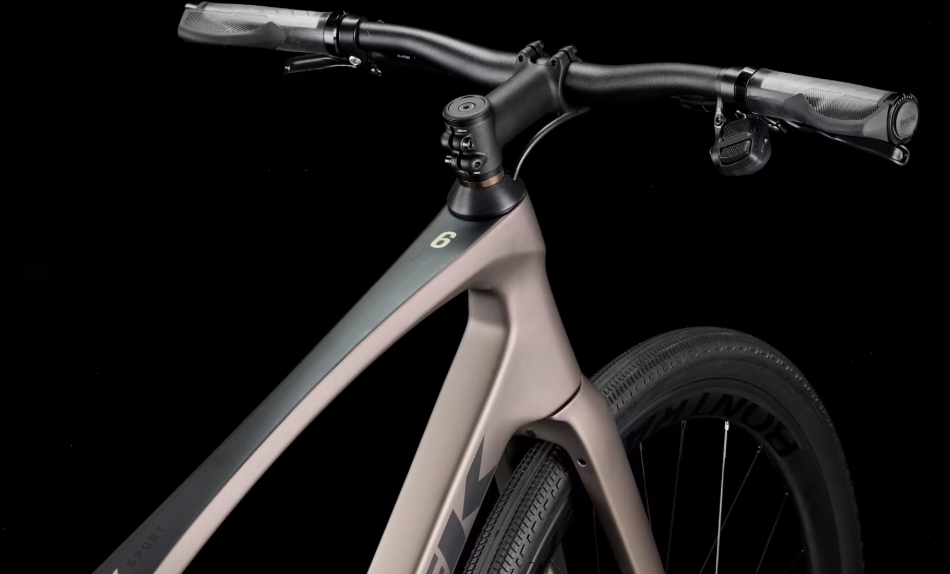

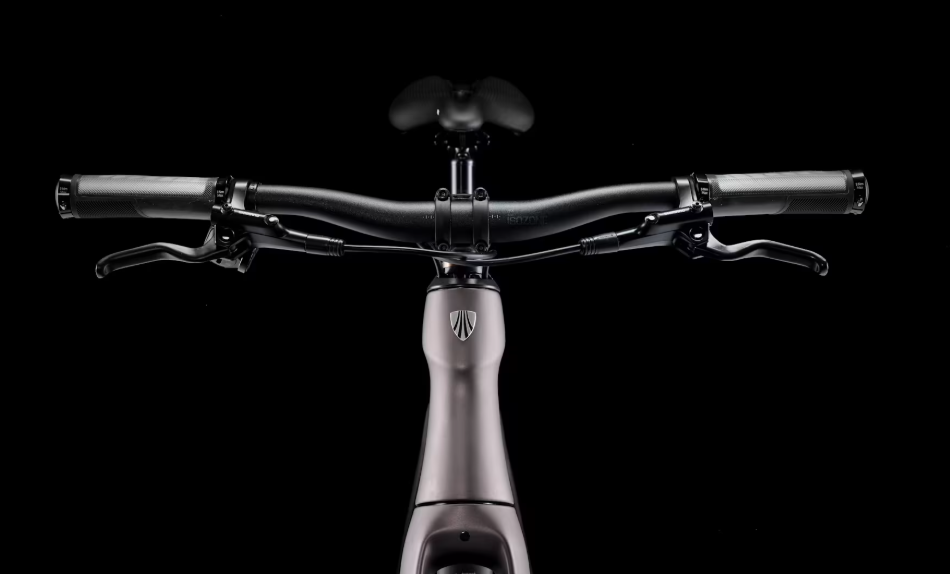

Handlebar

Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 620mm width (XS, S), 660mm width (M, L, XL)

Stem

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm (XS, S), 80mm (M), 90mm (L), 100mm (XL)

Headset

1-1/8" threadless, sealed cartridge bearings

Saddle

Bontrager Sport, 145mm width

Seatpost

Bontrager alloy, 31.6mm, 12mm offset, 330mm length (XS, S, M), 400mm length (L, XL)

Seatpost Clamp

Integrated, internal

Grips

Bontrager Satellite IsoZone Plus, lock-on, ergonomic

Front Hub

Bontrager alloy, sealed bearing, 12x100mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, 12x142mm thru axle

Rims

Bontrager Aeolus Elite 35, OCLV Carbon, tubeless ready, 35mm depth

Spokes

14g stainless steel

Exterior Features

Rack and fender mounts, downtube water bottle mounts, flat bar design
