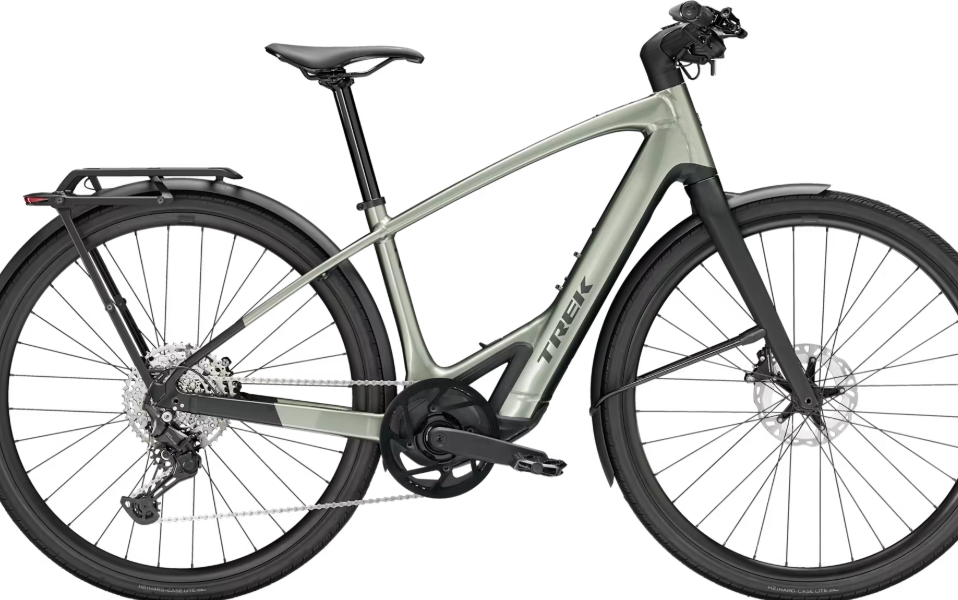

2025 Trek FX+ 7S – Electric Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
FX+ 7S |
|
Vehicle Category |
Electric Hybrid Bike |
|
Application |
Commuting, recreational riding, urban cycling |
|
Starting Price (2025) |
$3,999.99 USD |
|
Color Options |
Lichen Green Gloss, Satin Trek Black |
|
Sizes |
S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Platinum Aluminum, internal cable routing, dealer removable battery, rack & fender mounts, post mount disc, kickstand mount |
|
Fork |
FX+ 7, carbon legs, hidden fender mounts, flat mount disc, internal routing, 100x12mm thru axle |
|

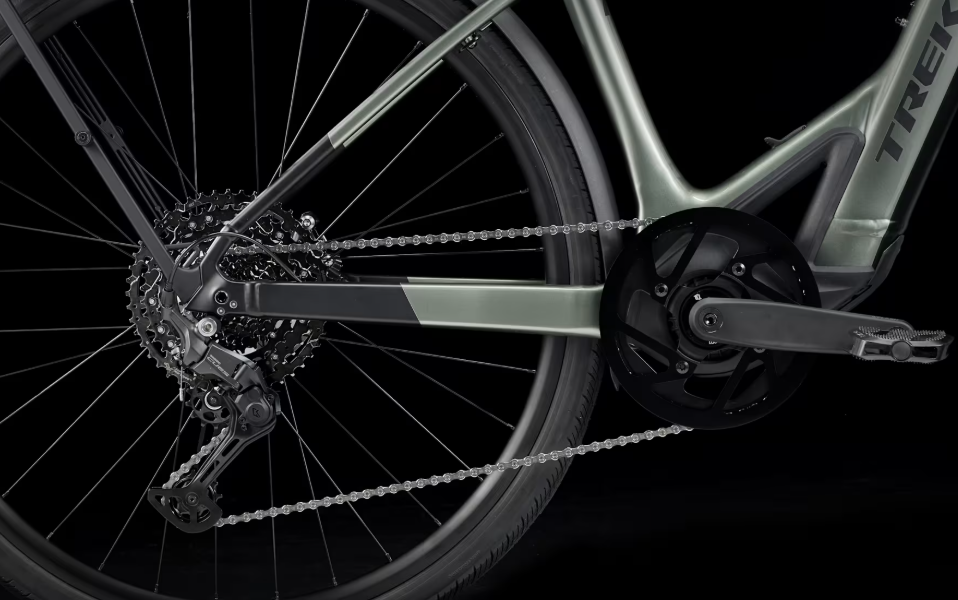

Drivetrain Compatibility |
Shimano CUES U6000, 10-speed |
|
Dropouts |
100x12mm thru axle (F), 142x12mm thru axle (R) |
|
Crank |
ProWheel Alloy, 46T narrow-wide chainring, 170mm arm length ISIS spline |
|
Chain |
Shimano LG500, 9/10/11 speed |
|
Rear Derailleur |
Shimano CUES U6000 GS |
|
Shifters |
Shimano U6000, 10-speed |
|
Cassette |
Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Verse Comp, steel rails, 165mm width |
|
Fuel Type |
Electric (TQ 360Wh battery) |
|
Cargo Capacity |
MIK-compatible alloy rear rack, maximum total weight limit 136 kg / 300 lbs (bicycle, rider, and cargo) |
|
Wheels/Tyres |
Bontrager H2 Hard Case Lite, wire bead, 30 tpi, 700x40mm |
|
Wheel Size |
700c |
|
Brakes |
Shimano hydraulic disc, RS600 lever, RS405 caliper, 180mm/160mm rotors |
|
Brake Levers |
Shimano RS600 |
|

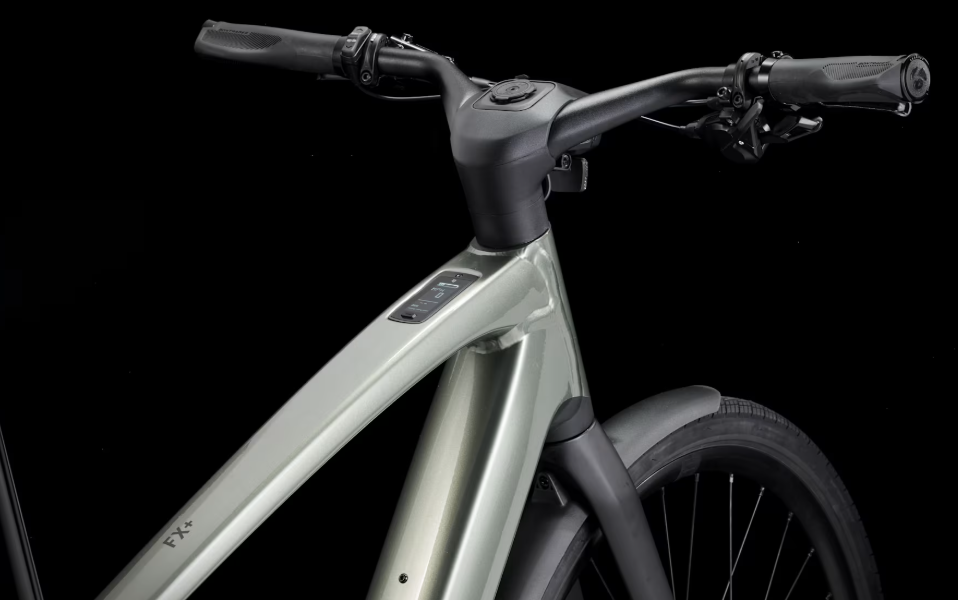

Handlebar |
Bontrager Integrated handlebar/stem, 15mm virtual handlebar rise, 640mm width (S, M), 680mm width (L, XL) |
|
Stem |
Integrated with Bontrager handlebar/stem, 0 degree, 90mm virtual length |
|
Headset |
1-1/8in threadless, sealed cartridge bearings |
|
Saddle |
Bontrager Verse Comp, steel rails, 165mm width |
|
Seatpost |
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length |
|
Grips |
Bontrager Satellite Elite, alloy lock-on |
|
Front Hub |
Formula alloy, centerlock disc, 100x12mm thru-axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
|
Rims |
Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, Presta valve |
|
Spokes |
14g stainless steel, black |
|
Pedals |
Wellgo nylon platform |
|
Exterior Features |

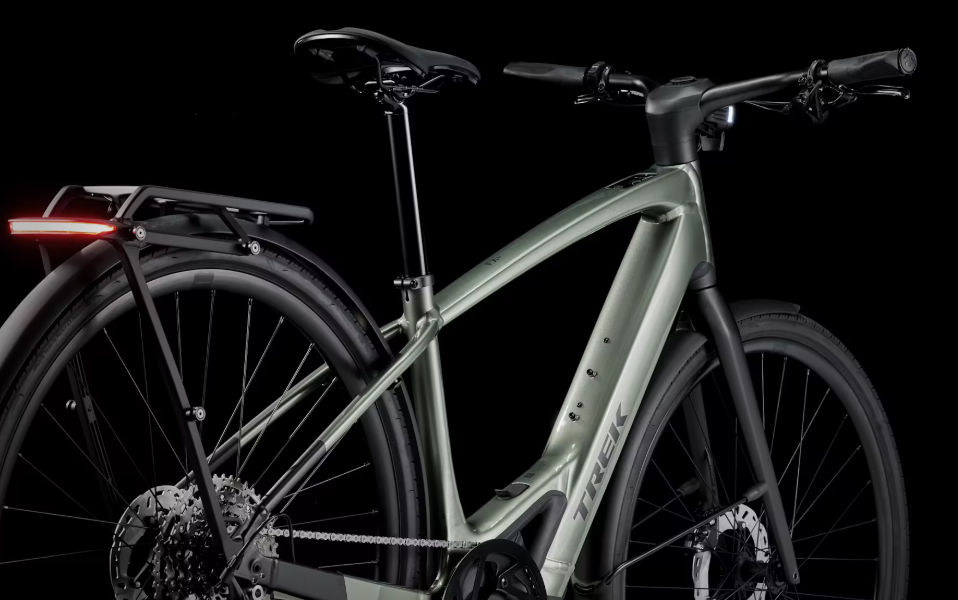

Internal cable routing, rack & fender mounts, kickstand mount, MIK-compatible alloy rear rack, Trek FX+ 7 Rear Fender, Spanninga GLOW XE and Herrmans H-Black MR9-E lights |
|
Weight |
18.65 kg / 41.12 lbs (size M) |
|
Drive Unit |
TQ-HPR50, 50 Nm, 250W maximum continuous rated power, 300W peak power |
|
Battery |
TQ 360Wh integrated battery |
|
Charger |
TQ 4A charger |
|

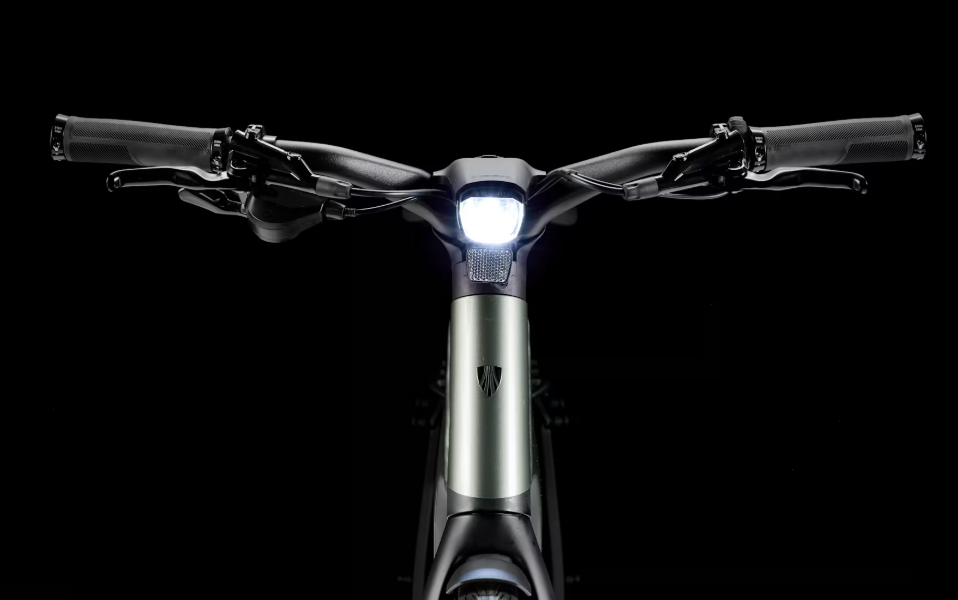

Display |
TQ LED display with Bluetooth & ANT+ connectivity |
|
Certifications |
Class 1 e-bike |
